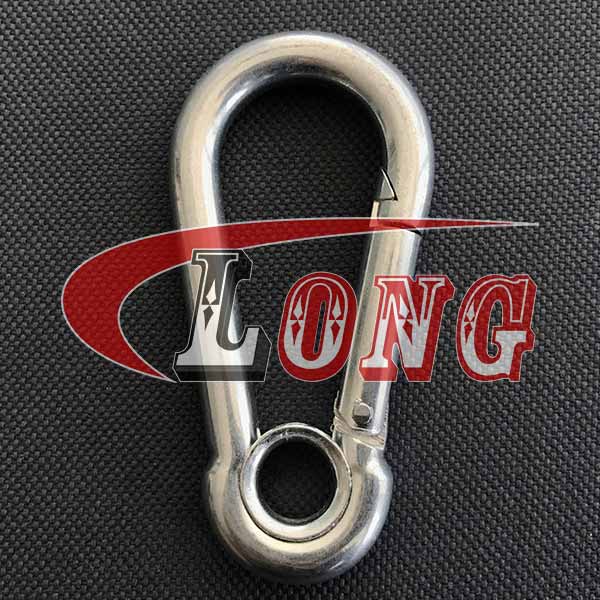

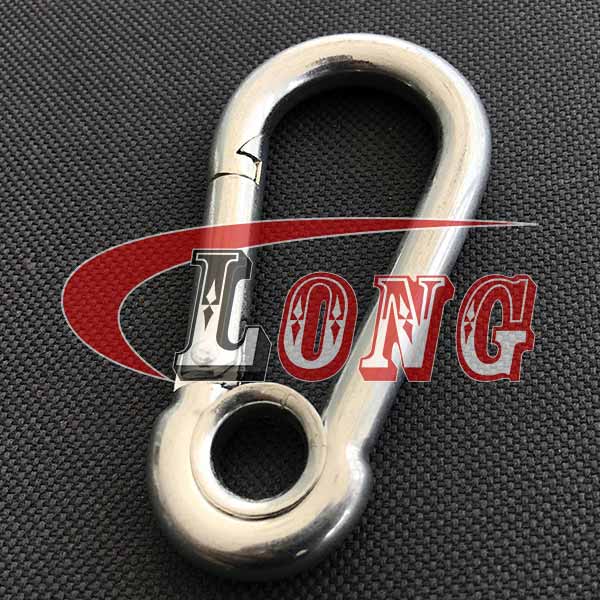

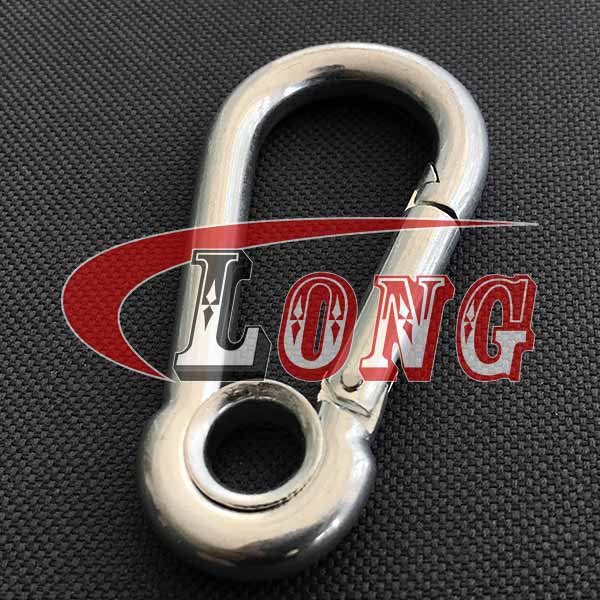

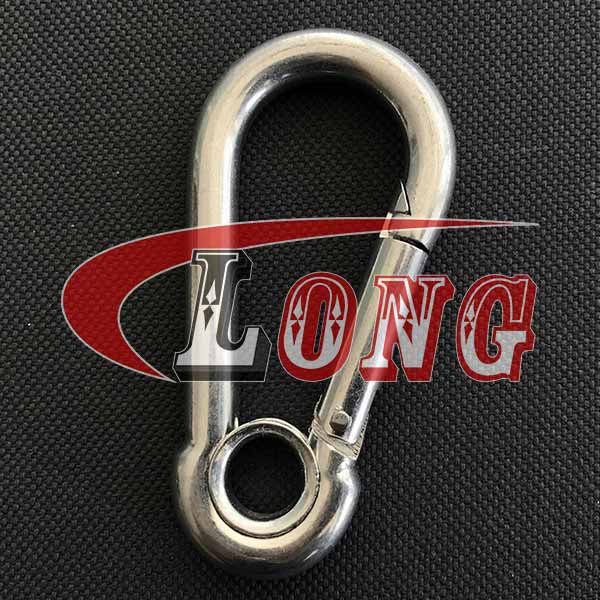

Information of Carbine Hook, Snap Hook DIN5299 Form A

Made by Carbon Steel.
Heat treated and zinc plated for a durable finish.
Fast, easy attachment for permanent or temporary connection.
Not for overhead lifting.

Available Size for Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A:

4×40 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

5×50 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

6×60 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

7×70 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

8×80 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

9×90 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

10×100 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

11×120 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

12×140 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A;

13×160 Carbine Hooks, Snap Hook with Eyelet, Snap Hook DIN5299A.

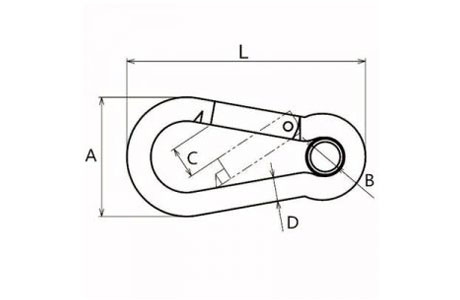

Specifications of Carbine Hook, Snap Hook DIN5299 Form A

Item No.	Size	A	B	C	D	L	W.L.L	N.W.
Carbon Steel	mm	mm	mm	mm	mm	mm	lbs	kgs/100pcs
LG10511C	4X40	20	5	6	4	40	100	0.85
LG10512C	5×50	25	5	7	5	50	160	1.8
LG10513C	6×60	30	5	7	6	60	260	3
LG10514C	7×70	35	7	10	7	70	335	5
LG10515C	8×80	40	10	11	8	80	400	7
LG10516C	9×90	45	10	11	9	90	500	9.8
LG10517C	10×100	50	13	12	10	100	650	14.2
LG10518C	11×120	57	13	19	11	120	700	21
LG10519C	12×140	67	15	20	12	140	800	27.5
LG10520C	13×160	74	17	19	13	160	1300	35.8

China LG Supply offers a wide variety of Regular Wire Hooks.

Carbine Snap Hooks are also available in Stainless Steel Material, This type of finish is normally required for use by the food and beverage industry. It is also an excellent finish for use in applications with extreme exposure to dust, and chemicals environmental (such as salt water).

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China

Contact LG RIGGING NOW
