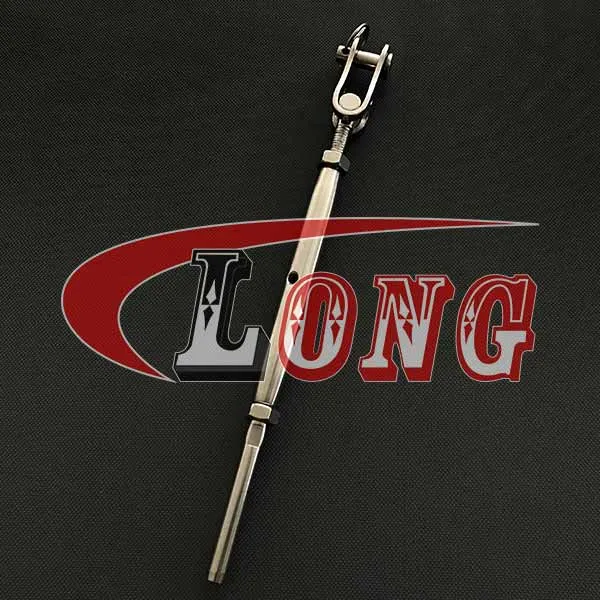

 LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud

 LGRIG® Stainless Steel Rigging Screw Machined Fork/Fork

 LGRIG® Stainless Steel Rigging Screw Machined Fork/Terminal

 LGRIG® Stainless Steel DIN 1480 Eye/Eye Turnbuckle

 LGRIG® Stainless Steel DIN 1480 Hook/Hook Turnbuckle

 LGRIG® Stainless Steel DIN 1480 Turnbuckle Eye/Hook

 LGRIG® Stainless Steel Turnbuckle Body US Type

 LGRIG® Eye & Eye Stainless Steel Turnbuckle

 LGRIG® Stainless Steel Hook and Eye Turnbuckle US Type

 LGRIG® Hook & Hook Stainless Steel Turnbuckle US Type

 LGRIG® Jaw & Eye Stainless Steel Turnbuckle US Type

 LGRIG® Jaw & Jaw Stainless Steel Turnbuckle US Type

 LGRIG® Eye to Hook Turnbuckle Stainless Steel JIS Standard

 LGRIG® Stainless Steel Turnbuckle Eye & Eye Korean Type

 LGRIG® Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle

 LGRIG® Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle

 LGRIG® Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle

 LGRIG® Stainless Steel Drop Forged Jaw & Jaw Turnbuckle US Type for Stainless Turnbuckle

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

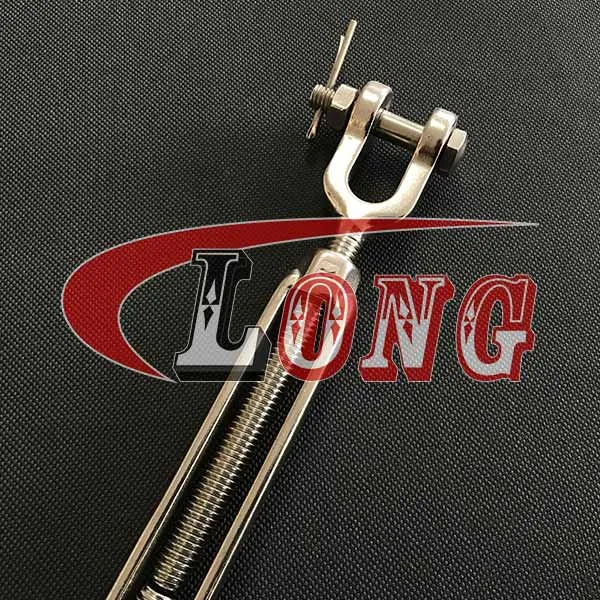

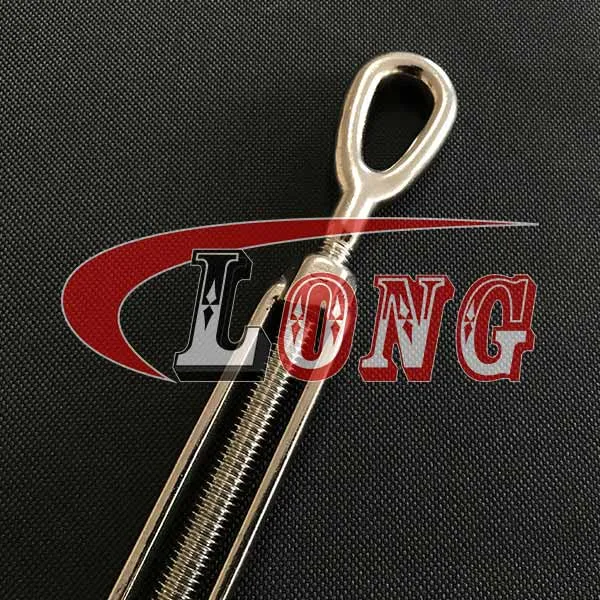

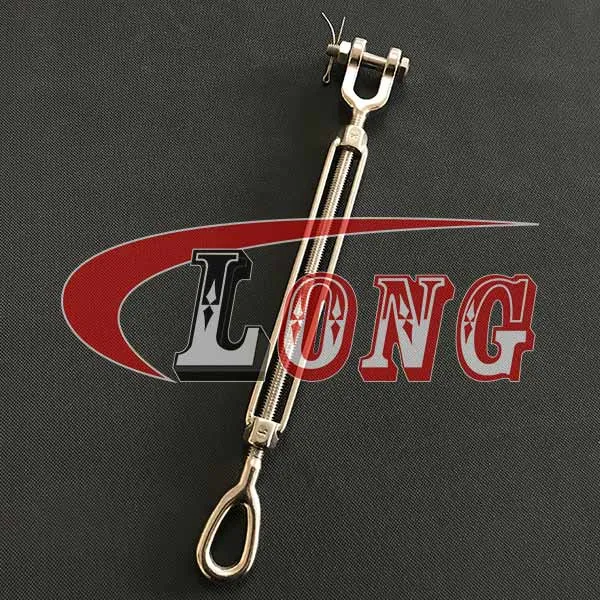

Information of LGRIG® Jaw & Eye Stainless Steel Turnbuckle US Type

Brand	LGRIG®
Standard	Turnbuckle conform to US Federal Specification (ASTM F1145-92 Type 1)
Material	Stainless steel (AISI 304/AISI 316)
Turnbuckle Type	Open Body Turnbuckle US Type
End Fittings	Jaw & Eye
Size	1/4×4", 5/16×4.5", 3/8×6", 1/2×6", 1/2×9", 1/2×12", 5/8×6", 5/8×9", 5/8×12” 3/4×6", 3/4×9", 3/4×12", 7/8×6", 7/8×12", 1×6", 1×12", 1-1/4×12”
Processing	Jaw：Forged Eye: Cast Body：Cast / Forged
Finish	Highly Polishing
Tips	Corrosion Resistant
Country of Origin	China

Specifications of LGRIG® Jaw & Eye Stainless Steel Turnbuckle US Type


Part No.	Size	L	L1	A	B	E	H
Part No.	in.
LGSSUSTJE1/4×4	1/4	4	7.58	0.45	0.32	0.78	0.62
LGSSUSTJE5/16×4.5	5/16	4.5	8.38	0.49	0.43	0.94	0.87
LGSSUSTJE3/8×6	3/8	6	10.7	0.53	0.51	1.12	0.87
LGSSUSTJE1/2×6	1/2	6	11.94	0.67	0.71	1.44	1.06
LGSSUSTJE1/2×9	1/2	9	14.94	0.67	0.71	1.44	1.06
LGSSUSTJE1/2×12	1/2	12	17.94	0.67	0.71	1.44	1.06
LGSSUSTJE5/8×6	5/8	6	13.55	0.81	0.87	1.75	1.31
LGSSUSTJE5/8×9	5/8	9	16.55	0.81	0.87	1.75	1.31
LGSSUSTJE5/8×12	5/8	12	19.55	0.81	0.87	1.75	1.31
LGSSUSTJE3/4×6	3/4	6	15	1.02	0.99	2.09	1.5
LGSSUSTJE3/4×9	3/4	9	18	1.02	0.99	2.09	1.5
LGSSUSTJE3/4×12	3/4	12	21	1.02	0.99	2.09	1.5
LGSSUSTJE7/8×6	7/8	6	16.25	1.18	1.21	2.38	1.75
LGSSUSTJE7/8×12	7/8	12	2225	1.18	1.21	2.38	1.75
LGSSUSTJE1×6	1	6	18.2	1.3	1.37	3	2.06
LGSSUSTJE1×12	1	12	24.2	1.3	1.37	3	2.06
LGSSUSTJE1-1/4×12	1-1/4	12	26.48	1.83	1.37	3.56	2.81
