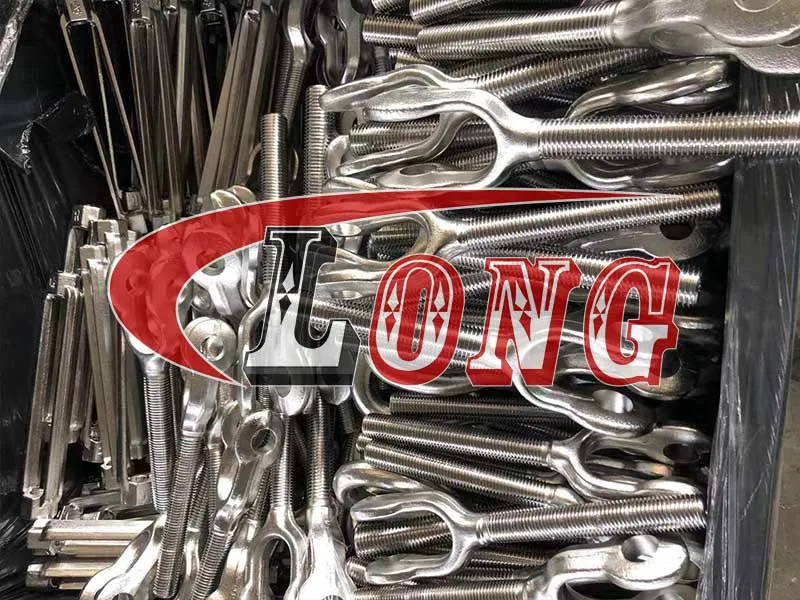

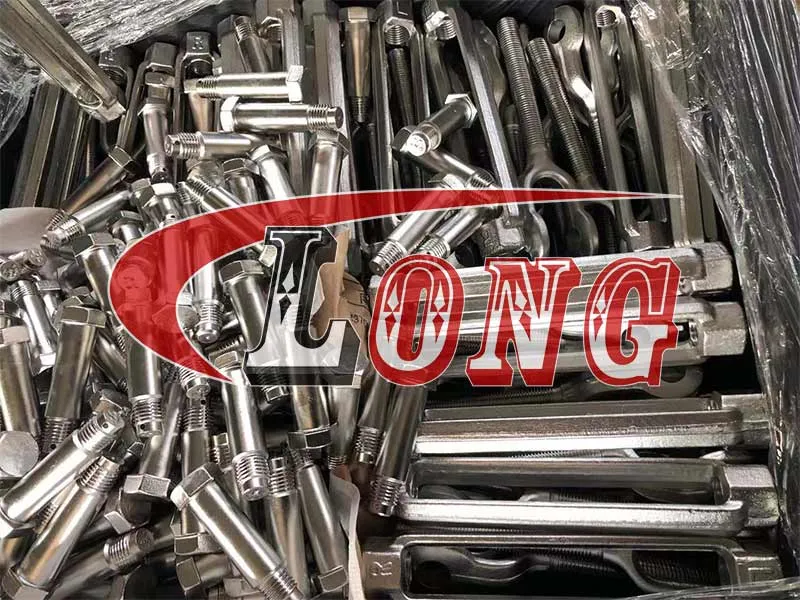

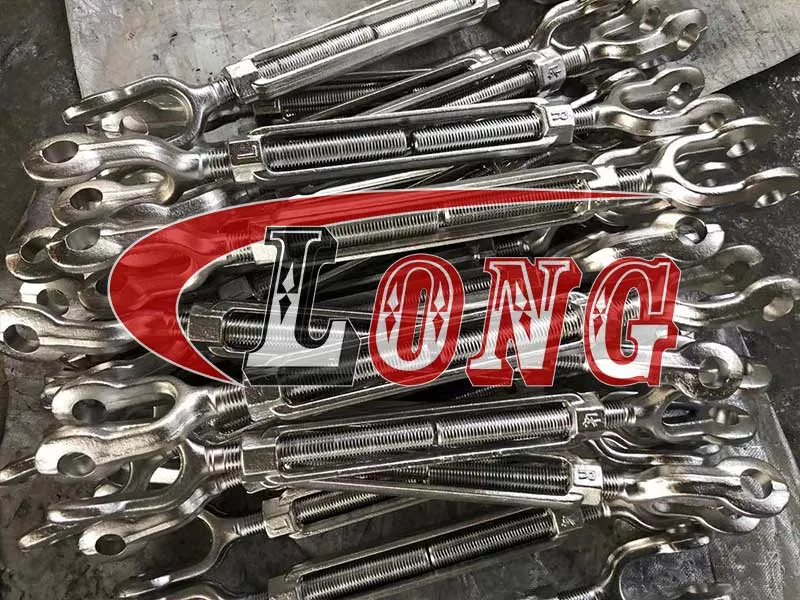

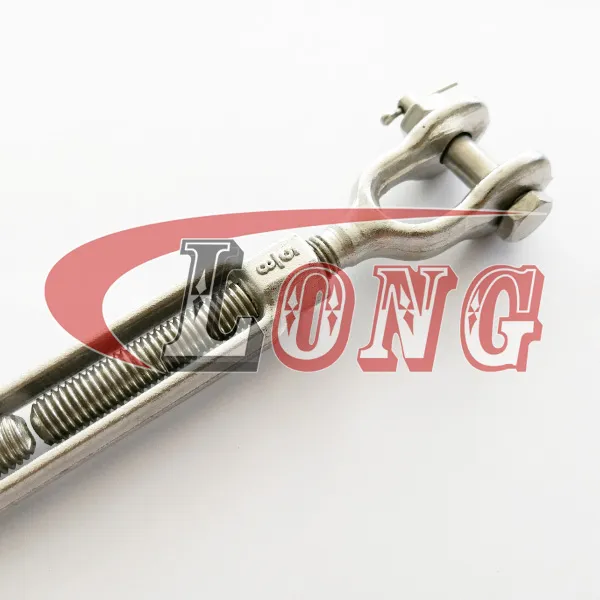

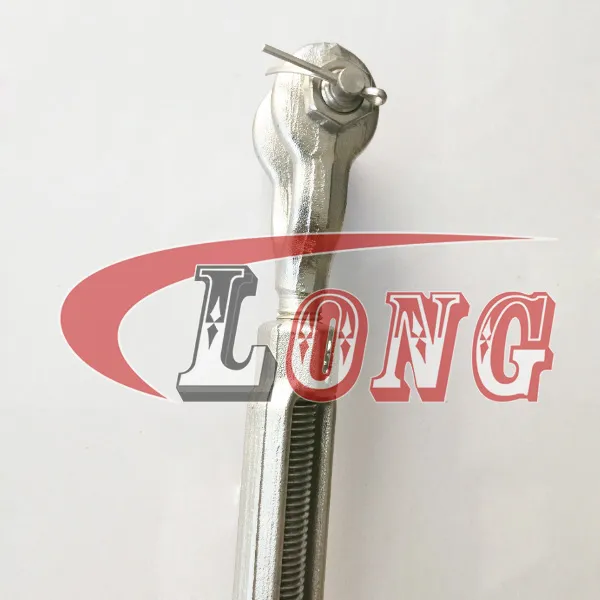

Name: LGRIG® Drop Forged Stainless Steel Jaw & Jaw Turnbuckle US Type
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

 Stainless Steel Drop Forged Lifting Eye Bolt DIN 580

 Lifting Eye Nut DIN 582 Drop Forged Stainless Steel

 Stainless Steel Drop Forged Shoulder Eye Bolt With Collar

 LGRIG® Turnbuckle Body Only Drop Forged Stainless Steel US Type

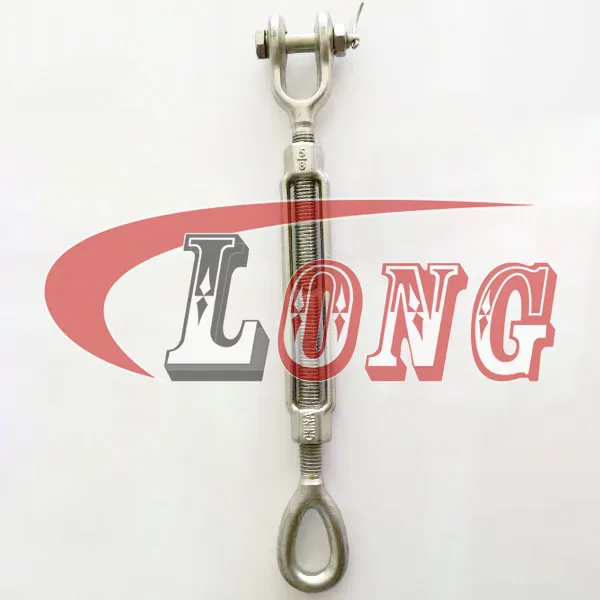

 LGRIG® Drop Forged Stainless Steel Jaw & Eye Turnbuckle US Type

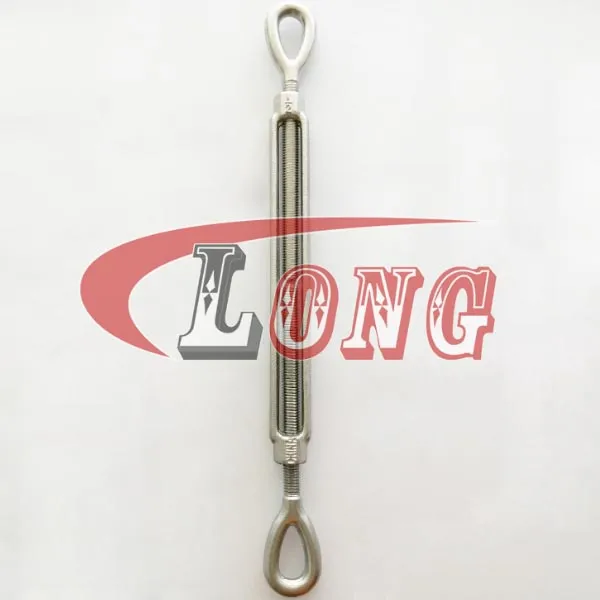

 LGRIG® Drop Forged Stainless Steel Eye & Eye Turnbuckle US Type

 LGRIG® Drop Forged Stainless Steel Jaw & Jaw Turnbuckle US Type

 LGRIG® Drop Forged Wire Rope Clips G450 Stainless Steel US Type

 Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209

 Stainless Steel Forged Chain Shackle Oversized Screw Pin-LG RIGGING®

 Stainless Steel Drop Forged Bow Shackle Oversized Bolt Type Pin

 Forged D Shackle Oversized Bolt Type Pin Stainless Steel G-2150

 Stainless Steel Drop Forged Weld-on D Ring-LG RIGGING®

 Drop Forged Stainless Steel Hammerlock Chain Connector European

 Drop Forged Hammerlock Chain Connector Stainless

 Stainless Steel Drop Forged Master Link-LG RIGGING®

 Stainless Steel Drop Forged Split Chain Connecting Link

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Drop Forged Stainless Steel Jaw & Jaw Turnbuckle US Type

Brand	LGRIG®
Standard	Drop Forged Turnbuckle conform to US Federal Specification
Turnbuckle Type	Drop Forged Open Body Turnbuckle US Type
End Fittings	Jaw & Jaw
Material	Stainless steel 304 or 316 Turnbuckle
Size	1/4×4, 5/16×4 1/2, 3/8×6, 1/2×6, 1/2×9, 1/2×12, 5/8×6, 5/8×9, 5/8×12, 3/4×6 3/4×9, 3/4×12, 3/4×18, 7/8×12, 7/8×18, 1×6, 1×12, 1×18, 1×24, 1 1/4×12 1 1/4×18, 1 1/4×24, 1 1/2×12, 1 1/2×18, 1 1/2×24, 1 3/4×18, 1 3/4×24, 2×24, 2 1/2×24, 2 3/4×24
Processing	Drop Forged
Tips	Corrosion Resistant
Country of Origin	China

Specifications of LGRIG® Drop Forged Stainless Steel Jaw & Jaw Turnbuckle US Type


Part No.	Thread Dia & Take Up	W.L.L.	U.W	Dimensions
		W.L.L.	U.W	B	E	G	J	K	M	N
		lbs	lbs/pc	B	Closed	G	Open	Closed	Open	Closed
LGSSDFTJJUS01	1/4×4	500	0.37	0.45	1.66	0.64	11.19	7.19	12.18	8.18
LGSSDFTJJUS02	5/16×4 1/2	800	0.56	0.5	2.02	0.87	13.07	8.57	14.12	9.62
LGSSDFTJJUS03	3/8×6	1200	0.85	0.53	2.11	0.85	16.25	10.25	17.5	11.5
LGSSDFTJJUS04	1/2×6	2200	1.82	0.64	3.22	1.07	18.65	12.65	20.14	14.14
LGSSDFTJJUS05	1/2×9	2200	2.29	0.64	3.2	1.07	24.94	15.94	26.43	17.43
LGSSDFTJJUS06	1/2×12	2200	2.71	0.64	3.2	1.07	30.94	18.94	32.43	20.43
LGSSDFTJJUS07	5/8×6	3500	3.21	0.79	3.9	1.32	19.74	13.74	21.82	15.82
LGSSDFTJJUS08	5/8×9	3500	3.95	0.79	3.89	1.32	26.08	17.08	28.16	19.16
LGSSDFTJJUS09	5/8×12	3500	4.58	0.79	3.89	1.32	32.08	20.08	34.16	22.16
LGSSDFTJJUS10	3/4×6	5200	4.8	0.97	4.71	1.52	21.09	15.09	23.68	17.68
LGSSDFTJJUS11	3/4×9	5200	5.85	0.97	4.68	1.52	27.49	18.49	30.08	21.08
LGSSDFTJJUS12	3/4×12	5200	6.72	0.97	4.68	1.52	33.49	21.49	36.08	24.08
LGSSDFTJJUS13	3/4×18	5200	8.45	0.97	4.71	1.52	45.49	27.49	48.08	30.08
LGSSDFTJJUS14	7/8×12	7200	9.37	1.16	5.5	1.77	34.65	22.65	37.62	25.62
LGSSDFTJJUS15	7/8×18	7200	11.8	1.16	5.5	1.77	47.12	29.12	50.09	32.09
LGSSDFTJJUS16	1×6	10000	10.4	1.34	6.09	2.05	23.82	17.82	27.18	21.18
LGSSDFTJJUS17	1×12	10000	13.8	1.34	6.09	2.05	35.82	23.82	39.18	27.18
LGSSDFTJJUS18	1×18	10000	17.1	1.34	6.09	2.05	47.82	29.82	51.18	33.18
LGSSDFTJJUS19	1×24	10000	21	1.34	6.06	2.05	60.42	36.42	63.78	39.78
LGSSDFTJJUS20	1 1/4×12	15200	21.9	1.84	8.09	2.82	39.37	27.37	43.58	31.58
LGSSDFTJJUS21	1 1/4×18	15200	25.9	1.84	8.09	2.82	51.37	33.37	55.58	37.58
LGSSDFTJJUS22	1 1/4×24	15200	29.8	1.84	8.09	2.82	63.93	39.93	68.14	44.14
LGSSDFTJJUS23	1 1/2×12	21400	32.6	2.06	8.93	2.81	40.76	28.76	45.68	33.68
LGSSDFTJJUS24	1 1/2×18	21400	38	2.06	8.93	2.81	52.76	34.76	57.68	39.68
LGSSDFTJJUS25	1 1/2×24	21400	43.5	2.06	8.93	2.81	65.38	41.38	70.3	46.3
LGSSDFTJJUS26	1 3/4×18	28000	53.5	2.6	9.36	3.35	53.35	35.35	59.16	41.16
LGSSDFTJJUS27	1 3/4×24	28000	61.1	2.6	9.36	3.35	65.35	41.35	71.16	47.16
LGSSDFTJJUS28	2×24	37000	96.3	2.62	11.8	3.74	69.64	45.64	76.72	52.72
LGSSDFTJJUS29	2 1/2×24	60000	167	3.06	13.26	4.44	72.97	48.97	82.18	58.18
LGSSDFTJJUS30	2 3/4×24	75000	199	3.69	14.92	4.19	74.75	50.75	85.5	61.5
