Information of LGRIG® Coil Tension Snap Pin Zinc Plated

Brand	LGRIG®
Material	Super Mild Steel Stainless Steel AISI304 is also available
Processing	Stamped
Finish	Electric Galvanized
Size	1/4" x 1-3/4", 1/4" x 2-1/8", 1/4" x 2-1/2", 1/4" x 3", 1/4" x 4", 5/16" x 2-1/4", 5/16" x 2-3/4", 5/16" x 3", 5/16" x 4", 3/8" x 2-1/4", 3/8" x 2-1/2", 3/8" x 3", 3/8" x 4"
Tips	Special specification and marks can be made according to customers' requirements
Country of Origin	China

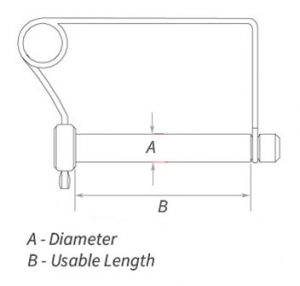

Specifications of LGRIG® Coil Tension Snap Pin Zinc Plated


Part No.	Pin Dia	Usable Length	Wire Dia	Loop Clearance	Head Dia	Head Height	Pcs/Bag	Wgt(lbs) /Bag
LGSPZP1475	1/4	1 3/4	0.105	1-1/2	1/2	5/16	25	2
LGSPZP1428	1/4	2 1/8	0.105	1-1/2	1/2	5/16	25	2
LGSPZP1425	1/4	2 1/2	0.105	1-1/2	1/2	5/16	25	2
LGSPZP143	1/4	3	0.105	1-1/2	1/2	5/16	25	2
LGSPZP144	1/4	4	0.105	1-1/2	1/2	5/16	25	2
LGSPZP51624	5/16	2 1/4	0.105	1-1/2	1/2	5/16	25	3
LGSPZP51675	5/16	2 3/4	0.105	1-1/2	1/2	5/16	25	3
LGSPZP5163	5/16	3	0.105	1-1/2	1/2	5/16	25	3
LGSPZP5164	5/16	4	0.105	1-1/2	1/2	5/16	25	4
LGSPZP3824	3/8	2 1/4	0.105	1-1/2	5/8	5/16	25	3
LGSPZP3825	3/8	2 1/2	0.105	1-1/2	5/8	5/16	25	3
LGSPZP383	3/8	3	0.105	1-1/2	5/8	5/16	25	4
LGSPZP384	3/8	4	0.105	1-1/2	5/8	5/16	25	5
