Information of LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body

Brand	LGRIG®
Material	Cold-drawn Seamless Steel tube C1020
Size	M6 M8 M10 M12 M16 M20 M22 M24 M28 M32 M36 M38 M45 M50
Safe Factor	Proof Load is 2.5 times Working Load Limit. Ultimate Load is 5 times the Working Load Limit
Finish	Hot Dip Galvanized / Electric Galvanized / Powder Coated / Self-Colored
Important Notes	Straight or in-line pull only
Country of Origin	China

Specifications of LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body

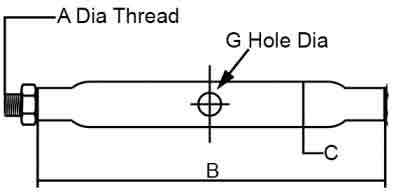

Part No.	Size	SWL	A	B	C	G	Unit Weight
Part No.	Size	Tons	Screw Dia. (mm)	Length of Body (mm)	Body Dia. (mm)	Hole Dia. (mm)	KGS
LGGRSBO06	M6	0.1	6	102	12	3	0.11
LGGRSBO08	M8	0.15	8	110	15	4	0.23
LGGRSBO10	M10	0.375	10	152	21	5	0.28
LGGRSBO12	M12	0.5	12	175	27	6	0.8
LGGRSBO16	M16	0.75	16	229	27	10	1.4
LGGRSBO20	M20	1.2	20	229	33	12	2
LGGRSBO22	M22	1.6	22	305	33	15	3.5
LGGRSBO24	M24	2	24	325	42	16	4
LGGRSBO28	M28	2.8	28	356	48	18	4.5
LGGRSBO32	M32	3.75	32	381	48	20	6.5
LGGRSBO36	M36	4.25	36	381	60	22	8
LGGRSBO38	M38	5	38	406	60	24	11
LGGRSBO45	M45	7.2	45	406	70	24	*
LGGRSBO50	M50	10	50	406	76	26	*
