LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud

LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud, also known as Bottle Screw, Rigging Screw and Pipe Body Turnbuckle, Closed Body Turnbuckle.

The Rigging Screw Toggle Terminal, offering exclusive durability and smooth operation for tensioning applications.

Its open bronze body helps prevent thread seizure, while laser-engraved thread size, the Blue Wave logo, and left-hand thread markings ensure clear identification and correct assembly.

Made from 316 marine-grade stainless steel, the terminal includes a flexible toggle end, locking nuts, and a removable clevis pin for secure adjustments.

It is intended for creating and maintaining tension in wire assemblies, such as guard rails, architectural rigging, and wire balustrades, by holding both end fittings stationary while turning the barrel to lengthen or shorten the unit.

Note that this terminal must be installed by mechanically pressing the stud ends onto the wire (hand crimpers are not sufficient) and is not rated for lifting applications; all load figures are for guidance only.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
LGRIG® Stainless Steel Eye to Eye Turnbuckle Commercial European Type
LGRIG® Stainless Steel Commercial Turnbuckle Hook and Hook European Type
LGRIG® Stainless Steel Hook Eye Turnbuckle European Type
LGRIG® Jaw Jaw Turnbuckle Stainless Steel European Type
LGRIG® Stainless Steel Rigging Screw Jaw & Jaw
LGRIG® Stainless Steel Rigging Screw Jaw to Swage Stud
LGRIG® Stainless Steel Rigging Screw Swage Stud & Swage Stud
LGRIG® Stainless Steel Rigging Screw Body
LGRIG® Stainless Steel Rigging Screw Toggle/Toggle
LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud
LGRIG® Stainless Steel Rigging Screw Machined Fork/Fork
LGRIG® Stainless Steel Rigging Screw Machined Fork/Terminal
LGRIG® Stainless Steel DIN 1480 Eye/Eye Turnbuckle
LGRIG® Stainless Steel DIN 1480 Hook/Hook Turnbuckle
​LGRIG® Stainless Steel DIN 1480 Turnbuckle Eye/Hook
LGRIG® Stainless Steel Turnbuckle Body US Type
LGRIG® Eye & Eye Stainless Steel Turnbuckle
LGRIG® Stainless Steel Hook and Eye Turnbuckle US Type
LGRIG® Hook & Hook Stainless Steel Turnbuckle US Type
LGRIG® Jaw & Eye Stainless Steel Turnbuckle US Type
LGRIG® Jaw & Jaw Stainless Steel Turnbuckle US Type
LGRIG® Eye to Hook Turnbuckle Stainless Steel JIS Standard
LGRIG® Stainless Steel Turnbuckle Eye & Eye Korean Type
LGRIG® Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
LGRIG® Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle
LGRIG® Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle
LGRIG® Stainless Steel Drop Forged Jaw & Jaw Turnbuckle US Type for Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud

Brand

LGRIG®

Material

Type 316 Stainless Steel Rigging Screw

Turnbuckle Type

Closed Body Rigging Screw

End Fittings

Toggle/Swage Stud(Terminal, Swage)

Size

M6, M8, M10, M12, M16, M20 Rigging Screw

Processing

Body: Machining

Toggle：Stamping/Machining/Welding

Swage Stud: Machining/stamping

Finish

Highly Polishing

Tips

Corrosion Resistant

Country of Origin

China

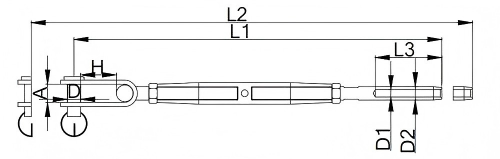

Specifications of LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud


Part No.

Thread Size

Wire

A

D

H

D1

D2

L3

L1

L2

KG/100

B.L.KG.

mm

LGSSRSTS0603

M6

3

7

6

15

3.3

6.35

39

180

250

8.5

1250

LGSSRSTS0604

M6

4

7

6

15

4.3

7.5

45

190

260

9

1250

LGSSRSTS0804

M8

4

10

8

20

4.3

7.5

45

210

285

16

2350

LGSSRSTS0805

M8

5

10

8

20

5.3

9

52

215

290

16.5

2350

LGSSRSTS1005

M10

5

12

9

25

5.3

9

52

250

340

31

3500

LGSSRSTS1006

M10

6

12

9

25

6.4

12.6

64

265

355

35

3500

LGSSRSTS1206

M12

6

13

12

30

6.4

12.6

64

300

410

54

5100

LGSSRSTS1208

M12

8

13

12

30

8.4

16

80

320

430

60

5100

LGSSRSTS1608

M16

8

17

16

40

8.4

16

80

390

530

108

8000

LGSSRSTS1610

M16

10

17

16

40

10.5

18

90

400

540

111

8000

LGSSRSTS2010

M20

10

20

19

45

10.5

18

90

450

590

172

13000

LGSSRSTS2012

M20

12

20

19

45

12.6

20

105

465

605

180

13000


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Stainless Turnbuckle

LGRIG® Stainless Steel Hook and Eye Turnbuckle US Type
LGRIG® Stainless Steel Hook and Eye Turnbuckle US Type
LGRIG® Stainless Steel Rigging Screw Body
LGRIG® Stainless Steel Rigging Screw Body
LGRIG® Stainless Steel Turnbuckle Eye & Eye Korean Type
LGRIG® Stainless Steel Turnbuckle Eye & Eye Korean Type
LGRIG® Stainless Steel Turnbuckle Body US Type
LGRIG® Stainless Steel Turnbuckle Body US Type
LGRIG® Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
LGRIG® Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle
LGRIG® Stainless Steel Hook Eye Turnbuckle European Type
LGRIG® Stainless Steel Hook Eye Turnbuckle European Type
LGRIG® Stainless Steel Commercial Turnbuckle Hook and Hook European Type
LGRIG® Stainless Steel Commercial Turnbuckle Hook and Hook European Type
LGRIG® Eye to Hook Turnbuckle Stainless Steel JIS Standard
LGRIG® Eye to Hook Turnbuckle Stainless Steel JIS Standard
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
