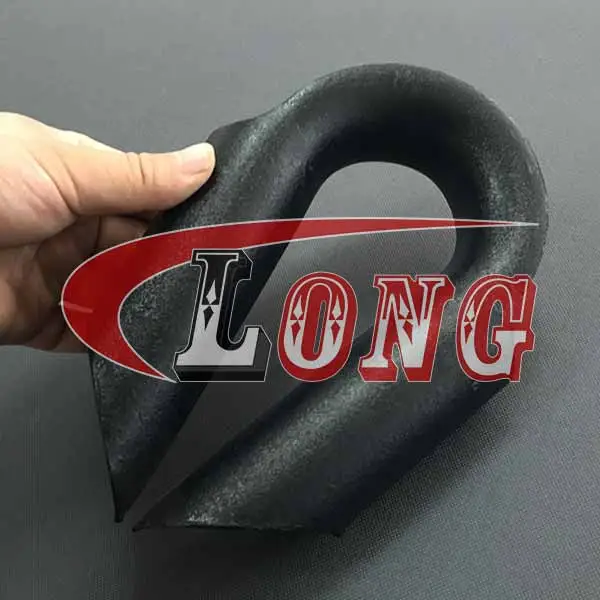

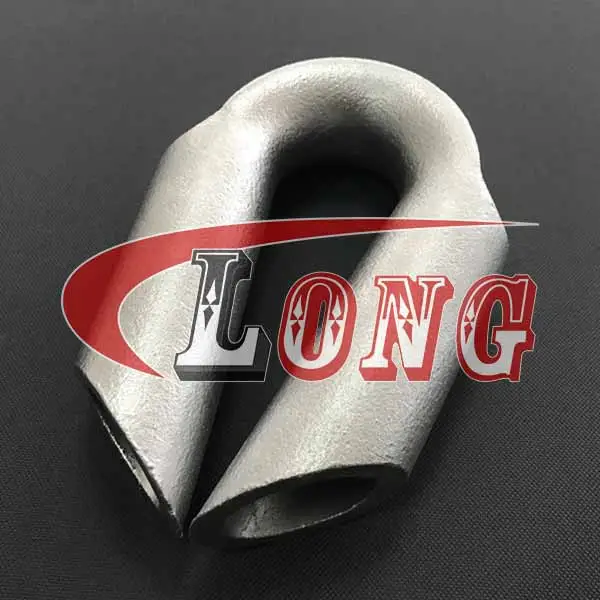

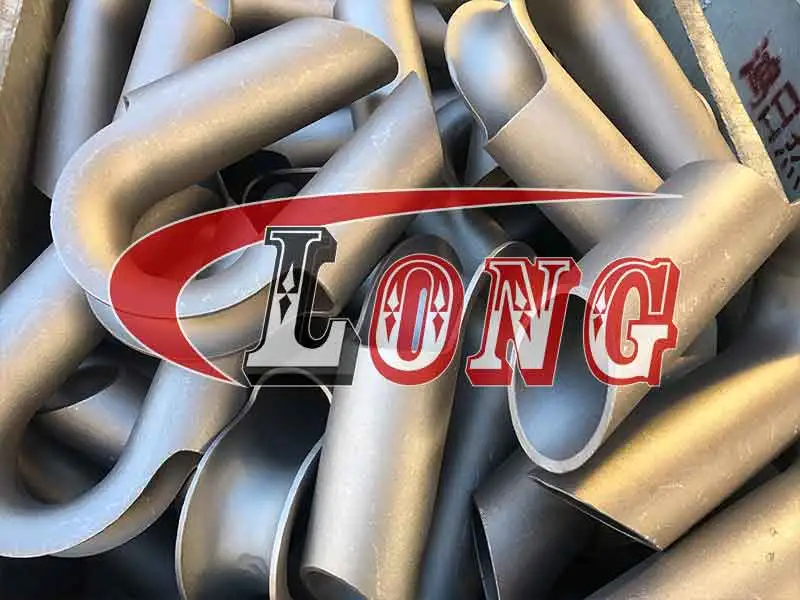

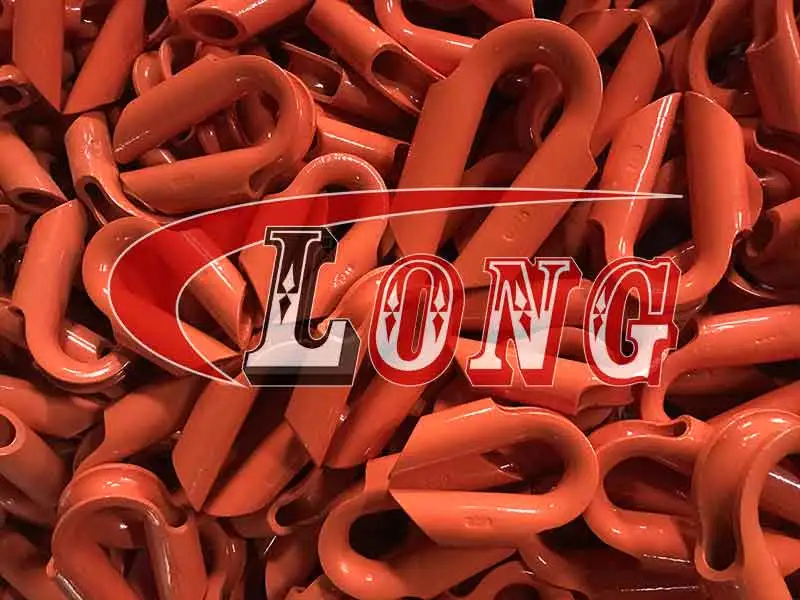

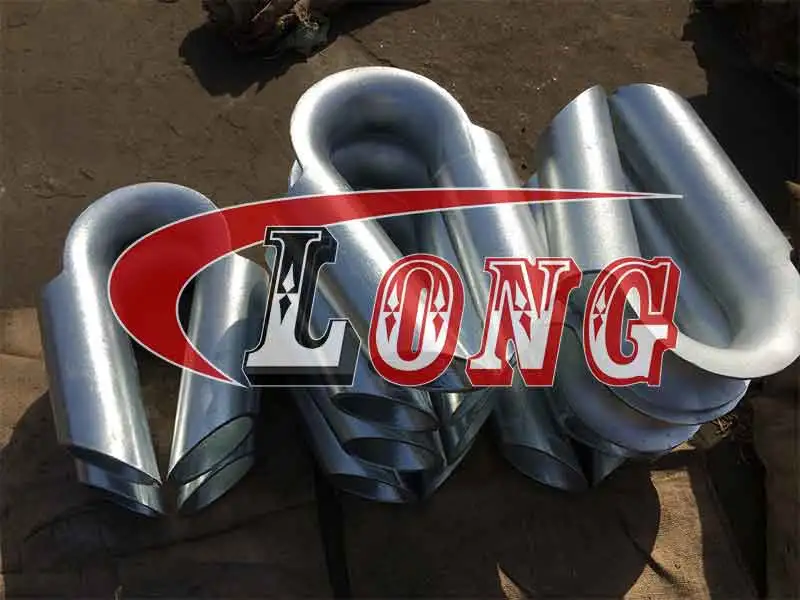

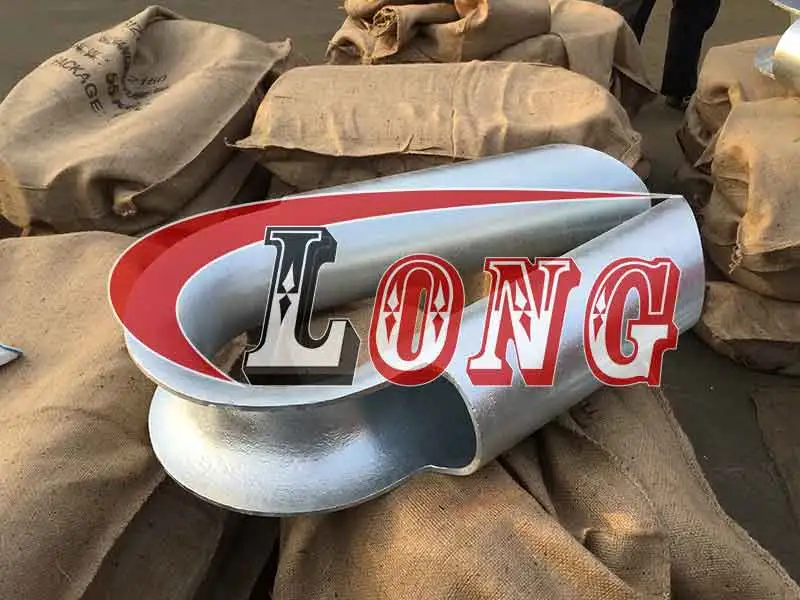

Information of Tubular Thimble Galvanized without Gusset -LG Rigging®

Brand	LG RIGGING®
Material	Superior Carbon Steel
Processing	Machining, Stamping
Finish	Zinc Plated, Hot Dip Galvanized, Powder Coated
Size	G210, G212, G215, G217, G219, G222, G225, G228, G230, G235, G240, G245, G250, G255, G260 G265, G270, G275, G285, G295, G2105, G2110, G2120, G2125, G2140
for Wire	10mm, 12mm, 15mm, 17mm, 19mm, 22mm, 25mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm 55mm, 60mm, 65mm, 70mm, 75mm, 88mm, 94mm, 107mm, 112mm, 120mm,127mm, 140mm
Tips	Supplied in open finish or with welded gusset plate

Specifications of Tubular Thimble Galvanized without Gusset -LG Rigging®

Specifications of Tubular Thimble Galvanized without Gusset

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Rope diameter (mm)	Weight (kg)
LGTTG210	10	90	23	16	6	8	0.18
LGTTG212	12	90	23	20	8	10	0.24
LGTTG215	15	105	27	25	10	12	0.41
LGTTG217	17	115	27	25	10	14	0.39
LGTTG219	19	120	32	29	12	16	0.60
LGTTG222	22	140	35	32	15	18	0.75
LGTTG225	25	180	45	37.6	16	22	1.40
LGTTG228	28	180	45	42	16	24	1.75
LGTTG230	30	195	47	44	18	26	2.2
LGTTG235	35	215	60	49	21	32	2.6
LGTTG240	40	240	65	54	23	35	2.95
LGTTG245	45	260	70	60	27	38	3.85
LGTTG250	50	280	75	64	27	44	4.4
LGTTG255	55	298	85	69	29	50	5.1
LGTTG260	60	300	88	75	30	54	5.9
LGTTG265	65	312	88	79	31	56	6.6
LGTTG270	70	332	90	84	31.5	60	7.1
LGTTG275	75	350	94	90	32	65	8.0
LGTTG285	88	450	130	108	45	72	20.1
LGTTG295	94	500	150	114	50	80	24.8
LGTTG2105	107	550	190	127	52	92	30.4
LGTTG2110	112	600	200	140	70	96	50.4
LGTTG2120	120	650	220	152	76	104	68.8
LGTTG2125	127	660	220	159	78	110	70.0
LGTTG2140	140	750	240	180	90	115	110.0
