Information of LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye

Brand	LGRIG®
Material	Body: Cold-drawn Seamless Steel tube C1020 Eye: C1045/C1020
Size	M6, M8, M10, M12, M16, M20, M22, M24, M28, M32, M36, M38
Safe Factor	Proof Load is 2.5 times Working Load Limit. Ultimate Load is 5 times the Working Load Limit
Processing	Quenched and Tempered
Finish	Hot Dip Galvanized / Electric Galvanized / Self-Colored
Important Notes	Straight or in-line pull only
Country of Origin	China

Specifications of LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye

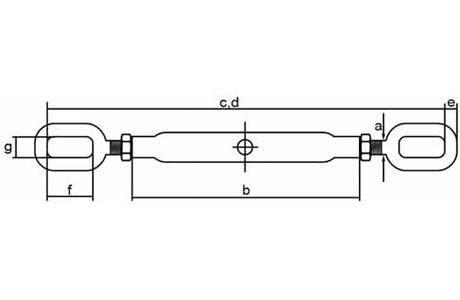

Part No.	Size	W.L.L.	Dimension(mm)
		W.L.L.	a	b	c	d	e	f	g	weight
		Tons	mm	mm	mm	mm	mm	mm	mm	kgs/100
LGGRSEE06	M6	0.2	6	100	165	245	5.5	11	11	0.13
LGGRSEE08	M8	0.32	8	108	178	261	6	12	12	0.2
LGGRSEE10	M10	0.5	10	125	210	308	8.5	13	13	0.6
LGGRSEE12	M12	0.7	12	195	325	484	11	30	15	0.8
LGGRSEE16	M16	1.2	16	230	380	564	12	40	20	1.4
LGGRSEE20	M20	1.5	20	270	455	673	16	50	24	2.4
LGGRSEE22	M22	2.2	22	295	495	736	16	50	24	3
LGGRSEE24	M24	3.2	24	325	545	806	19	56	28	4
LGGRSEE28	M28	4.8	33	370	665	961	29	70	35	9
LGGRSEE32	M32	6	39	400	725	1032	34	80	40	11.5
LGGRSEE36	M36	8.5	45	400	760	1050	30	90	45	20.8
LGGRSEE38	M38	11	48	400	820	1110	35	100	45	24
