Information of LGRIG® Stainless Steel Lock Pin Round Wire Tab Pin

Brand	LGRIG®
Material	Stainless Steel AISI304 snapper pin with tab Superior Carbon Steel is also available
Processing	Stamped
Finish	Highly Polished
Size	1/4"×1-3/8", 1/4"×1-3/4", 1/4"×2-1/4", 1/4"×2-1/2", 1/4"×2-1/2" 5/16"×1-3/8", 5/16"×1-3/4", 5/16"×2-1/4", 5/16"×2-1/2", 5/16"×2-1/2" 5/16"×3", 3/8"×1-3/8", 3/8"×1-3/4", 3/8"×2-1/4", 3/8"×2-1/2" 3/8"×2-1/2", 3/8"×3", 1/2"×3"
Tips	Special specification and marks can be made according to customers' requirements
Country of Origin	China

Specifications of LGRIG® Stainless Steel Lock Pin Round Wire Tab Pin

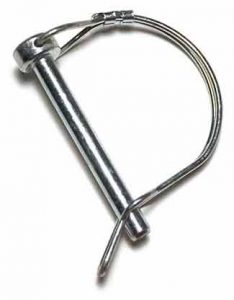

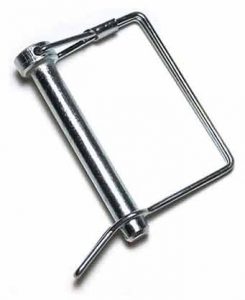

drawing-wire-lock-pin-tab-round-stainless-steel-lgrig.jpg drawing-wire-lock-pin-tab-square-stainless-steel-lgrig.jpg

Part No.	Pin dia	Shank length	Usable length	Wire dia	Wire clearance	Head dia	Handle type	Pcs/bag	Wgt(lbs) /bag
LGSSTWLP010	1/4	1-5/8	1-3/8	0.091	1-5/8	9/16	RD	25	2
LGSSTWLP012	1/4	2	1-3/4	0.091	1-5/8	9/16	RD	25	2
LGSSTWLP014	1/4	2-1/2	2-1/4	0.091	1-5/8	9/16	SQ	25	2
LGSSTWLP015	1/4	2-1/2	2-1/4	0.091	1-5/8	9/16	RD	25	2
LGSSTWLP016	1/4	2-3/4	2-1/2	0.091	1-3/4	9/16	SQ	25	2
LGSSTWLP020	5/16	1-5/8	1-3/8	0.091	1-1/2	5/8	RD	25	2
LGSSTWLP022	5/16	2	1-3/4	0.091	1-1/2	5/8	RD	25	2
LGSSTWLP024	5/16	2-1/2	2-1/4	0.091	1-9/16	5/8	SQ	25	3
LGSSTWLP025	5/16	2-3/4	2-1/2	0.091	1-11/16	5/8	RD	25	3
LGSSTWLP026	5/16	2-3/4	2-1/2	0.091	1-11/16	5/8	SQ	25	3
LGSSTWLP028	5/16	3-1/4	3	0.091	1-11/16	5/8	SQ	25	4
LGSSTWLP030	3/8	1-5/8	1-3/8	0.091	1-1/2	5/8	RD	25	3
LGSSTWLP032	3/8	2	1-3/4	0.091	1-1/2	5/8	RD	25	3
LGSSTWLP034	3/8	2-1/2	2-1/4	0.091	1-1/2	5/8	SQ	25	4
LGSSTWLP035	3/8	2-3/4	2-1/2	0.091	1-5/8	5/8	RD	25	4
LGSSTWLP036	3/8	2-3/4	2-1/2	0.091	1-5/8	5/8	SQ	25	4
LGSSTWLP038	3/8	3-1/4	3	0.091	1-5/8	5/8	SQ	25	3
LGSSTWLP040	1/2	3-1/4	3	0.091	1-5/8	3/4	SQ	25	4
