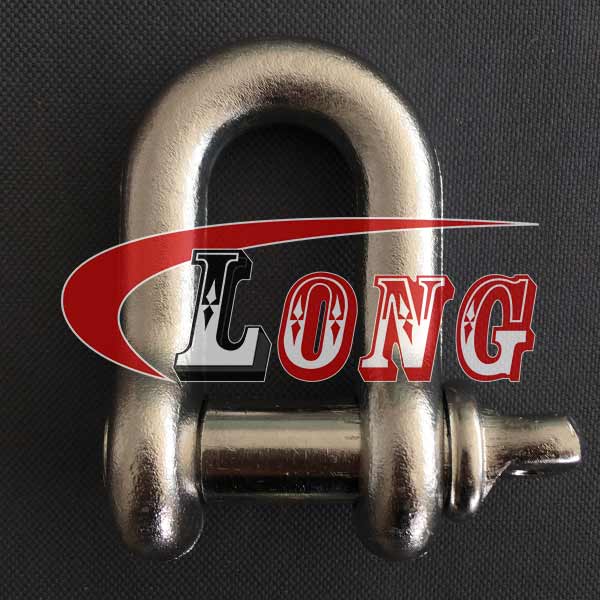

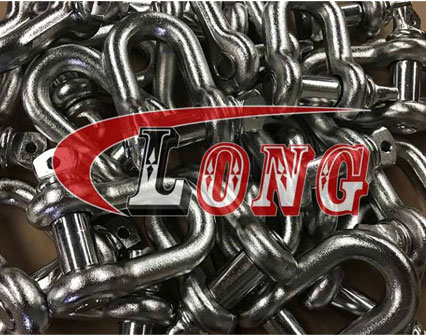

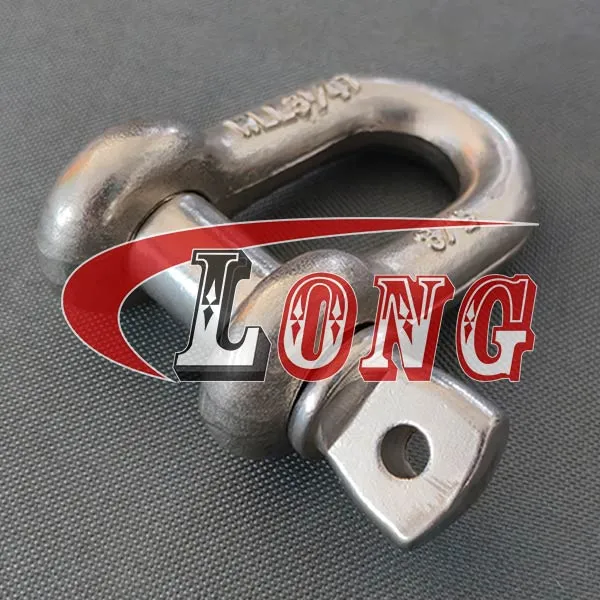

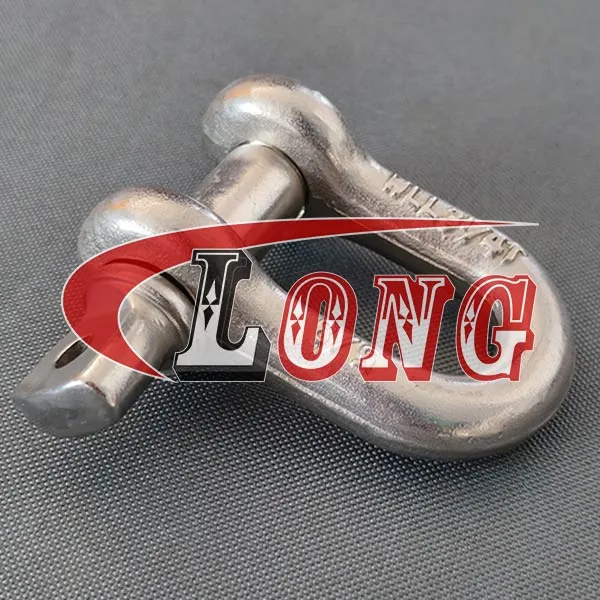

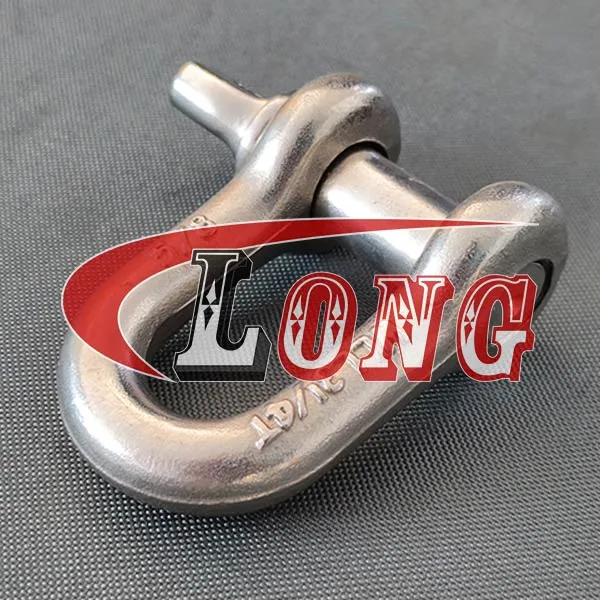

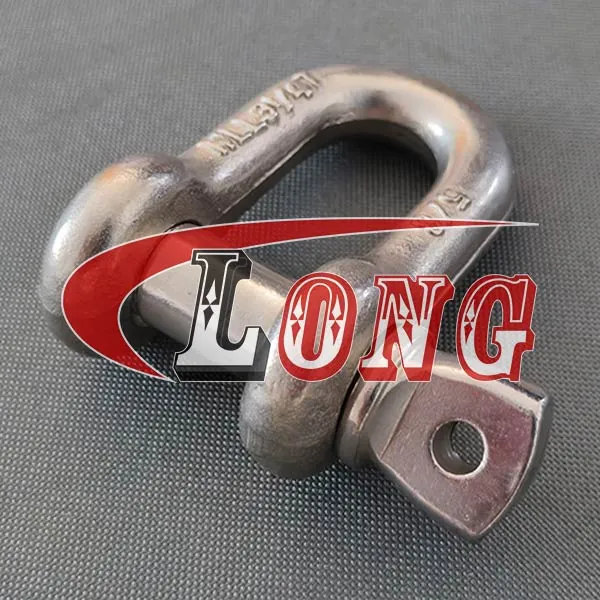

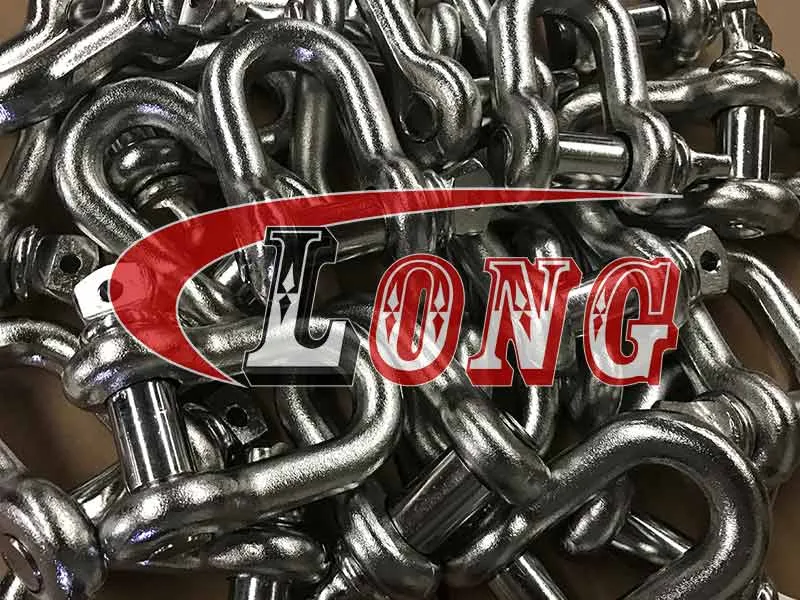

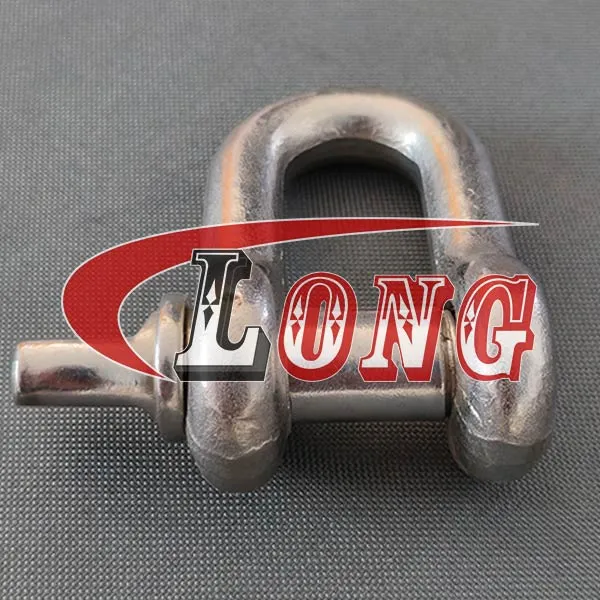

Name: LGRIG® Stainless Steel Drop Forged Screw Pin Chain Shackle
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless Chains 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

 LGRIG® Stainless Steel Drop Forged Lifting Eye Bolt DIN 580

 LGRIG® Lifting Eye Nut DIN 582 Drop Forged Stainless Steel

 LGRIG® Stainless Steel Drop Forged Shoulder Eye Bolt With Collar

 LGRIG® Turnbuckle Body Only Drop Forged Stainless Steel US Type

 LGRIG® Drop Forged Stainless Steel Jaw & Eye Turnbuckle US Type

 LGRIG® Drop Forged Stainless Steel Eye & Eye Turnbuckle US Type

 LGRIG® Drop Forged Stainless Steel Jaw & Jaw Turnbuckle US Type

 LGRIG® Drop Forged Wire Rope Clips G450 Stainless Steel US Type

 LGRIG® Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209

 LGRIG® Stainless Steel Drop Forged Screw Pin Chain Shackle

 LGRIG® Stainless Steel Drop Forged Bolt Pin Anchor Shackle G-2130

 LGRIG® Stainless Steel Drop Forged Bolt Pin Chain Shackle G-2150

 LGRIG® Stainless Steel Drop Forged Weld-on D Ring

 LGRIG® Drop Forged Stainless Steel Hammerlock Chain Connector European Type

 LGRIG® Drop Forged Stainless Steel Hammerlock Chain Connector US Type

 LGRIG® Stainless Steel Drop Forged Master Link

 LGRIG® Stainless Steel Drop Forged Split Chain Connecting Link

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Stainless Steel Drop Forged Screw Pin Chain Shackle

Brand	LGRIG®
Standard	Forged Chain shackle conform to U.S. Federal Specification(ASME B30.26)
Material	Type 304 or Type 316 Stainless steel Drop Forged Chain Shackle
Processing	Body: Drop Forged Screw Pin : hot/cold forging / Drop Forged
Finish	Highly Polished
Size	1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-3/4", 2", 2-1/2"
Tips	Special specification and marks can be made according to customers' requirements.

Specifications of LGRIG® Stainless Steel Drop Forged Screw Pin Chain Shackle

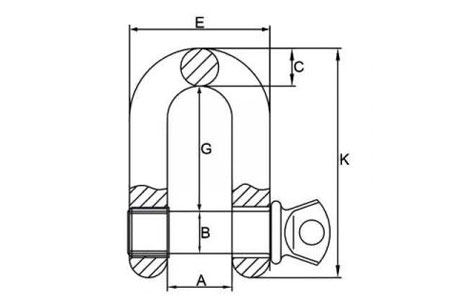

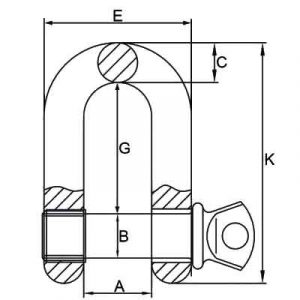

Part No.	Size (in.)	WLL (t)*	Weight	Dimensions (in.)						Tolerance+/-
Part No.	Size (in.)	WLL (t)*	Weight	A	B	C	E	G	K	G	A
LGSS210DF1/4	1/4	1/2	0.11	0.47	0.31	0.25	0.97	0.97	1.59	0.06	0.06
LGSS210DF5/16	5/16	3/4	0.17	0.53	0.38	0.31	1.15	1.07	1.91	0.06	0.06
LGSS210DF3/8	3/8	1	0.28	0.66	0.44	0.38	1.42	1.28	2.31	0.13	0.06
LGSS210DF7/16	7/16	1-1/2	0.43	0.75	0.5	0.44	1.63	1.48	2.67	0.13	0.06
LGSS210DF1/2	1/2	2	0.59	0.81	0.63	0.5	1.81	1.66	3.03	0.13	0.06
LGSS210DF5/8	5/8	3-1/4	1.25	1.06	0.75	0.63	2.32	2.04	3.76	0.13	0.06
LGSS210DF3/4	3/4	4-3/4	2.63	1.25	0.88	0.81	2.75	2.4	4.53	0.25	0.06
LGSS210DF7/8	7/8	6-1/2	3.16	1.44	1	0.97	3.2	2.86	5.33	0.25	0.06
LGSS210DF1/1	1	8-1/2	4.75	1.69	1.13	1	3.69	3.24	5.94	0.25	0.06
LGSS210DF1-1/8	1-1/8	9-1/2	6.75	1.81	1.25	1.25	4.07	3.61	6.78	0.25	0.06
LGSS210DF1-1/4	1-1/4	12	9.06	2.03	1.38	1.38	4.53	3.97	7.5	0.25	0.13
LGSS210DF1-3/8	1-3/8	13-1/2	11.63	2.25	1.5	1.5	5.01	4.43	8.28	0.25	0.13
LGSS210DF1-1/2	1-1/2	17	15.95	2.38	1.63	1.62	5.38	4.84	9.05	0.25	0.13
LGSS210DF1-3/4	1-3/4	25	26.75	2.88	2	2.12	6.38	5.78	10.97	0.25	0.13
LGSS210DF2/1	2	35	42.31	3.25	2.25	2.36	7.25	6.77	12.74	0.25	0.13
LGSS210DF2-1/2	2-1/2	55	71.75	4.12	2.75	2.63	9.38	8.07	14.85	0.25	0.25
