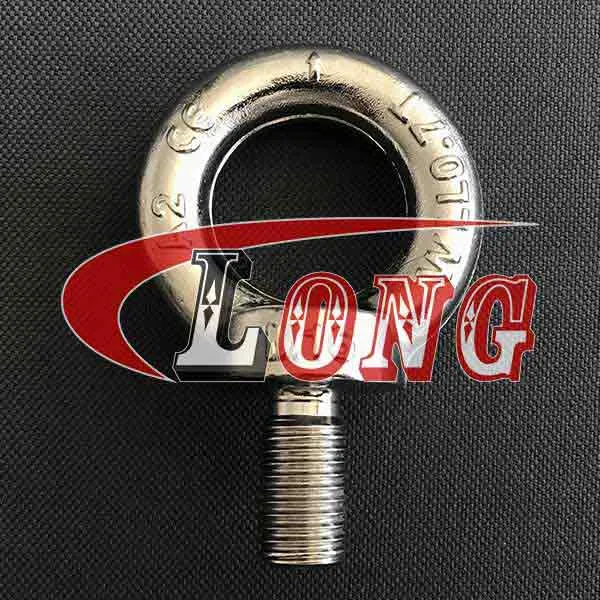

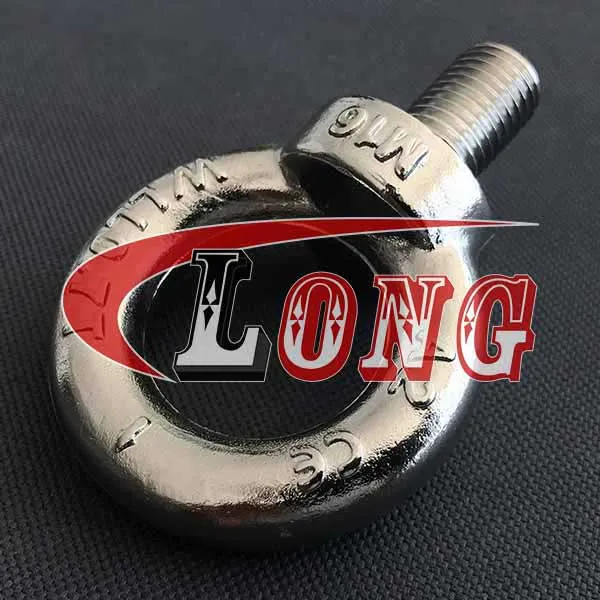

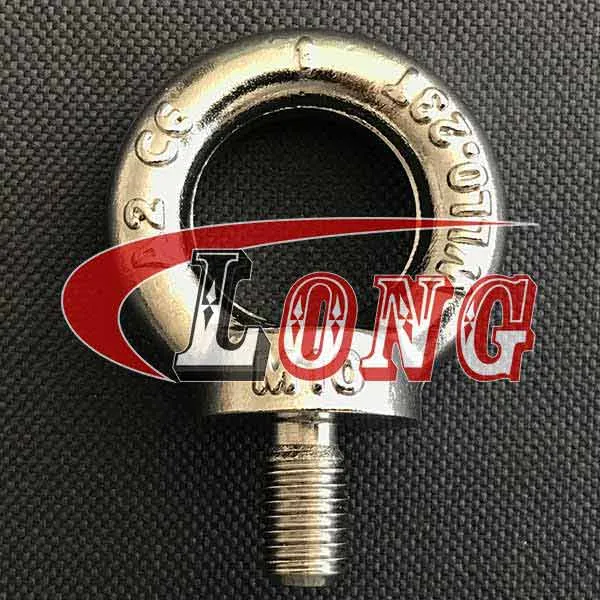

Name: LGRIG® Stainless Steel Drop Forged Lifting Eye Bolt DIN 580
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless Chains 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

 LGRIG® Stainless Steel Drop Forged Lifting Eye Bolt DIN 580

 LGRIG® Lifting Eye Nut DIN 582 Drop Forged Stainless Steel

 LGRIG® Stainless Steel Drop Forged Shoulder Eye Bolt With Collar

 LGRIG® Turnbuckle Body Only Drop Forged Stainless Steel US Type

 LGRIG® Drop Forged Stainless Steel Jaw & Eye Turnbuckle US Type

 LGRIG® Drop Forged Stainless Steel Eye & Eye Turnbuckle US Type

 LGRIG® Drop Forged Stainless Steel Jaw & Jaw Turnbuckle US Type

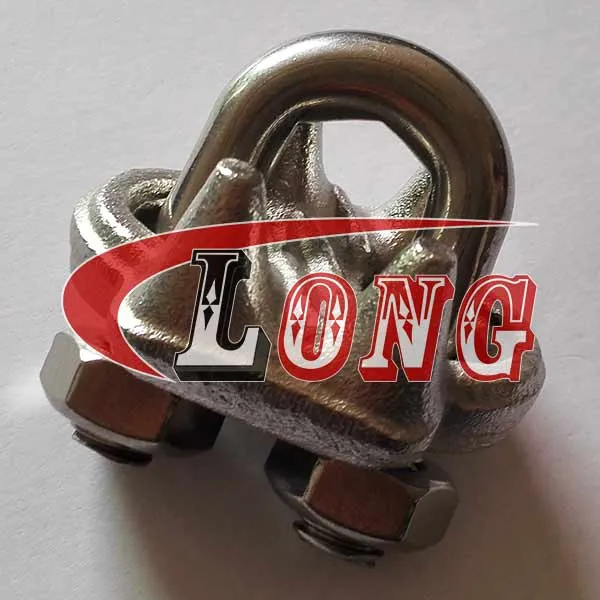

 LGRIG® Drop Forged Wire Rope Clips G450 Stainless Steel US Type

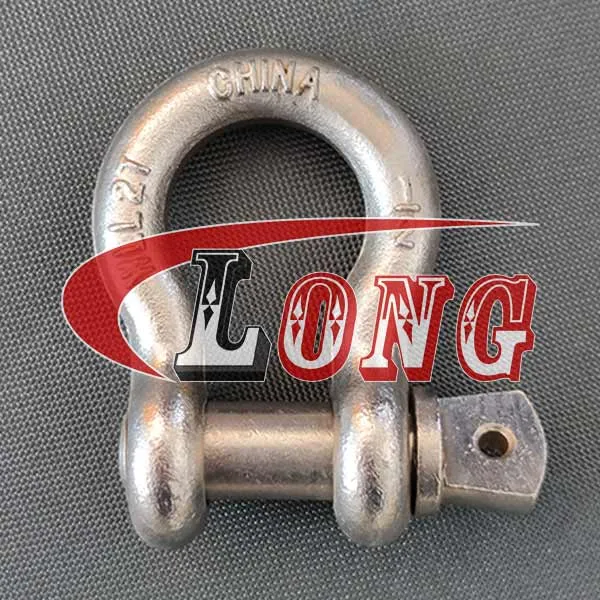

 LGRIG® Stainless Steel Drop Forged Anchor Shackle Oversized Screw Pin G-209

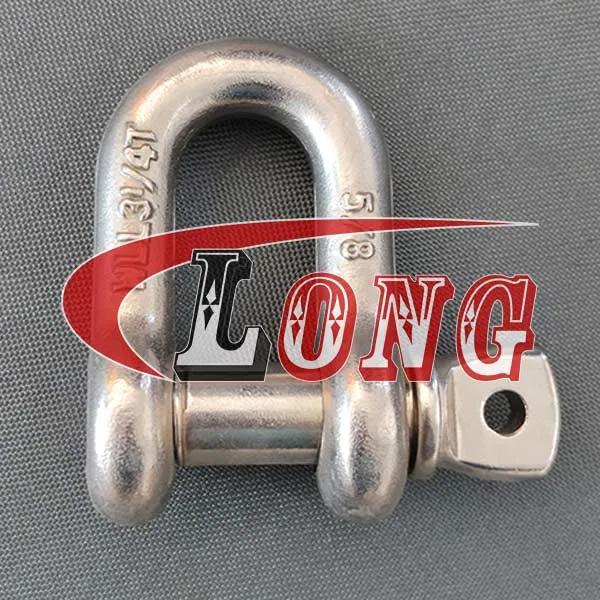

 LGRIG® Stainless Steel Drop Forged Screw Pin Chain Shackle

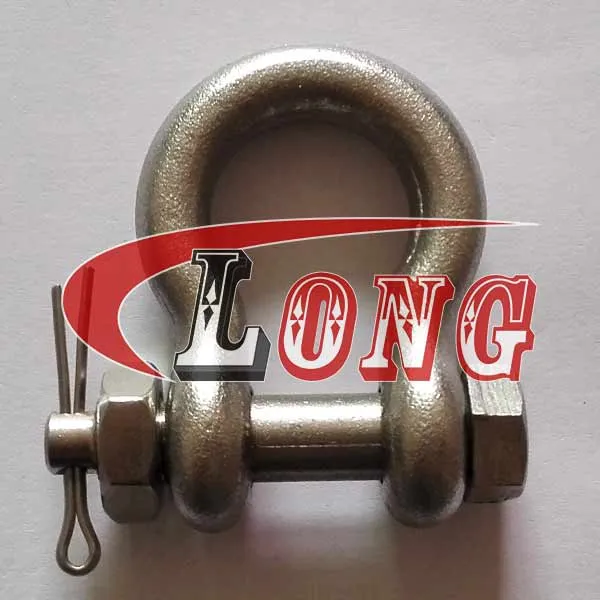

 LGRIG® Stainless Steel Drop Forged Bolt Pin Anchor Shackle G-2130

 LGRIG® Stainless Steel Drop Forged Bolt Pin Chain Shackle G-2150

 Stainless Steel Drop Forged Weld-on D Ring-LG RIGGING®

 LGRIG® Drop Forged Stainless Steel Hammerlock Chain Connector European Type

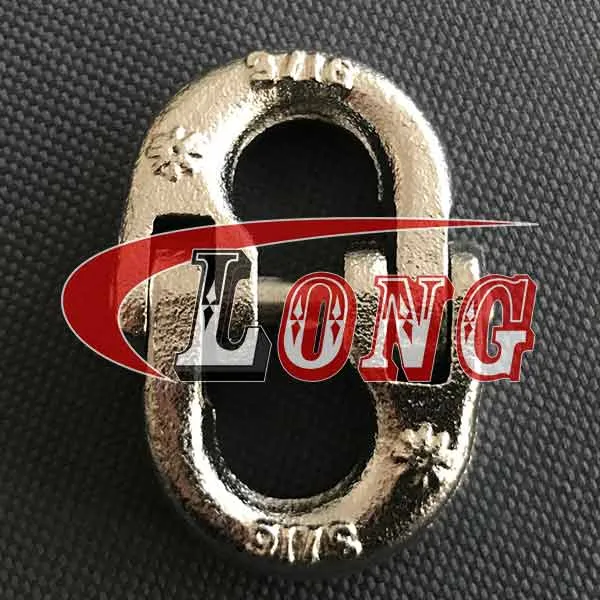

 LGRIG® Drop Forged Stainless Steel Hammerlock Chain Connector US Type

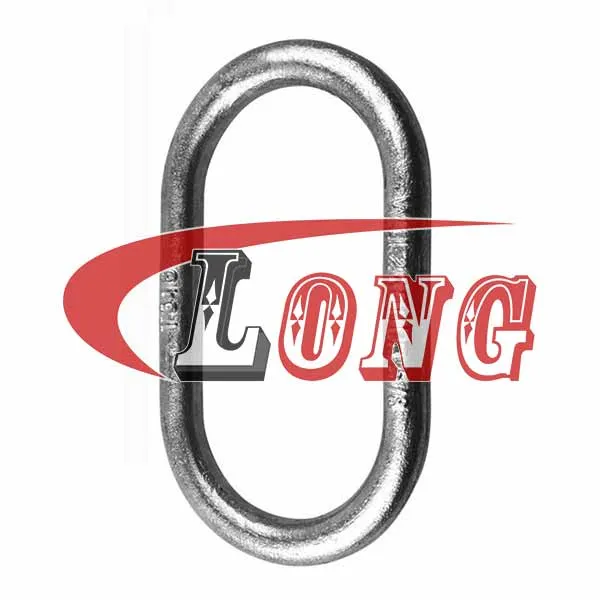

 LGRIG® Stainless Steel Drop Forged Master Link

 Stainless Steel Drop Forged Split Chain Connecting Link

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

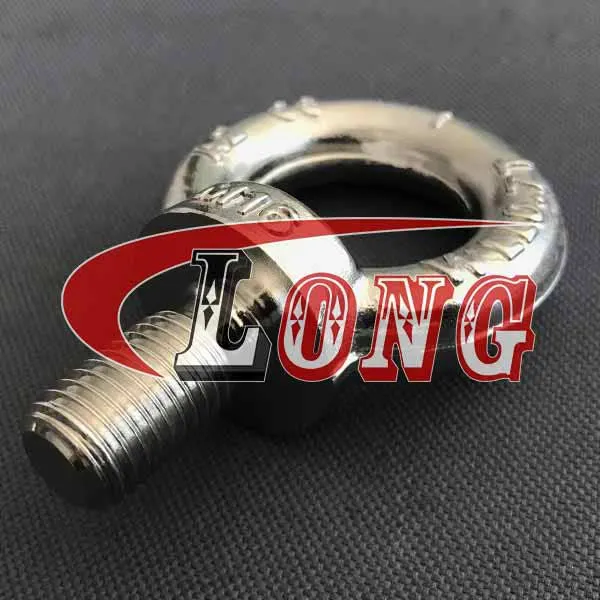

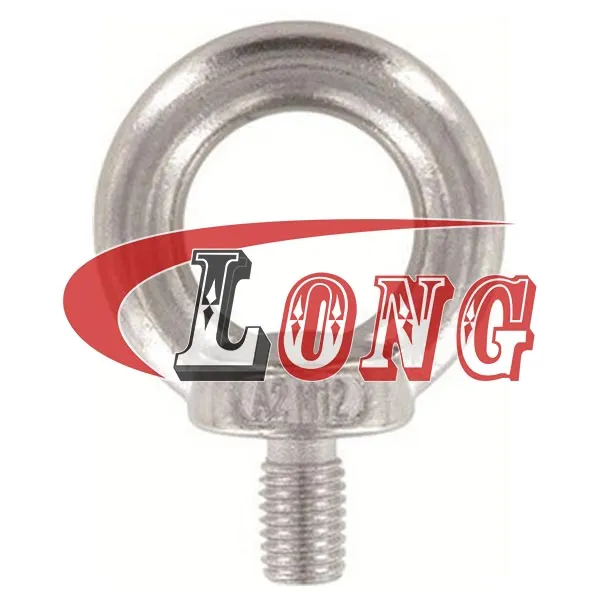

Information of LGRIG® Stainless Steel Drop Forged Lifting Eye Bolt DIN 580

Brand	LGRIG®
Technical Notes	Eye bolt conform to DIN 580
Material	Forged eye bolt made from Type 304 or Type 316 Stainless Steel
Processing	Drop Forged
Finish	Highly Polishing
Size	M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64
Note	Never to be used for overhead lifting
Country of Origin	China

Specifications of LGRIG® Stainless Steel Drop Forged Lifting Eye Bolt DIN 580

Part No.	d1	d2	d3	d4	e	h	k	l	SWL	Weight Each
Part No.	mm								kgs
LGSSDF580EB06	M6	17	28	16	6	31	6	13	70	0.06
LGSSDF580EB08	M 8	20	36	20	6	36	8	15	140	0.08
LGSSDF580EB10	M 10	25	45	25	8	45	10	18	230	0.11
LGSSDF580EB12	M 12	30	54	30	10	53	12	22	340	0.18
LGSSDF580EB14	M14	35	63	35	12	62	14	28	490	0.29
LGSSDF580EB16	M 16	35	63	35	12	62	14	28	700	0.29
LGSSDF580EB20	M 20	40	72	40	14	71	16	30	1200	0.45
LGSSDF580EB22	M22	45	81	45	16	80	18	35	1500	0.67
LGSSDF580EB24	M 24	50	90	50	16	90	20	38	1800	0.87
LGSSDF580EB27	M27	50	90	50	18	90	20	38	2500	0.88
LGSSDF580EB30	M 30	65	108	60	18	109	24	45	3200	1.66
LGSSDF580EB33	M33	65	108	60	22	109	24	45	4300	1.72
LGSSDF580EB36	M 36	75	126	70	22	128	28	55	4600	2.65
LGSSDF580EB39	M39	75	126	70	26	128	28	55	6100	2.8
LGSSDF580EB42	M42	85	144	80	30	147	32	65	7000	4.03
LGSSDF580EB45	M45	85	144	80	30	147	32	65	8000	4.25
LGSSDF580EB48	M48	100	166	90	35	168	36	70	8600	6.38
LGSSDF580EB52	M52	100	166	90	35	168	36	70	9900	6.66
LGSSDF580EB56	M56	110	184	100	38	187	42	80	11500	8.8
LGSSDF580EB64	M64	120	206	110	42	208	48	90	16000	12.4
