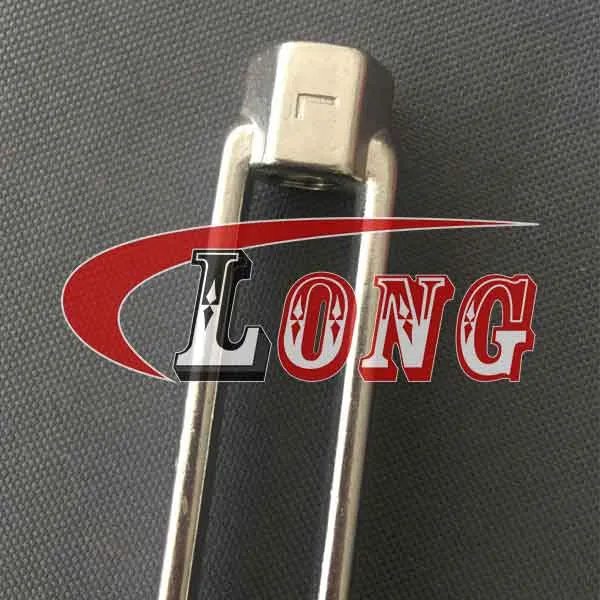

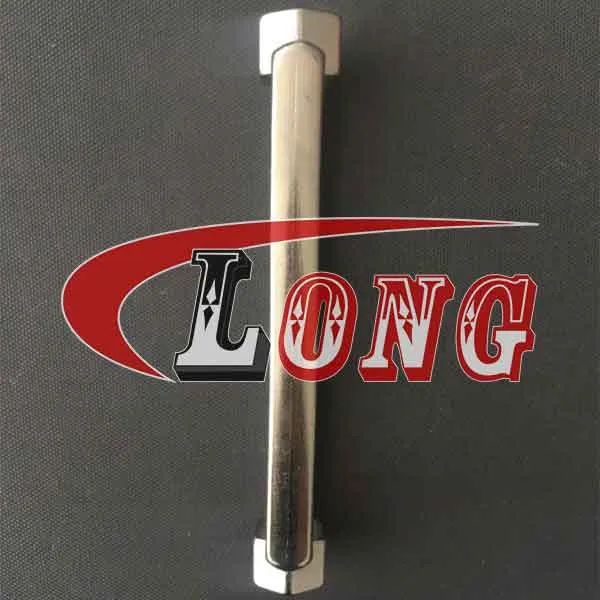

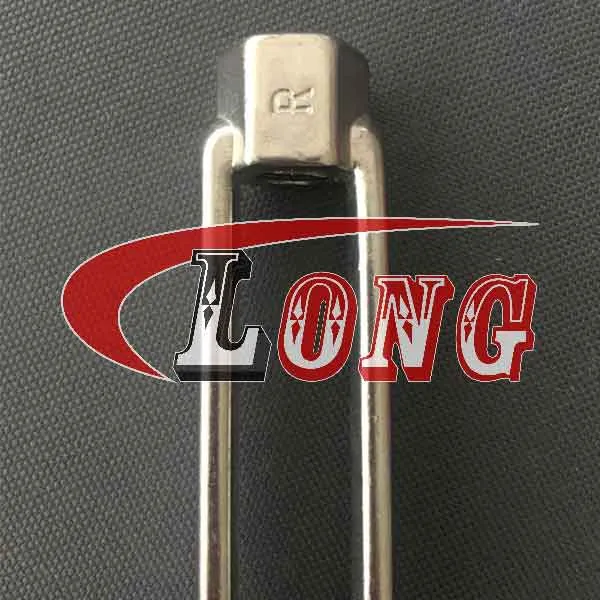

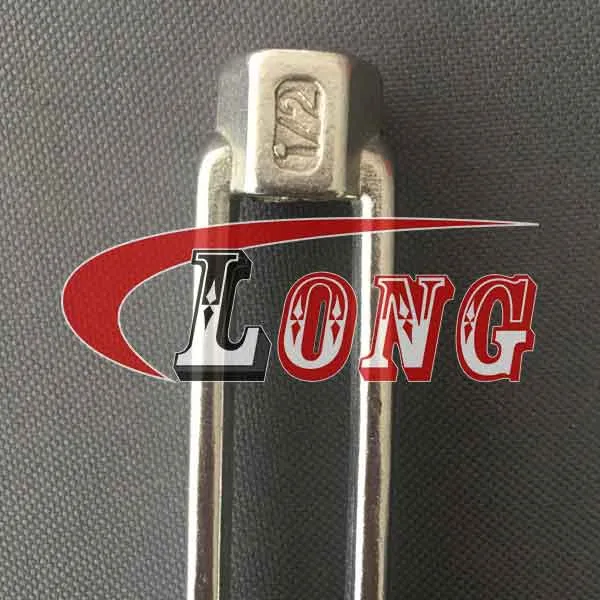

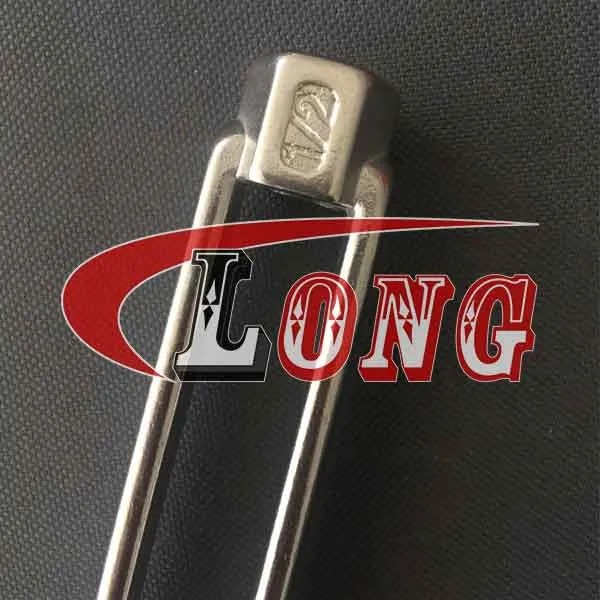

Name: LGRIG® Stainless Steel Turnbuckle Body US Type
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

Stainless Turnbuckle 

 LGRIG® Stainless Steel Eye to Eye Turnbuckle Commercial European Type

 LGRIG® Stainless Steel Commercial Turnbuckle Hook and Hook European Type

 LGRIG® Stainless Steel Hook Eye Turnbuckle European Type

 LGRIG® Jaw Jaw Turnbuckle Stainless Steel European Type

 LGRIG® Stainless Steel Rigging Screw Jaw & Jaw

 LGRIG® Stainless Steel Rigging Screw Jaw to Swage Stud

 LGRIG® Stainless Steel Rigging Screw Swage Stud & Swage Stud

 LGRIG® Stainless Steel Rigging Screw Body

 LGRIG® Stainless Steel Rigging Screw Toggle/Toggle

 LGRIG® Stainless Steel Rigging Screw Toggle/Swage Stud

 LGRIG® Stainless Steel Rigging Screw Machined Fork/Fork

 LGRIG® Stainless Steel Rigging Screw Machined Fork/Terminal

 LGRIG® Stainless Steel DIN 1480 Eye/Eye Turnbuckle

 LGRIG® Stainless Steel DIN 1480 Hook/Hook Turnbuckle

 LGRIG® Stainless Steel DIN 1480 Turnbuckle Eye/Hook

 LGRIG® Stainless Steel Turnbuckle Body US Type

 LGRIG® Eye & Eye Stainless Steel Turnbuckle

 LGRIG® Stainless Steel Hook and Eye Turnbuckle US Type

 LGRIG® Hook & Hook Stainless Steel Turnbuckle US Type

 LGRIG® Jaw & Eye Stainless Steel Turnbuckle US Type

 LGRIG® Jaw & Jaw Stainless Steel Turnbuckle US Type

 LGRIG® Eye to Hook Turnbuckle Stainless Steel JIS Standard

 LGRIG® Stainless Steel Turnbuckle Eye & Eye Korean Type

 LGRIG® Drop Forged Turnbuckle Stainless Steel US Type Body Only for Stainless Turnbuckle

 LGRIG® Drop Forged Jaw & Eye Turnbuckle Stainless Steel US Type for Stainless Turnbuckle

 LGRIG® Turnbuckle Drop Forged Stainless Steel Eye&Eye US Type for Stainless Turnbuckle

 LGRIG® Stainless Steel Drop Forged Jaw & Jaw Turnbuckle US Type for Stainless Turnbuckle

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Stainless Steel Turnbuckle Body US Type

Brand	LGRIG®
Standard	Turnbuckle conform to US Federal Specification ASTM F1145-92 Type 1
Material	Stainless steel (AISI 304/AISI 316)
Size	1/4×4", 5/16×4.5", 3/8×6", 1/2×6", 1/2×9", 1/2×12", 5/8×6", 5/8×9", 5/8×12” 3/4×6", 3/4×9", 3/4×12", 7/8×6", 7/8×12", 1×6", 1×12", 1-1/4×12 , 1-1/2×12
Processing	Cast / Forged
Finish	Highly Polishing
Tips	Corrosion Resistant
Country of Origin	China

Specifications of LGRIG® Stainless Steel Turnbuckle Body US Type


Part No.	Size	L	L1	B	B1	H	H1
Part No.	in.
LGSSUSTB1/4×4	1/4	4	4.75	0.5	0.34	0.72	0.17
LGSSUSTB5/16×4.5	5/16	4.5	5.44	0.56	0.38	0.81	0.19
LGSSUSTB3/8×6	3/8	6	7.12	0.62	0.38	0.88	0.19
LGSSUSTB1/2×6	1/2	6	7.5	0.81	0.5	1.12	0.25
LGSSUSTB1/12×9	1/2	9	10.5	0.81	0.5	1.12	0.25
LGSSUSTB1/2×12	1/2	12	13.5	0.81	0.5	1.12	0.25
LGSSUSTB5/8×6	5/8	6	7.88	1	0.62	1.38	0.31
LGSSUSTB5/8×9	5/8	9	10.88	1	0.62	1.38	0.31
LGSSUSTB5/8×12	5/8	12	13.88	1	0.62	1.38	0.31
LGSSUSTB3/4×6	3/4	6	8.25	1.12	0.75	1.69	0.38
LGSSUSTB3/4×9	3/4	9	11.25	1.12	0.75	1.69	0.38
LGSSUSTB3/4×12	3/4	12	14.25	1.12	0.75	1.69	0.38
LGSSUSTB7/8×6	7/8	6	8.62	1.31	0.88	1.94	0.44
LGSSUSTB7/8×12	7/8	12	14.62	1.31	0.88	1.94	0.44
LGSSUSTB1×6	1	6	9	1.5	1	2.25	0.5
LGSSUSTB1×12	1	12	15	1.5	1	2.25	0.5
LGSSUSTB1-1/4×12	1-1/4	12	15.12	1.88	1.25	2.62	0.56
LGSSUSTB1-1/2×12	1-1/2	12	15.75	2.25	1.5	3	0.62
