Information of LGRIG® Stainless Steel Rigging Screw Swage Stud

Brand	LGRIG®
Material	AISI316 Stainless Steel rigging screw
Size	M4, M5 M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M36 turnbuckle rigging screw
Processing	Body: Reduced Tube / Machining Swage Stud: Reduced Tube
Turnbuckle Type	Closed Body Turnbuckle/Rigging Screw
End Fittings	Swage Stud/Swage Terminal/Swage Ends
Finish	Highly Polishing
Tips	Corrosion Resistant
Country of Origin	China

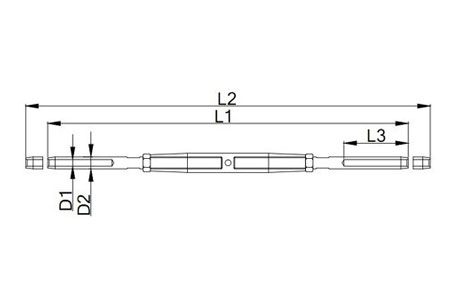

Specifications of LGRIG® Stainless Steel Rigging Screw Swage Stud & Swage Stud


Part No.	Thread Size	Wire mm	D1 (mm)	D2 (mm)	L3 (mm)	L1 (mm)	L2 (mm)	KG/100	B.L.KG.
LGSSRSSS0402	M4	2	2.2	4.8	24	145	197	2.3	500
LGSSRSSS0502	M5	2	2.2	5.5	32	178	238	4	800
LGSSRSSS0525	M5	2.5	2.7	5.5	32	178	238	4	800
LGSSRSSS0532	M5	3.2	3.5	6.35	39	184	244	4.5	800
LGSSRSSS0603	M6	3	3.3	6.35	39	204	274	7	1250
LGSSRSSS0632	M6	3.2	3.5	6.35	39	204	274	7	1250
LGSSRSSS0604	M6	4	4.3	7.5	45	224	294	7.8	1250
LGSSRSSS0804	M8	4	4.3	7.5	45	235	305	12	2350
LGSSRSSS0805	M8	5	5.3	9	52	249	319	13.5	2350
LGSSRSSS1005	M10	5	5.3	9	52	270	355	22.5	3500
LGSSRSSS1006	M10	6	6.4	12.6	64	300	385	30	3500
LGSSRSSS1206	M12	6	6.4	12.6	64	330	445	43	5100
LGSSRSSS1208	M12	8	8.4	16	80	370	480	55	5100
LGSSRSSS1407	M14	7	7.4	14.2	70	365	485	57	5900
LGSSRSSS1608	M16	8	8.4	16	80	418	548	92	8000
LGSSRSSS1610	M16	10	10.5	18	90	438	568	100	8000
LGSSRSSS2010	M20	10	10.5	18	90	465	620	145	13000
LGSSRSSS2012	M20	12	12.6	20	105	495	650	151	13000
LGSSRSSS2214	M22	14	14.7	25	140	645	820	378	17000
LGSSRSSS2416	M24	16	16.9	28	160	745	980	553	20000
LGSSRSSS2719	M27	19	20	34.5	200	880	1115	801	27000
LGSSRSSS3022	M30	22	23.2	40.5	230	985	1240	1179	31000
LGSSRSSS3626	M36	26	27.5	46	280	1130	1400	1589	43000
