LGRIG® Stainless Steel Offset Marine Hinge 38×54 / 38×66 mm

Name: LGRIG® Stainless Steel Offset Marine Hinge 38×54 / 38×66 mm
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This stainless steel offset marine hinge is designed for doors, hatches, cabinets, lockers and panels where a right-angle or offset mounting configuration is required. The compact 38 mm wide body combined with 54 mm and 66 mm length options provides flexibility for different door and panel installations.

The offset design allows the hinge leaves to sit on different mounting planes, making it suitable for recessed hatch doors, cabinet doors and panels that require additional clearance between the door and frame. This configuration is particularly useful where a conventional flat butt hinge cannot provide the required mounting position or movement.

The hinge features a polished stainless steel appearance, countersunk mounting holes and a central hinge pin. The recessed mounting-hole design helps compatible screws sit neatly within the hinge surface, creating a clean installation while maintaining reliable fastening.

This style of stainless steel offset hinge is widely associated with marine hardware applications such as boat hatches, yacht cabinets, storage lockers, access panels and cabin doors. Similar offshore and marine hinges are commonly specified with stainless steel construction for resistance to moisture, saltwater and demanding outdoor conditions.

The 38×54 mm and 38×66 mm configurations provide different mounting lengths for compact doors and panels. The hinge can also be used for RV hardware, equipment cabinets, storage boxes, outdoor enclosures and other applications requiring a compact stainless steel offset hinge with a clean appearance and practical installation.

For marine applications where maximum corrosion resistance is required, comparable products on the market are often manufactured from AISI 316 stainless steel and supplied with polished or mirror-polished finishes. The actual grade and finish of this LGRIG® product should be confirmed against the production specification before making a specific 316 or mirror-polished claim.

Get A Quote

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Stainless Marine Hinges 

 LGRIG® Stamped Stainless Steel Hinge 76×40mm

 LGRIG® Stainless Steel T Strap Hinges TC Type

 LGRIG® Stainless Steel Short Side Hinge HSF Type

 Stainless Steel Marine Heavy Duty Butt Hinges-LG RIGGING®

 Stainless Steel Marine Semicircle Hinge-LG RIGGING®

 Stainless Steel Marine Heavy Duty Door Hinges-LG RIGGING®

 LGRIG® Stainless Steel Offset Marine Hinge 38×54 / 38×66 mm

 LGRIG® Stainless Steel Hinge HFD Type

 LGRIG® Stainless Steel Hinge HFZ Type

 LGRIG® Stainless Steel Strap Hinge HGL Type 3 Point Fixing

 LGRIG® Stainless Steel Short Side Hinge HSD Type

 LGRIG® Stainless Steel Hinge HGS Type

 LGRIG® Stainless Steel Hinge HGZ Type

 LGRIG® Stainless Steel Round Side Hinge HGRS Type

 LGRIG® Stainless Steel T Strap Hinges TB Type

 LGRIG® Stainless Steel Round Side Hinge HGRT Type

 LGRIG® Stainless Steel Butt Hinge HBF Type

 LGRIG® Stainless Steel Short Side Door Hinge 40×55 mm

Bimini Top Fittings 

Cleats & Fairleads 

Angle Bracket 

Rail Fittings 

Thru-Hull & Deck Fittings 

Stainless Latches 

Mooring Compensators / Springs 

Brake Lining 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Stainless Steel Offset Marine Hinge 38×54 / 38×66 mm

Brand	LGRIG®
Product Name	Stainless Steel Offset Marine Hinge
Material	Type 316 Stainless Steel
Surface	Polished Stainless Steel Finish
Hinge Type	Offset / Recessed Hinge
Mounting Type	Surface / Offset Mount
Hole Type	Countersunk Mounting Holes
Pin	Central Hinge Pin
Size	38x54 mm / 38x66 mm
Feature	Offset Design, Compact Structure, Countersunk Holes
Use	Hatch, Door, Cabinet, Locker and Access Panel
Application	Marine, Boat, Yacht, RV, Cabinet and Outdoor Hardware
Origin	China

Specifications of LGRIG® Stainless Steel Offset Marine Hinge 38×54 / 38×66 mm

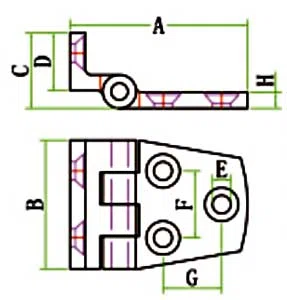

Part No.	SIZE	A	B	C	D	E	F	G	H	Weight (KG)
LGSSHGO54	38×54 mm	54.0 mm	38.0 mm	22.5 mm	17.0 mm	5.5 mm	20.0 mm	17.5 mm	4.5 mm	0.083 kg
LGSSHGO66	38×66 mm	66.0 mm	38.0 mm	22.5 mm	17.0 mm	5.5 mm	20.0 mm	31.0 mm	4.5 mm	0.098 kg
