LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

LGRIG® DIN 1480 Turnbuckle Stub Ends, aka Straining Screw DIN 1480 with welding rod, open frame turnbuckles, Commercial Turnbuckle with Stub Ends Termination, conform to DIN 1480.

DIN 1480 Turnbuckle Stub End aka straining screw DIN 1480 with stub end.

These DIN 1480 turnbuckle is available in sizes ranging from M5 to M36 to fit every project and are made from super carbon steel for maximum corrosion resistance and durability.

DIN 1480 straining screw is ideal for marine and industrial applications.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
LGRIG® Jaw&Jaw Turnbuckle Galvanized US Type
LGRIG® Forged Turnbuckle with Plain Ends for Swimming Pool
LGRIG® Eye&Eye Turnbuckle Galvanized US Spec
LGRIG® Jaw & Eye Turnbuckle Galvanized US Spec
LGRIG® Galvanized Hook & Eye Turnbuckle US Fed Spec
LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec
LGRIG® DIN 1478 Turnbuckle Body
LGRIG® DIN 1478 Turnbuckle Jaw-Jaw Galvanized
LGRIG® DIN 1478 Turnbuckle Eye-Eye Galvanized
LGRIG® DIN 1478 Turnbuckle Jaw-Eye Galvanized
LGRIG® DIN 1478 Turnbuckle Hook and Eye Galvanized
LGRIG® DIN 1478 Turnbuckle Hook-Hook Galvanized
LGRIG® DIN 1478 Turnbuckle With Stub Ends Galvanized
LGRIG® DIN 1480 Turnbuckle Body Only
LGRIG® DIN 1480 Turnbuckle Eye/Eye
LGRIG® DIN 1480 Hook/Eye Turnbuckle Galvanized
LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized
LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised
LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Body
LGRIG® Galvanized Rigging Screw Closed Body Jaw/Jaw
LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Eye/Eye
LGRIG® Galvanized Rigging Screw Closed Body Turnbuckle Jaw/Eye
LGRIG® JIS Forged Steel Frame Type Turnbuckle
LGRIG® DIN 1480 Turnbuckle Cast Hook & Hook
LGRIG® DIN1480 Cast Malleable Iron Commercial Type Turnbuckle Eye Hook
LGRIG® Turnbuckle Die Cast Zinc Eye/Eye
LGRIG® Hook and Eye Turnbuckle Die Cast Zinc Plated RS Type
LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type
LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type
LGRIG® Italy Type Turnbuckle Eye and Hook
LGRIG® Italy Type Turnbuckle Eye/Eye
LGRIG® Italy Type Turnbuckle Hook & Hook
Deck Lashing Turnbuckle with Pelican Hook and Pear Link
LGRIG® Hamburger Turnbuckle Lashing Marine D D
LGRIG® Turnbuckle Commercial Eye/Eye Cast Steel DIN1480
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

Brand

LGRIG®

Standard

To  DIN 1480

Material

Super Mild Steel

Processing

Drop Forged

Finish

Zinc plated, Hot dipped galvanized

Size

M5, M6, M8, M10, M12, M14, M16

M20, M22, M24, M27, M30, M33, M36

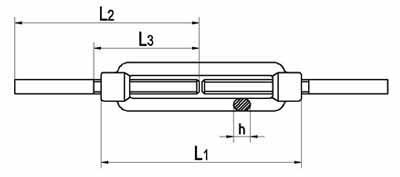

Specifications of LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised


Part No.

size

L1

h

L2

L3

W.L.L.

B.L.

Mm

N

LG1480SE05

M5

70

5

80

40

1530

6120

LG1480SE06

M6

110

7

120

65

2250

9000

LG1480SE08

M8

110

8

120

65

4100

16400

LG1480SE10

M10

125

9.5

150

75

6500

26000

LG1480SE12

M12

125

11

150

75

9300

37200

LG1480SE14

M14

140

13.5

165

85

12600

50400

LG1480SE16

M16

170

14

200

100

17700

70800

LG1480SE20

M20

200

17

220

120

27000

108000

LG1480SE22

M22

220

19

220

130

33900

135600

LG1480SE24

M24

255

21

260

150

39200

156800

LG1480SE27

M27

255

22

260

150

54100

205600

LG1480SE30

M30

255

23

260

160

62500

250000

LG1480SE33

M33

255

25

280

160

77700

310800

LG1480SE36

M36

295

28

300

180

91000

364000


Bulk Photos of LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised

LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
LGRIG® DIN 1480 Turnbuckle Stub Ends Galvanised
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Turnbuckles

LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type
LGRIG® Turnbuckle Die Cast Zinc Hook & Hook RS Type
LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised
LGRIG® DIN 1480 Turnbuckle Jaw and Jaw Galvanised
LGRIG® DIN 1478 Turnbuckle Eye-Eye Galvanized
LGRIG® DIN 1478 Turnbuckle Eye-Eye Galvanized
LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized
LGRIG® DIN 1480 Hook-Hook Turnbuckle Galvanized
LGRIG® DIN 1480 Hook/Eye Turnbuckle Galvanized
LGRIG® DIN 1480 Hook/Eye Turnbuckle Galvanized
LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized
LGRIG® DIN 1480 Turnbuckle Plane Ends Galvanized
LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type
LGRIG® Turnbuckle Hook & Eye Die Cast Zinc Alloy ES Type
LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec
LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
