pdq single steel plate clamps
pdq single steel plate clamps

PDQ Single Steel Plate Clamp

PDQ Single Steel Plate Clamps are used for horizontal lifting or overturning steel plates in one piece or several pieces.


The WLL means the maximum load that the clamps are authorized to support when used at a lift angle of 60°. In lifting operations, the clamps should be used in 2 pairs.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Tools
Hooks / Links / Rope Fittings
Trawling Chain
Synthetic Rope
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Grade 70 Weld-on Grab Hooks
Bolt-on Clevis Mounts with Hardware
Bolt-on Grab Hooks with Hardware
Clevis Grab Hook Grade 43 High Test
Alloy Steel Clevis Grab Hook Grade 70
Clevis Slip Hook Grade 43 High Test
Clevis Slip Hook Grade 70 Alloy Steel
Clevis Slip Hook with Latch Grade 43 High Test
Alloy Steel Clevis Slip Hook with Latch Grade 70
High Test Eye Grab Hook Grade 43
Alloy Eye Grab Hook Grade 70
High Test Eye Slip Hook Grade 43
Alloy Steel Eye Slip Hook Grade 70
Eye Slip Hook with Latch Grade 43 High Test
Grade 70 Eye Slip Hook with Latch
Eye Hoist Hook with Latch Carbon Steel Grade 43
Eye Hoist Hook with Latch Alloy Grade 70
Swivel Eye Hoist Hook Grade 43
Swivel Lifting Hook with Latch Grade 70
Shank Hooks with Latch, Carbon Steel
Alloy Shank Hook with Latch
Clevis Winged Grab Hook Grade 70 Australia Standard
Clevis Grab Hook No Wing Grade 70, Australia Standard
Clevis Slip Hook Grade 70 Australia Standard
Clevis Claw Hook Grade 70, Australia Standard
Lifting Eye Hook with Latch DIN689
Winch Hook w/ Latch Carbon Steel 3.5T
Forged Eye Snap Hook with Safety Latch
Clevis Grab Hook with Spring Latch Grade 43
Clevis Grab Hook with Spring Latch Grade 70
Forged Alloy Clevis Bend Hook
Forged Alloy Eye Bend Hook, Type A
Forged Round Reverse Eye Hook, G1210
Eye Twist Hook/Reverse Eye Hooks
Forged Eye Grab Hook with Triangle Ring
RTJ Cluster Hook Assembly with 3 Hook Cluster
TMS Horizontal Clamp with Locking Device
PDQ Single Steel Plate Clamp
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of PDQ Single Steel Plate Clamp

Features:


Working Load Limited (WLL): 1 – 10T

Suitable for lifting single or multi pieces of steel plates.

The clamp is made of high-quality carbon steel.

This clamp must be used with a beam, and no collision when the clamp is loaded.

Designed as a roller at the top to avoid any damage to the wire rope.

Automatic unloading.


Specifications of PDQ Single Steel Plate Clamp


Specifications of PDQ Single Steel Plate Clamp

Item No.ModelWLL
(tonnes)		Jaw Opening
(mm)		Weight
(kg)
LGLCPDQ1PDQ11.00-503
LGLCPDQ2PDQ22.00-605
LGLCPDQ3.2PDQ3.23.50-9012
LGLCPDQ5PDQ55.00-12017
LGLCPDQ8PDQ88.00-13025
LGLCPDQ10PDQ1010.00-15030

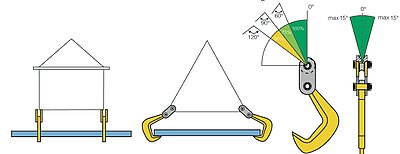

Application:

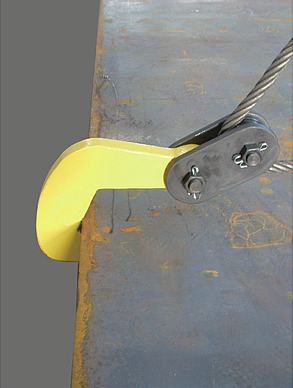

PDQ Single Steel Plate Clamp Application


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Rigging Hooks

Forged Eye Grab Hook with Triangle Ring
Forged Eye Grab Hook with Triangle Ring
Shank Hooks with Latch, Carbon Steel
Shank Hooks with Latch, Carbon Steel
Alloy Eye Grab Hook Grade 70
Alloy Eye Grab Hook Grade 70
Eye Hoist Hook with Latch Carbon Steel Grade 43
Eye Hoist Hook with Latch Carbon Steel Grade 43
Eye Slip Hook with Latch Grade 43 High Test
Eye Slip Hook with Latch Grade 43 High Test
Bolt-on Grab Hooks with Hardware
Bolt-on Grab Hooks with Hardware
Alloy Steel Clevis Slip Hook with Latch Grade 70
Alloy Steel Clevis Slip Hook with Latch Grade 70
RTJ Cluster Hook Assembly with 3 Hook Cluster
RTJ Cluster Hook Assembly with 3 Hook Cluster
China LG RIGGING's Updates
Exhibition in Chile 2024
29
Oct
2024
Exhibition in Chile 2024 Learn More
Exhibition in Cologne, Germany 2024
28
Oct
2024
Exhibition in Cologne, Germany 2024 Learn More
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble
25
Apr
2024
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
