Information of Tubular-Tube Thimble Galvanized Super Big Size-China LG™

Mode No.	G260, G265, G270, G275, G287, G294, G2107, G2112, G2120, G2127, G2140
Material	High Tensile Weldless Tube Steel
Processing	Machining / Stamping
Finish	Zinc Plated, Hot Dip Galvanized, Powder Coated
Rope Diameter	60mm, 65mm, 70mm, 75mm, 87mm, 94mm, 107mm, 112mm, 120mm,127mm, 140mm
Tips	Supplied in open finish or with welded gusset plate

Specifications of Tubular-Tube Thimble Galvanized Super Big Size-China LG™

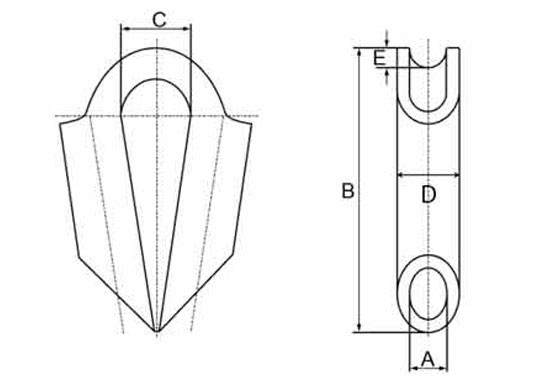

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Rope diameter (mm)	Weight (kg)
LG-TTb-G260	60	300	88	75	30	54	5.9
LG-TTb-G265	65	312	88	79	31	56	6.6
LG-TTb-G270	70	332	90	84	31.5	60	7.1
LG-TTb-G275	75	350	94	90	32	65	8.0
LG-TTb-G285	87	450	130	108	45	72	20.1
LG-TTb-G295	94	500	150	114	50	80	24.8
LG-TTb-G2105	107	550	190	127	52	92	30.4
LG-TTb-G2110	112	560	170	130	60	96	27.1
LG-TTb-G2120	120	650	220	152	76	104	68.8
LG-TTb-G2125	127	660	220	159	78	110	70.0
LG-TTb-G2140	140	750	240	180	90	115	110.0
