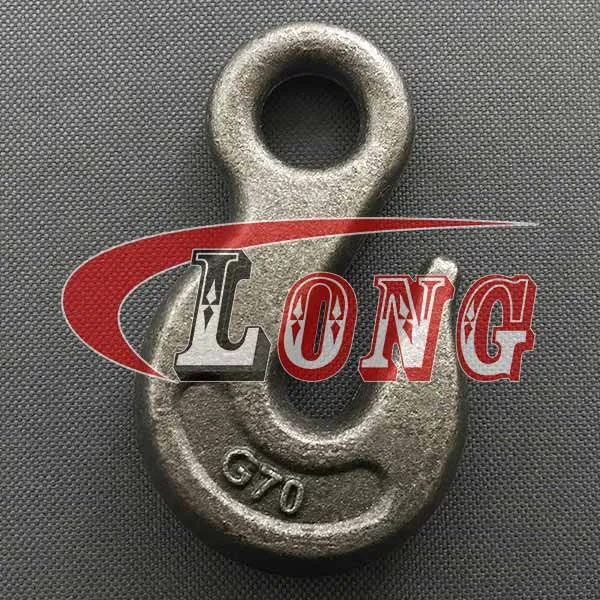

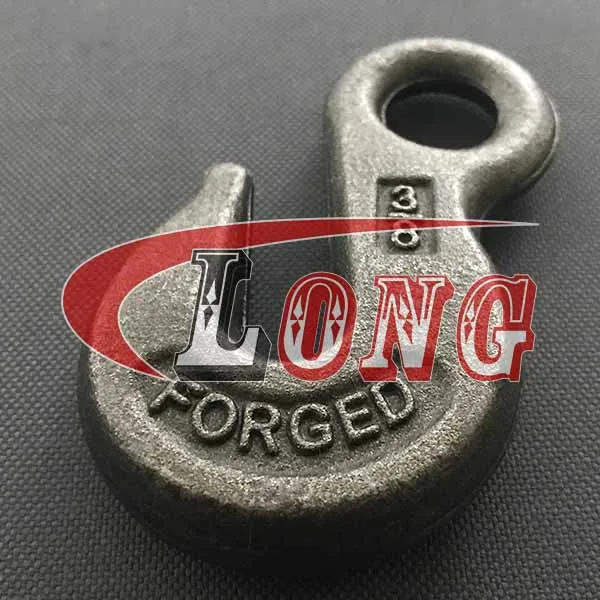

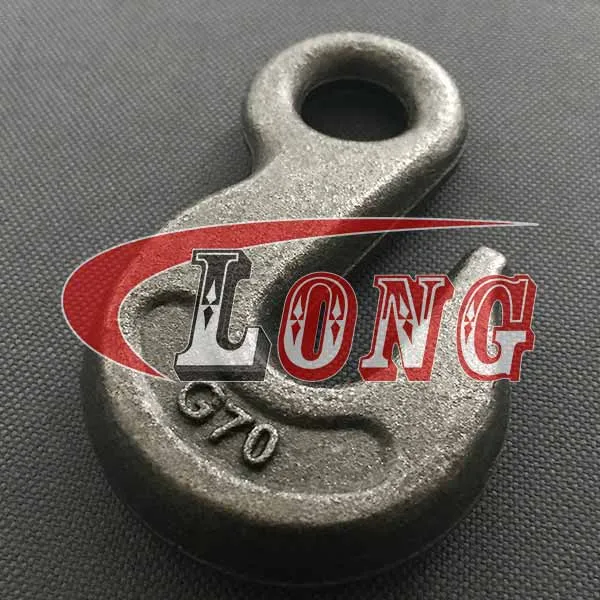

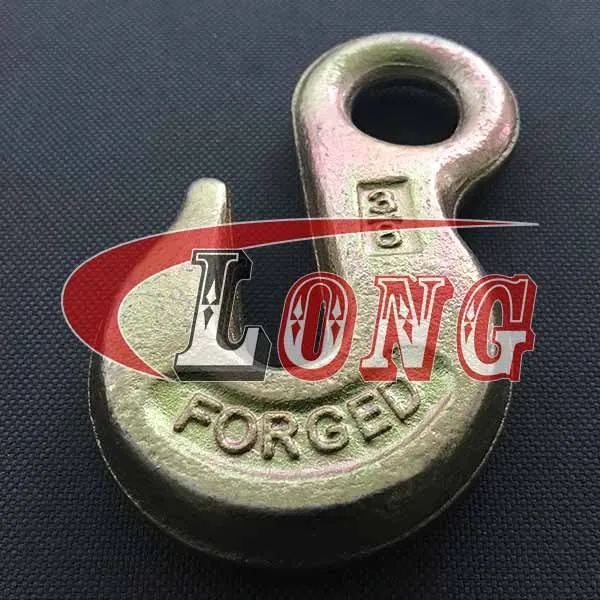

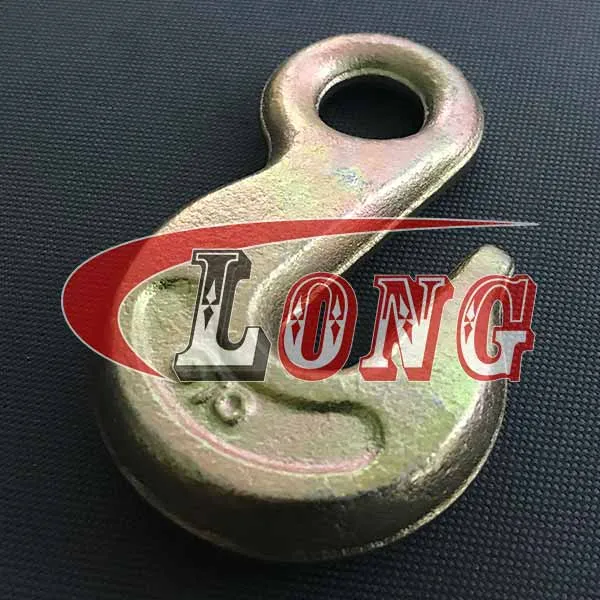

Alloy Eye Grab Hook Grade 70

A grab hook has a narrow throat allowing it to grab a link of the chain and prevent it from slipping, designed to allow chain to grab through the hook. These sturdy hooks meet U.S. Federal Specification for toughness and durability. Our range of Grade 70 Eye Grab hook is available in standard as well as customized sizes.

Designed to be used with Grade 70 chain.

Trawling Gear
Shackles
Boat Fittings

Information of Alloy Eye Grab Hook Grade 70

Technical Notes

U.S. Federal Specification

Material

Super Alloy Steel

Safety Factor

4: 1

Processing

Forged / Quenched and Tempered

Finish

Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color

Size

1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”

Tips

Finish: Customized according to customers’ requirements


Specifications of Alloy Eye Grab Hook Grade 70

Specifications of Alloy Eye Grab Hook Grade 70


Part No.

Weight


lbs

WLL


(lbs)

R±1


(mm)

H±1


(mm)

D±0.5


(mm)

E±0.5


(mm)

L±1


(mm)

G70

LG-70-EGH-1/4

0.28

3150

50.5

18.5

13

9

77

LG-70-EGH-5/16

0.45

4700

56.8

22.7

14

11.5

89

LG-70-EGH-3/8

0.79

6600

65.2

28.3

17

13

104

LG-70-EGH-7/16

1.26

8750

77

33.5

20

15.5

122

LG-70-EGH-1/2

1.75

11300

85.5

37.5

22

17

135

LG-70-EGH-5/8

3.25

15800

116

45

30

21

180

LG-70-EGH-3/4

5.94

24700

133.5

55

35

25

211


Warning!!!

Do not exceed the working load limit.

Not to be used for overhead lifting.

Make sure the hook size and chain diameter are compatible before attaching them to the load.


Also available in  Eye Grab Hook Grade 43.
