Information of LGRIG® Grade 70 Chain AS/NZS 4344

Brand	LGRIG®
Standard	Grade 70 transport chain Conform to AS/NZS 4344
Material	Super Alloy Steel
Processing	Welded
Finish	Yellow or White Zinc Chromate finish
Size	6mm, 7mm, 7.3mm, 8mm, 10mm, 13mm
Country of Origin	China

Specifications of LGRIG® Grade 70 Chain AS/NZS 4344

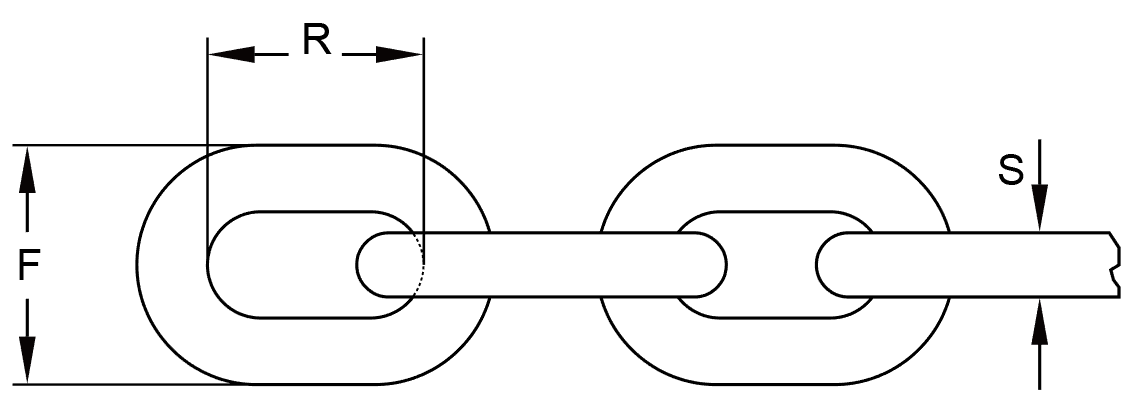

Part No.	CHAIN SIZE	LINK DIMENSIONS				WEIGHT PER M	Lashing Capacity	BREAKING STRENGTH
	CHAIN SIZE	R max.	R min.	F max.	inner width min.	WEIGHT PER M	Lashing Capacity	BREAKING STRENGTH
	MM					KG	kg	KN
LG7CAS06	6	18.9	17.33	22.05	7.88	0.81	2300	44.1
LG7CAS07	7	21.3	19.53	24.85	8.88	1.09	2900	55.9
LG7CAS073	7.3	24	22	26.6	10	1.16	3000	58.9
LG7CAS08	8	24	22	28	10	1.42	3800	73.6
LG7CAS010	10	30	27.5	35	12.5	2.22	6000	118
LG7CAS013	13	39	35.75	45.5	16.25	3.75	9000	176
