Information of LGRIG® B.S.3032 Large Bow Shackle with Screw Collar Pin

Brand	LGRIG®
Standard	Large Bow shackle conforms to B.S. 3032 table 3 - 1958
Pin Type	Type A Screw Collar Pin
Shackle Type	Large Bow Shackle
Materila	Carbon Steel
Processing	Forged / Quenched and Tempered
Finish	Hot Dip Galvanized, Zinc Plated or Self Colored
Size	3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″
Notes	Working Load Limit Permanently Shown on Every Shackle.
Typical Applications	a.General lifting in off-shore applications.b.General lifting and tethering in leisure marine applications. c.General lifting purposes.

Specifications of LGRIG® B.S.3032 Large Bow Shackle with Screw Collar Pin

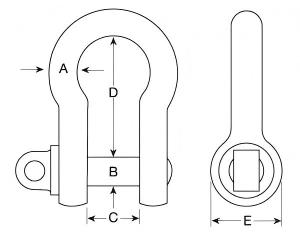

Part No.	A	B	C	D	E	Weight	SWL
Part No.	Inches					Kgs/Each	Tonns
LGBS3032LB3/8	3/8	1/2	5/8	1 5/8	1	0.18	0.45
LGBS3032LB1/2	1/2	5/8	7/8	2 1/8	1 1/4	0.34	0.75
LGBS3032LB5/8	5/8	3/4	1 1/8	2 3/4	1 1/2	0.65	1.25
LGBS3032LB3/4	3/4	7/8	1 3/8	3 3/8	1 3/4	1.08	2
LGBS3032LB7/8	7/8	1	1 5/8	3 7/8	2	1.8	2.75
LGBS3032LB1	1	1 1/8	1 3/4	4 1/4	2 1/4	2.46	3.75
LGBS3032LB11/8	1 1/8	1 1/4	2	4 7/8	2 1/2	3.47	4.75
LGBS3032LB11/4	1 1/4	1 3/8	2 1/4	5 3/8	2 3/4	4.56	5.75
LGBS3032LB13/8	1 3/8	1 1/2	2 1/2	6	3	6.07	7.25
LGBS3032LB11/2	1 1/2	1 3/4	2 3/4	6 5/8	3 1/2	8.35	8.5
LGBS3032LB15/8	1 5/8	1 7/8	3	7 3/8	3 3/4	11.81	9.5
