LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware

LGRIG® Bolt on Clevis Mounts with Hardware

LGRIG® is now offering Grade 70 4,700lbs rated forged Bolt-On Clevis Mounts and Bolt-On Grab Hooks that are welded to a forged plate, they also include the grade #8 mounting hardware needed to bolt them to your bucket or other equipment.

The thick plate sits flush on your bucket or mounting material. Installation only requires drilling two 1/2″ holes. Plated finish prevents rusting and corrosion and can be painted to match your bucket.

These are perfect for use with 1/2″shackles that's commonly used with small to medium sized Compact Utility Tractors and Sub Compact Utility Tractors.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
LGRIG® Grade 70 Weld-on Grab Hooks
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt-on Grab Hooks with Hardware
LGRIG® Clevis Grab Hook Grade 43 High Test
LGRIG® Grade 70 Clevis Grab Hook Alloy Steel
LGRIG® Clevis Slip Hook Grade 43 High Test
LGRIG® Clevis Slip Hook Grade 70 Alloy Steel
LGRIG® Clevis Slip Hook with Latch Grade 43 High Test
LGRIG® Clevis Slip Hook with Latch Grade 70 Alloy Steel
LGRIG® Eye Grab Hook Grade 43 High Test
LGRIG® Eye Grab Hook Grade 70 Alloy Steel
LGRIG® Eye Slip Hook Grade 43 High Test
LGRIG® Eye Slip Hook Grade 70 Alloy Steel
LGRIG® Eye Slip Hook with Latch Grade 43 High Test
LGRIG® Grade 70 Eye Slip Hook with Latch
LGRIG® Eye Hoist Hook with Latch LG320C Grade 43 High Test
LGRIG® Eye Hoist Hook with Latch LG320A Grade 70
LGRIG® Swivel Eye Hoist Hook with Latch Grade 43 High Test
LGRIG® Swivel Eye Hoist Hook with Latch Grade 70
LGRIG® Shank Hooks with Latch Carbon Steel
LGRIG® Shank Hooks with Latch Alloy Steel Grade 70
LGRIG® Clevis Grab Hook with Wing Grade 70 Australia Standard
LGRIG® Clevis Grab Hook No Wing Grade 70 Australia Standard
LGRIG® Clevis Slip Hook Grade 70 Australia Standard
LGRIG® Clevis Claw Hook Grade 70 Australia Standard
LGRIG® Lifting Eye Hook with Latch DIN689
LGRIG® Winch Hook w/ Latch Carbon Steel 3.5T
LGRIG® Forged Eye Snap Hook with Safety Latch
LGRIG® Grade 43 Clevis Grab Hook With Latch
LGRIG® Grade 70 Clevis Grab Hook With Latch
LGRIG® Grade 70 Clevis Bend Hooks Forged Alloy Steel
LGRIG® Eye Bend Hook Type A Forged Alloy
LGRIG® Round Reverse Eye Hooks LG1210
LGRIG® Eye Twist Hook/Reverse Eye Hooks
LGRIG® Eye Sling Hook with Triangle ring
LGRIG® RTJ Cluster Hook Assembly with 3 Hook Cluster
LGRIG® TMS Horizontal Clamp with Locking Device
LGRIG® PDQ Single Steel Plate Clamp
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Bolt on Clevis Mounts with Hardware

Brand

LGRIG®

Standard

U.S. Federal Specification

Material

Alloy Steel

Processing

Forged / Welded / Machined

Finish

Zinc Chromate Plated

Size

7/10″

Tips

Use with 1/2″ shackles

Mounting hardware included

Country of Origin

China

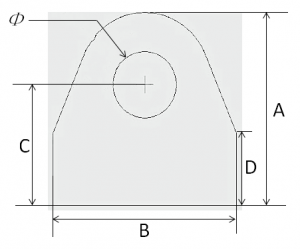

Specifications of LGRIG® Bolt on Clevis Mounts with Hardware


Part No.

Φ

A

B

C

D

Weight


(LBS)

Mounting Plate

Mounting hole

WLL

Fits

in


Thickness

width

Center to Center

LBS

LGBoCM7/10

0.69

2

2

1.25

0.75

1.23

4.25″x3.25″

1/4″

1/2″

2.75″

4,700

5/16″chains

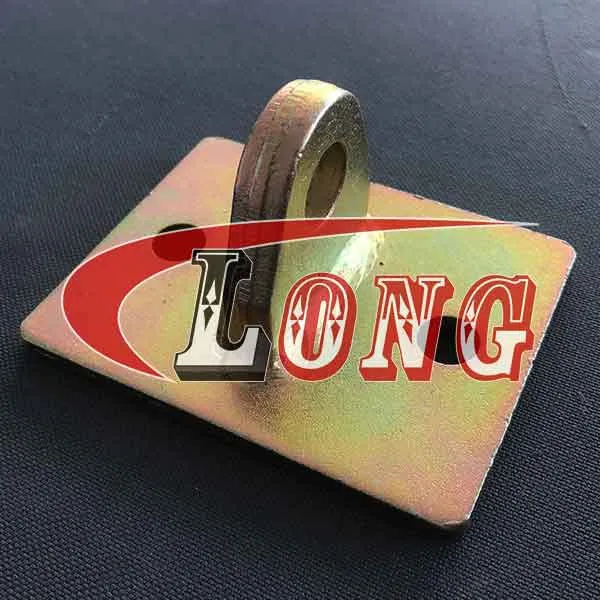

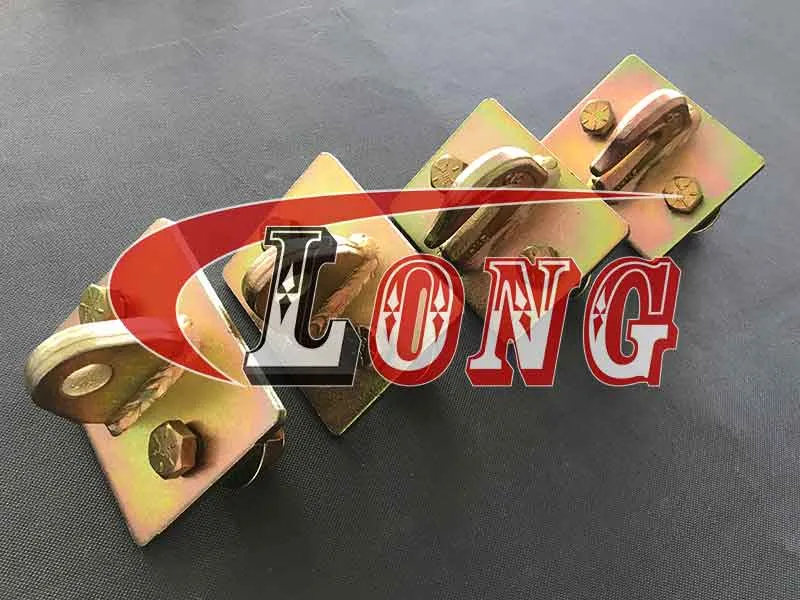

Bulk Photos of LGRIG® Bolt on Clevis Mounts with Hardware

LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
LGRIG® Bolt on Clevis Mounts with Hardware
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Rigging Hooks

LGRIG® Shank Hooks with Latch Carbon Steel
LGRIG® Shank Hooks with Latch Carbon Steel
LGRIG® Grade 43 Clevis Grab Hook With Latch
LGRIG® Grade 43 Clevis Grab Hook With Latch
LGRIG® Clevis Slip Hook Grade 43 High Test
LGRIG® Clevis Slip Hook Grade 43 High Test
LGRIG® Grade 70 Clevis Grab Hook Alloy Steel
LGRIG® Grade 70 Clevis Grab Hook Alloy Steel
LGRIG® RTJ Cluster Hook Assembly with 3 Hook Cluster
LGRIG® RTJ Cluster Hook Assembly with 3 Hook Cluster
LGRIG® PDQ Single Steel Plate Clamp
LGRIG® PDQ Single Steel Plate Clamp
LGRIG® Clevis Claw Hook Grade 70 Australia Standard
LGRIG® Clevis Claw Hook Grade 70 Australia Standard
LGRIG® Clevis Slip Hook with Latch Grade 70 Alloy Steel
LGRIG® Clevis Slip Hook with Latch Grade 70 Alloy Steel
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
