Clevis Claw Hooks combined with Grade 70 Chain are an effective way to restraint heavy loads for transport operations with the benefit of full lashing capacity together with in line tension.
Sizes available from 8 and 10mm.
Manufactured from dropped forged steel quenched and tempered and gold zinc plated.
Marked with Chain size, lashing capacity, grade, batch numbered and branded loadmax for traceability
Comply with AS4344, Batch Test Certificate available upon request.
Available Size for Australia Standard Clevis Claw Hooks, Grade 70
8mm Grade 70 Clevis Claw Hooks;
10mm Grade 70 Clevis Claw Hooks;

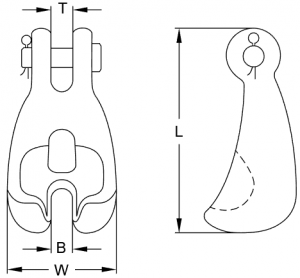

No. | SIZE | LC | Wt. | B | T | W | L |
mm | kg | kg | mm | mm | mm | mm | |
LGCCHG7001 | 8 | 3800 | 0.15 | 9.5 | 12.5 | 47 | 88.22 |
LGCCHG7001 | 10 | 6000 | 0.3 | 11.5 | 12.5 | 55 | 103.3 |
China LG Supply offers a wide variety of Regular Forged Hook.
