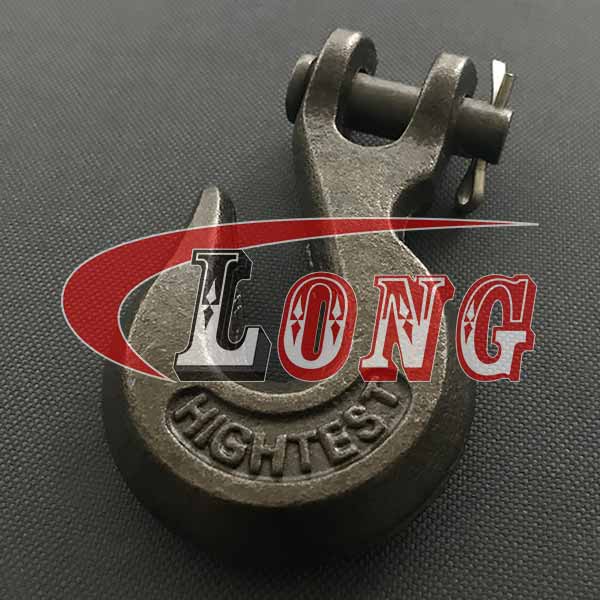

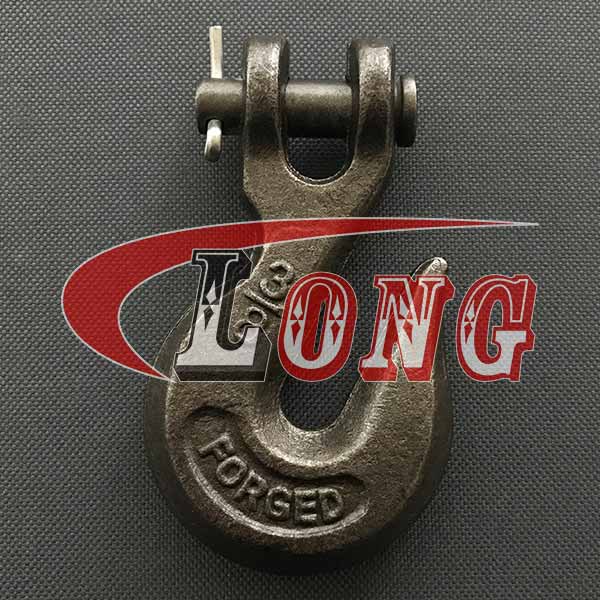

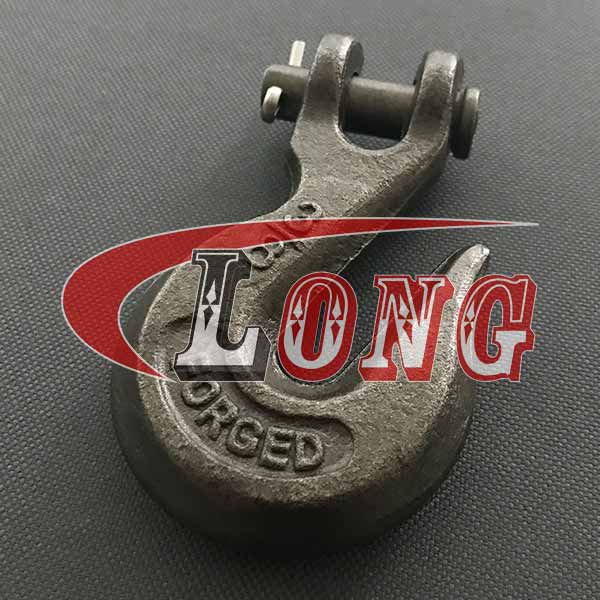

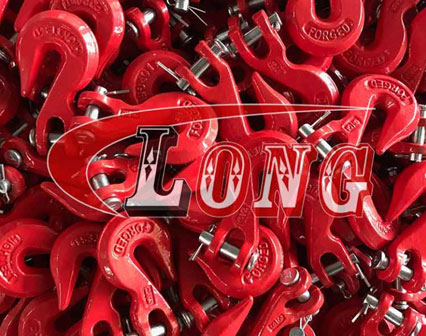

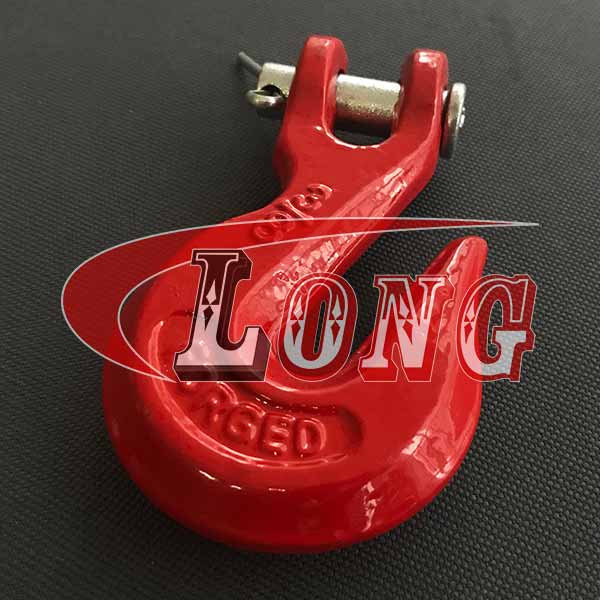

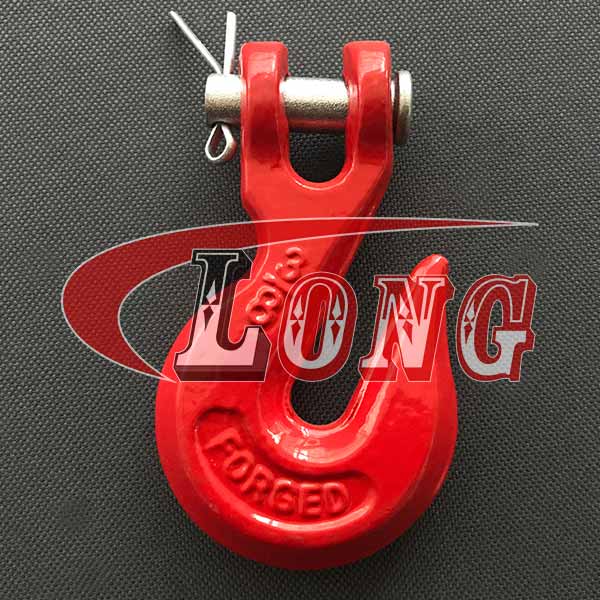

Name: LGRIG® Clevis Grab Hook Grade 43 High Test
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

 LGRIG® Grade 70 Weld-on Grab Hooks

 LGRIG® Bolt on Clevis Mounts with Hardware

 LGRIG® Bolt-on Grab Hooks with Hardware

 LGRIG® Clevis Grab Hook Grade 43 High Test

 LGRIG® Grade 70 Clevis Grab Hook Alloy Steel

 LGRIG® Clevis Slip Hook Grade 43 High Test

 LGRIG® Clevis Slip Hook Grade 70 Alloy Steel

 LGRIG® Clevis Slip Hook with Latch Grade 43 High Test

 LGRIG® Clevis Slip Hook with Latch Grade 70 Alloy Steel

 LGRIG® Eye Grab Hook Grade 43 High Test

 LGRIG® Eye Grab Hook Grade 70 Alloy Steel

 LGRIG® Eye Slip Hook Grade 43 High Test

 LGRIG® Eye Slip Hook Grade 70 Alloy Steel

 LGRIG® Eye Slip Hook with Latch Grade 43 High Test

 LGRIG® Grade 70 Eye Slip Hook with Latch

 LGRIG® Eye Hoist Hook with Latch LG320C Grade 43 High Test

 LGRIG® Eye Hoist Hook with Latch LG320A Grade 70

 LGRIG® Swivel Eye Hoist Hook with Latch Grade 43 High Test

 LGRIG® Swivel Eye Hoist Hook with Latch Grade 70

 LGRIG® Shank Hooks with Latch Carbon Steel

 LGRIG® Shank Hooks with Latch Alloy Steel Grade 70

 LGRIG® Clevis Grab Hook with Wing Grade 70 Australia Standard

 LGRIG® Clevis Grab Hook No Wing Grade 70 Australia Standard

 LGRIG® Clevis Slip Hook Grade 70 Australia Standard

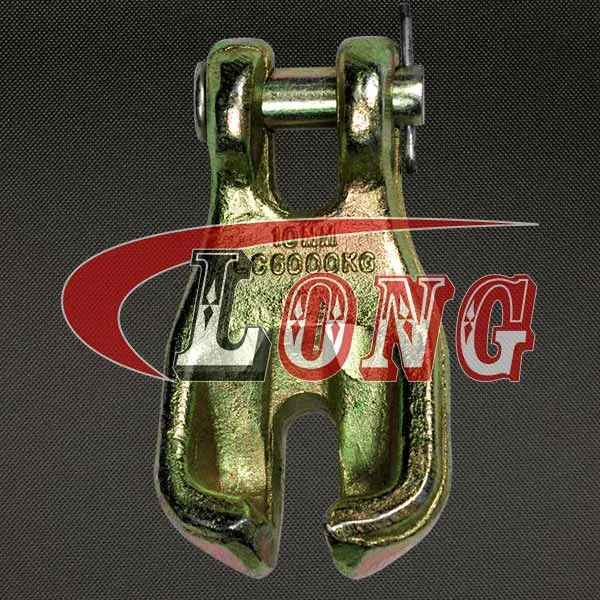

 LGRIG® Clevis Claw Hook Grade 70 Australia Standard

 LGRIG® Lifting Eye Hook with Latch DIN689

 LGRIG® Winch Hook w/ Latch Carbon Steel 3.5T

 LGRIG® Forged Eye Snap Hook with Safety Latch

 LGRIG® Grade 43 Clevis Grab Hook With Latch

 LGRIG® Grade 70 Clevis Grab Hook With Latch

 LGRIG® Grade 70 Clevis Bend Hooks Forged Alloy Steel

 LGRIG® Eye Bend Hook Type A Forged Alloy

 LGRIG® Round Reverse Eye Hooks LG1210

 LGRIG® Eye Twist Hook/Reverse Eye Hooks

 LGRIG® Eye Sling Hook with Triangle ring

 LGRIG® RTJ Cluster Hook Assembly with 3 Hook Cluster

 LGRIG® TMS Horizontal Clamp with Locking Device

 LGRIG® PDQ Single Steel Plate Clamp

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

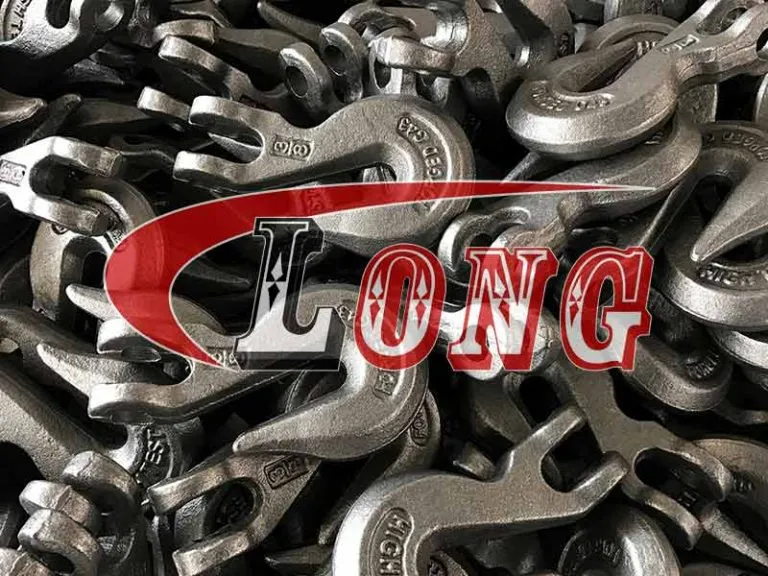

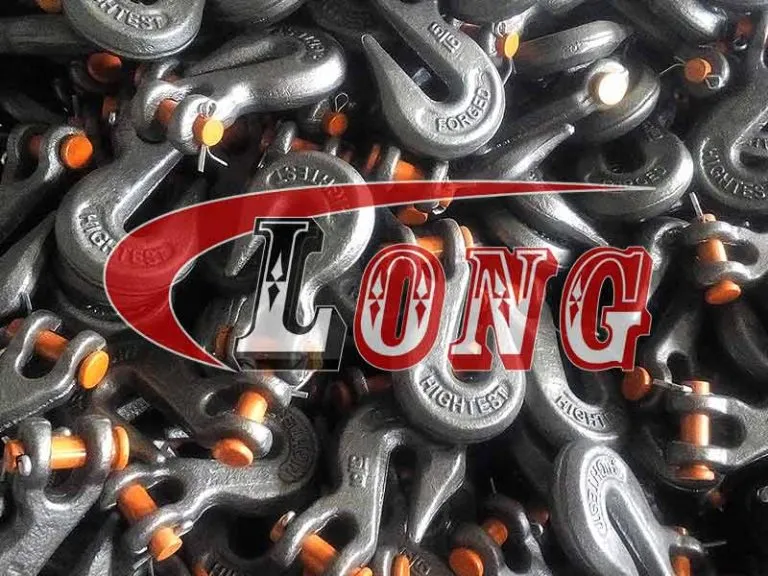

Information of LGRIG® Clevis Grab Hook Grade 43 High Test

Brand	LGRIG®
Standard	Conform to U.S. Federal Specification
Grade	Grade 43
Material	Super Carbon Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Colored
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4” Grade 43 Clevis grab hook
Tips	Finish: Customized according to customers’ requirements
Country of Origin	China

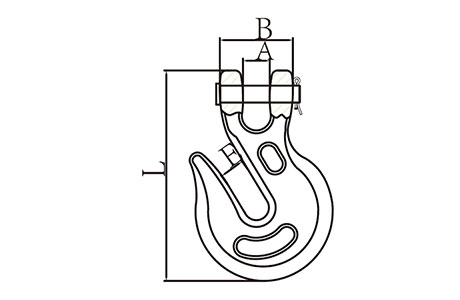

Specifications of LGRIG® Clevis Grab Hook Grade 43 High Test

Part No.	Weight lbs	WLL (lbs)	A±0.5	B±1	E±0.5	L±1
Part No.	Weight lbs	Grade 43	mm
LG43CGH1/4	0.36	2600	8.5	25	9.2	78.5
LG43CGH5/16	0.62	3900	10	30.5	11	93
LG43CGH3/8	1.00	5400	13	35	12.7	114.5
LG43CGH7/16	1.5	7200	17	42	14.5	126
LG43CGH1/2	2.22	9200	19	47	17	144
LG43CGH5/8	4.41	13000	23	56	20	177
LG43CGH3/4	6.50	20200	24	66.5	24	207.5
