Information of LGRIG® Clevis Lug Links Grade 70 AS/NZS 4344

Brand	LGRIG®
Standard	Clevis lug link Grade 70 complies to AS/NZS 4344 standard
Grade	Grade 70
Material	Superior Alloy Steel
Processing	Forged
Finish	Gold zinc plated, Hot Dip Galvanized
Size	8mm, 10mm, 13mm.
Country of Origin	China

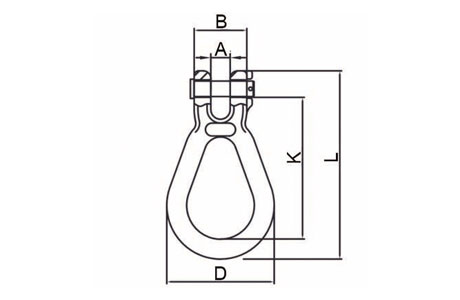

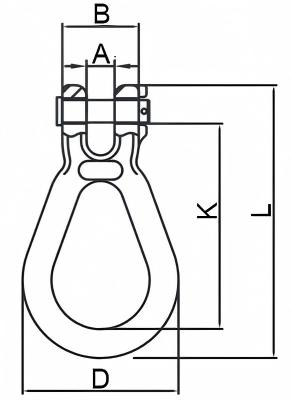

Specifications of LGRIG® Clevis Lug Links Grade 70 AS/NZS 4344


Part No.	Size	N.W	L.C.	B.L	B±1.5	A±0.5	D±2	K±2	L±2
Part No.	Size	KG			mm
LGCLL08	8mm	0.555	3800	7600	35	12	86	108	142
LGCLL10	10mm	0.63	6000	12000	36	13.5	95	119	156
LGCLL13	13mm	0.93	9000	18000	48.5	18	100	132	175
