Information of Clevis Slip Hook Grade 70 Australia Standard

Technical Notes	Clevis Slip Hook Comply with AS 4344
Material	Superior Alloy steel
Processing	Drop Forged, Quenched and Tempered
Finish	Self-Colored, Electric Galvanized
Size	6mm, 8mm, 10mm, 13mm
L.C.	2800KGS, 3800KGS, 6000KGS, 9000KGS

Specifications of Clevis Slip Hook Grade 70 Australia Standard

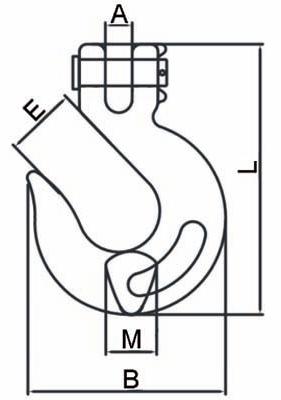

Part No.	Size	N.W	L.C.	B.L	A±0.5	B±1	E±1	M±0.5	L±1.2
Part No.	Size	(KG)	（KG）	(KG)	mm	mm	mm	mm	mm
LGAACSH01	6mm	0.22	2300	4600	9	69	19	12.5	99.5
LGAACSH02	8mm	0.36	3800	7600	11	80	26	14.5	110
LGAACSH03	10mm	0.6	6000	12000	12	95	33	19	126.5
LGAACSH04	13mm	1.185	9000	18000	19	121.5	43	23	167.5
