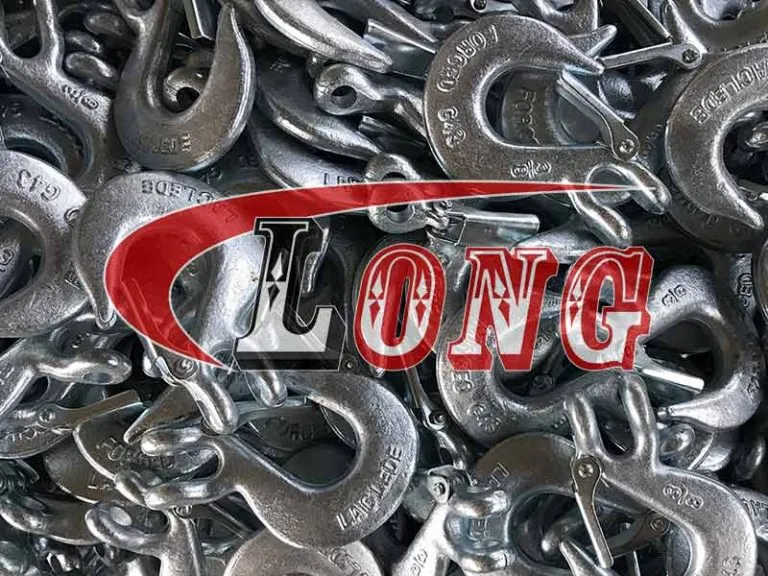

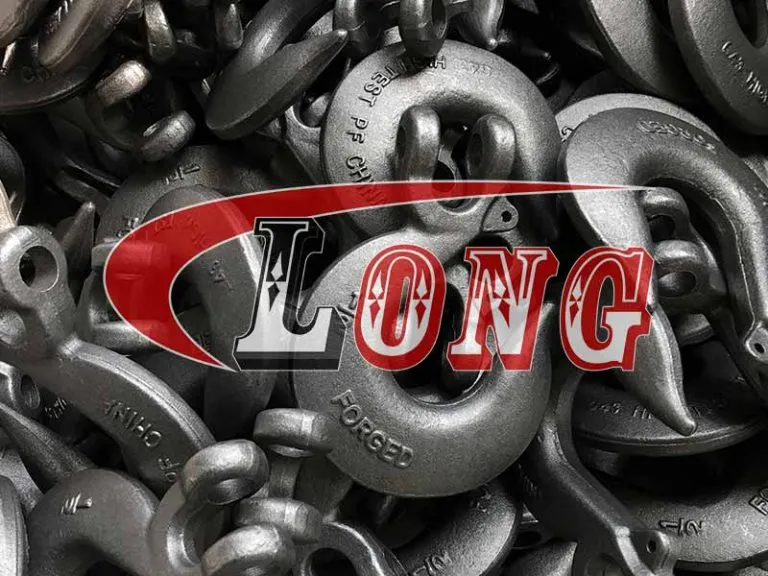

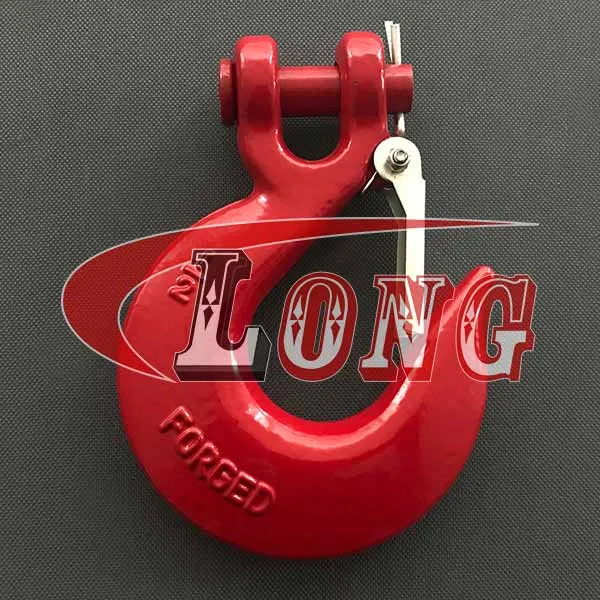

Name: Clevis Slip Hook with Latch Grade 43 High Test
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

 Grade 70 Weld-on Grab Hooks

 Bolt-on Clevis Mounts with Hardware

 Bolt-on Grab Hooks with Hardware

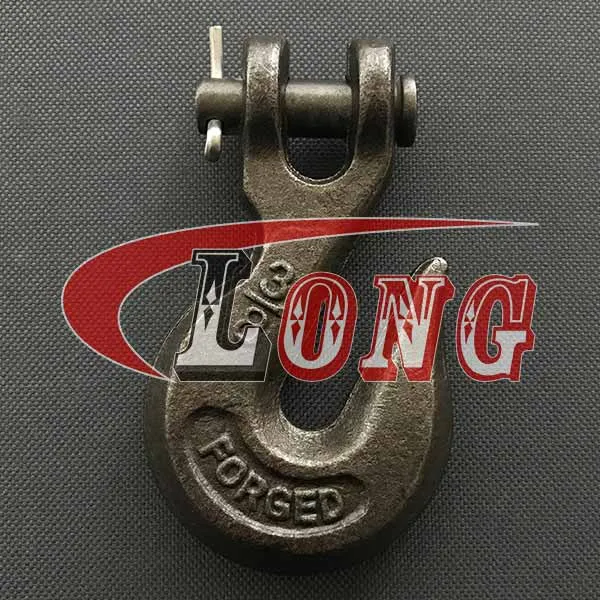

 Clevis Grab Hook Grade 43 High Test

 Alloy Steel Clevis Grab Hook Grade 70

 Clevis Slip Hook Grade 43 High Test

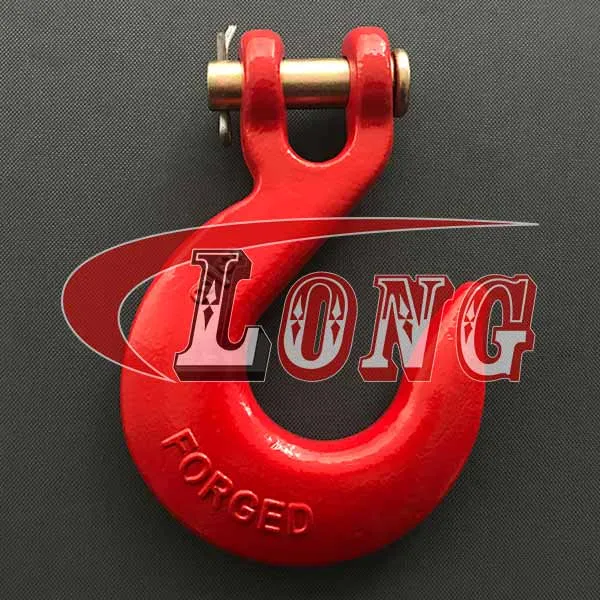

 Clevis Slip Hook Grade 70 Alloy Steel

 Clevis Slip Hook with Latch Grade 43 High Test

 Alloy Steel Clevis Slip Hook with Latch Grade 70

 High Test Eye Grab Hook Grade 43

 Alloy Eye Grab Hook Grade 70

 High Test Eye Slip Hook Grade 43

 Alloy Steel Eye Slip Hook Grade 70

 Eye Slip Hook with Latch Grade 43 High Test

 Grade 70 Eye Slip Hook with Latch

 Eye Hoist Hook with Latch Carbon Steel Grade 43

 Eye Hoist Hook with Latch Alloy Grade 70

 Swivel Eye Hoist Hook Grade 43

 Swivel Lifting Hook with Latch Grade 70

 Shank Hooks with Latch, Carbon Steel

 Alloy Shank Hook with Latch

 Clevis Winged Grab Hook Grade 70 Australia Standard

 Clevis Grab Hook No Wing Grade 70, Australia Standard

 Clevis Slip Hook Grade 70 Australia Standard

 Clevis Claw Hook Grade 70, Australia Standard

 Lifting Eye Hook with Latch DIN689

 Winch Hook w/ Latch Carbon Steel 3.5T

 Forged Eye Snap Hook with Safety Latch

 Clevis Grab Hook with Spring Latch Grade 43

 Clevis Grab Hook with Spring Latch Grade 70

 Forged Alloy Clevis Bend Hook

 Forged Alloy Eye Bend Hook, Type A

 Forged Round Reverse Eye Hook, G1210

 Eye Twist Hook/Reverse Eye Hooks

 Forged Eye Grab Hook with Triangle Ring

 RTJ Cluster Hook Assembly with 3 Hook Cluster

 TMS Horizontal Clamp with Locking Device

 PDQ Single Steel Plate Clamp

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Clevis Slip Hook with Latch Grade 43 High Test

Technical Notes	Clevis slip hook comfrom to U.S. Federal Specification
Material	Superior Carbon Steel
Safety Factor	4: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Dacroment / Stainless steel
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4” Clevis Slip Hook
Tips	Finish: Customized according to customers’ requirements

Specifications of Clevis Slip Hook with Latch Grade 43 High Test

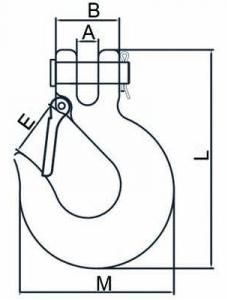

Part No.	Weight lbs	WLL(lbs)	A±1 (mm)	B±1.5 (mm)	L±3 (mm)	M±2 (mm)	E±2 (mm)
Part No.	Weight lbs	G43	A±1 (mm)	B±1.5 (mm)	L±3 (mm)	M±2 (mm)	E±2 (mm)
LG-43-CSH+L-1/4	0.53	2600	11.3	27	103.5	70.5	21.5
LG-43-CSH+L-5/16	0.77	3900	13	32	117	79	25.5
LG-43-CSH+L-3/8	1.26	5400	15.5	40	134	93.5	33.5
LG-43-CSH+L-7/16	2.25	7200	15	44	151.5	111	36
LG-43-CSH+L-1/2	3.06	9200	19	48	168	124.5	37.5
LG-43-CSH+L-5/8	5.18	13000	18.5	58.7	200.5	143	46.5
LG-43-CSH+L-3/4	12.4	20200	30	81	256	188	58
