Information of Closed Spelter Socket G-417 US Type

Technical Notes	Open spelter socket To US FED. SPEC. RR-S-550E, Type B
Material	Superior forged Steel/Superior alloy steel
Finish	Zinc plated / Hot dipped galvanized
Size	1/4”,5/16”~3/8”, 7/16”~1/2”,9/16”~5/8”, 3/4”,7/8”,1”, 1-1/8”,1-1/4”~1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”~1-7/8” 2”~2-1/8”, 2-1/4”~2-3/8”, 2-1/2”~2-5/8”, 2-3/4”~2-7/8”, 3”~3-1/8”, 3-1/4”~3-3/8”, 3-1/2”~3-5/8”, 3-3/4”~4” 6mm, 8mm~9mm, 11mm~12mm, 14mm~16mm, 19mm, 22mm, 25mm, 28mm, 31.5mm~35mm, 38mm, 42mm, 45mm~47.5mm 50mm-53mm, 57mm-60mm, 63mm~66mm, 70mm-73mm, 76mm~80mm, 82mm~85mm, 89mm~92mm, 95mm~100mm
Note	Never to be used for overhead lifting

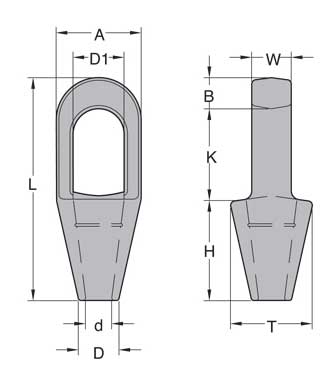

Specifications of Closed Spelter Socket G-417 US Type

Part No.	Rope Dia.		L	B	A	D1	d	D	T	H	L	K	Weight (kg)
Part No.	(in.)	(mm)	mm										Weight (kg)
LG-CSS-US-6	1/4	6	114.3	12.7	38.1	22.35	9.65	17.53	39.62	57.15	12.7	44.45	0.23
LG-CSS-US-8-9	5/16~3/8	8~9	123.95	15.75	42.93	24.64	12.7	20.57	42.93	57.15	17.53	50.8	0.23
LG-CSS-US-11-12	7/16~1/2	11~12	138.18	17.53	50.8	29.64	14.22	23.88	47.75	63.5	22.35	57.15	0.68
LG-CSS-US-14-16	9/16~5/8	14~16	160.27	20.57	66.8	35.81	17.53	28.45	60.45	76.2	25.4	63.5	1.13
LG-CSS-US-19	3/4	19	192.02	26.92	76.2	42.16	20.57	31.75	69.85	90.42	31.75	76.2	1.92
LG-CSS-US-22	7/8	22	222.25	31.75	92.2	47.75	23.88	38.1	81.55	101.6	38.1	88.9	3.29
LG-CSS-US-25	1	25	250.95	35.06	104.9	58.42	28.7	44.45	95.25	112.78	44.45	101.6	4.76
LG-CSS-US-28	1-1/8	28	279.4	38.1	114.3	65.02	31.75	50.8	104.9	127	50.8	114.3	6.46
LG-CSS-US-31.5-35	1-1/4~1-3/8	31.5~35	307.85	41.4	134.62	71.37	38.1	57.15	120.65	139.7	57.15	127	8.96
LG-CSS-US-38	1-1/2	38	354.08	49.28	135.38	81.03	41.4	69.85	133.35	152.4	63.5	152.4	13.25
LG-CSS-US-42	1-5/8	42	384.3	54.1	146.05	82.55	44.45	76.2	139.7	165.1	69.85	165.1	16.32
LG-CSS-US-45-47.5	1-3/4~1-7/8	45~47.5	438.15	55.63	171.45	95.25	50.8	79.5	162.05	190.5	76.2	192.02	28.98
LG-CSS-US-50-53	2~2-1/8	50-53	495.3	61.96	193.8	111.25	57.15	95.25	187.45	215.9	82.55	217.41	35.84
LG-CSS-US-57-60	2-1/4~2-3/8	57-60	536.7	66.8	215.9	127	63.5	101.6	209.55	228.6	92.2	241.3	47.64
LG-CSS-US-63-66	2-1/2~2-5/8	63~66	596.9	79.25	241.3	139.7	73.15	114.3	234.95	247.65	101.6	269.75	63.5
LG-CSS-US-70-73	2-3/4~2-7/8	70-73	644.65	79.25	273.05	158.75	79.25	123.95	258.83	279.4	123.95	285.75	99.8
LG-CSS-US-76-80	3~3-1/8	76~80	685.8	82.55	292.1	171.45	85.85	133.25	292.1	304.8	133.35	298.45	125.2
LG-CSS-US-82-85	3-1/4~3-3/8	82~85	742.95	101.6	311.15	184.15	91.95	146.05	311.15	330.2	146.05	311.15	141.98
LG-CSS-US-89-92	3-1/2~3-5/8	89~92	787.4	787.4	330.2	196.85	98.55	165.1	330.2	355.6	158.75	330.2	181.44
LG-CSS-US-95-100	3-3/4~4	95-100	844.55	844.55	361.95	215.9	107.95	184.15	361.95	381	177.8	355.6	245.85
