Trawling Shackle Dee Type Square Head Pin Self-colored LG RIGGING®

Trawling Shackle Dee Type Square Head Pin Self-colored, also called straight shackle, D shackle or trawl shackle.

This Commercial Self Colour Square Head Dee Shackle is comform to European type, made from superior mild steel, after forging , and you can choose the surface finish: self-colored, zinc plated and hot dip galvanized.

This Shackles Self Coloured Square Head Pin Dee Type, we have 5mm , 6mm , 8mm , 9mm , 10mm , 12mm , 14mm , 16mm , 19mm , 22mm , 25mm .

And we can also customized as per your drawing, you could just send the technical specification to us e-mail box: sales@lg-lifting.com

These Commercial shackle with square head pin Self Coloured, commonly used in the marine industry for trawling purposes during fishing expeditions, for commercial use only.

The square head pin prevents tangling of ropes, etc. compared to ordinary release pins.

Dee Shackles Self Coloured Square Head, used as a connecting fitting for chains, wires, ropes, etc., or for terminal fitting connectors.

Trawling Gear
Shackles
Boat Fittings

Information of Dee Shackle Chain Shackle Square Head Pin Self-colored

BrandLG RIGGING®

Technical Notes

European Type

Material

Superior Mild Steel

Shackle ShapeDee Shackle (Straight Shackle)
PinSquare Head Pin

Processing

Forged

Finish

Self-colored

Size

5mm, 6mm, 8mm, 9mm, 10mm , 12mm, 14mm, 16mm, 19mm, 22mm , 25mm

Customized size is also available.

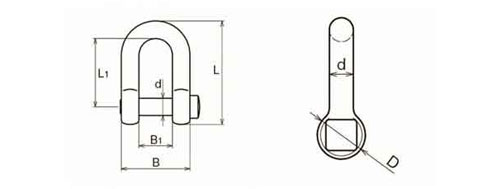

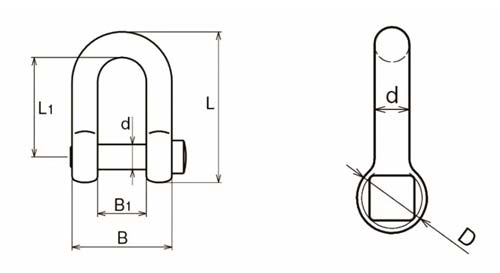

Specifications of Dee Shackle Chain Shackle Square Head Pin Self-colored


Part No.

Size

d

L

L1

B

B1

D

Thread dia.

Unit Weight

Work Load Limit

mm

mm

mm

mm

mm

mm

mm

mm

g

kg

LGSHDS01

5

5

28.75

18.5

20

10

10.5

M5

15

70

LGSHDS02

6

6

38

26

25

13

12

M6

26

140

LGSHDS03

8

8

50

34

33

17

17

M8

63

220

LGSHDS04

9

9

54

36

36

18

18

W3/8

83

270

LGSHDS05

10

10

57.5

38

38

18

19

M10

108

320

LGSHDS06

12

12

71

47

49

25

24

M12

195

400

LGSHDS07

14

14

91

63

56

28

28

M14

323

600

LGSHDS08

16

16

92.5

61

64

32

31

M16

450

900

LGSHDS09

19

19

112

73.5

76

38

39

M20

766

1,100

LGSHDS10

22

22

130

86

88

44

44

M22

1,181

1,600

LGSHDS11

25

25

145

95.5

100

50

49

M24

1,690

2,200


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
