Information of LGRIG® DIN 1478 Turnbuckle With Stub Ends Galvanized

Brand	LGRIG®
Standard	Pipe body Turnbuckle To DIN1478
Material	Body: Cold-drawn Seamless Steel Tube ( C1020 ) Stub End : C1020 / C1045
Finish	Electric Galvanzied / Hot dip galvanized
Size	M6 M8 M10 M12 M16 M20 M22 M24 M30
Important Notes	Not for lifting.Only suitable for using in tension
Country of Origin	China

Tips:
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end.

Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.

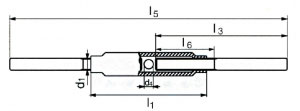

Specifications of LGRIG® DIN 1478 Turnbuckle With Stub Ends Galvanized


Part No.	d1 (mm)	d4 (mm)	l1 (mm)	l3 (mm)	l5 (mm)	l6 (mm)	ad (mm)	Weight kg
LG1478SE06	M6	6	110	120	240-330	65	90	14
LG1478SE08	M8	8	110	120	240-325	65	85	18
LG1478SE10	M10	8	125	150	300-395	75	95	32
LG1478SE12	M12	10	125	150	300-390	75	90	45
LG1478SE16	M16	10	170	200	400-520	100	120	90
LG1478SE20	M20	12	200	220	400-540	120	140	150
LG1478SE24	M24	12	255	260	520-700	150	180	275
LG1478SE30	M30	16	255	260	520-680	160	160	394
