DIN763 Stainless Steel Chain Long Link LG RIGGING®

DIN763 Stainless Steel Chain Long Link LG RIGGING®, as known as stainless steel DIN763.

Stainless Steel Chain – Design and dimensions according to DIN 763, made from marine grade stainless steel AISI304 or AISI316 and highly polished.

Stainless steel Long Link chain is chiefly used in areas where exposure to water/sea water such as boating, yachting and the marine environment.

We supply stainless steel chain from 1.5mm to 20mm gauges, either as complete bundles up to 50 metres in length, or by the metre.

Perfect for use in exterior and corrosive environments.

Breaking load is more than the galvanized chains.

Trawling Gear
Shackles
Boat Fittings

Information of DIN763 Stainless Steel Chain Long Link LG RIGGING®

Brand
LG RIGGING®

Standard

Stainless steel chain Conform to DIN763

Material

Type 316 or 304 Stainless Steel

Processing

Welded

Finish

Highly Polished

Size

1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 20mm

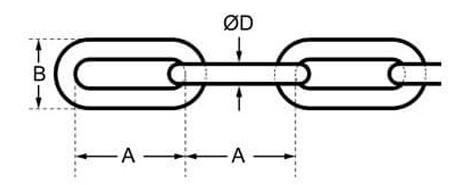

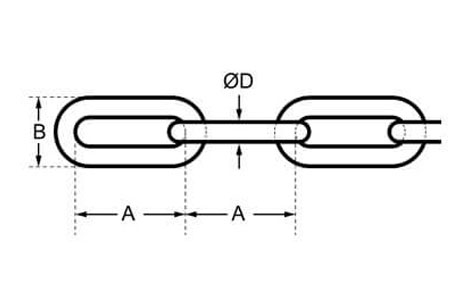

Specifications of DIN763 Stainless Steel Chain Long Link LG RIGGING®


Part No.

ØD

A

B

SWL

(mm)

(mm)

(mm)

(Kg)

LGSS76301

1.5

12

6

15

LGSS76302

2

22

8

20

LGSS76303

3

26

12

58

LGSS76304

4

32

16

105

LGSS76305

5

35

20

166

LGSS76306

6

42

24

208

LGSS76307

8

52

32

416

LGSS76308

10

65

40

666

LGSS76309

13

82

52

1050

LGSS76310

16

100

64

2400

LGSS76311

20

120

75

3750


Please note we supply a huge variety of stainless steel parts.

Both stainless steel chains and carbon/alloy chains are available.
