Information of Drop Forged Wire Rope Clips G450 Stainless Steel US Type

Technical Notes	Drop forged steel cable clamps Meets the US Federal Specification FF-C-450
Material	Stainless Steel 304/316
Processing	Drop Forged
Finish	Highly Polishing
Size	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8″ , 3/4”, 7/8”, 1″ , 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2” Wire Rope Clips

Specifications of Drop Forged Wire Rope Clips G450 Stainless Steel US Type

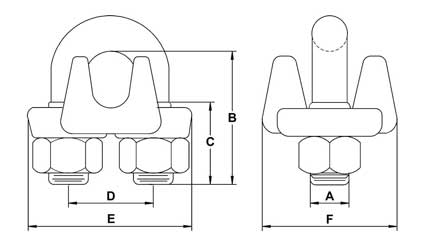

Part No.	SIZE	DEMENSION						WEIGHT
								/100PCS
		A	B	C	D	E	F	(KGS)
LG-SS-DF-G450-1/8	1/8”	7/32	18	11	12	23	20	3
LG-SS-DF-G450-3/16	3/16″	1/4”	24	14	15	29	23	5
LG-SS-DF-G450-1/4	1/4”	5/16”	26	15	19	36	29	8.5
LG-SS-DF-G450-5/16	5/16”	3/8”	35	19	22	43	33	13
LG-SS-DF-G450-3/8	3/8”	7/16”	38	19	25	49	41	20
LG-SS-DF-G450-7/16	7/16”	1/2”	47	25	30	57	46	32
LG-SS-DF-G450-1/2	1/2”	9/16”	47	25	30	58	48	32
LG-SS-DF-G450-9/16	9/16”	9/16”	57	32	33	63	52	44
LG-SS-DF-G450-5/8	5/8″	9/16”	60	32	33	63	52	44
LG-SS-DF-G450-3/4	3/4”	5/8”	70	36	38	72	56	63
LG-SS-DF-G450-7/8	7/8”	3/4”	79	41	44	80	62	93
LG-SS-DF-G450-1	1″	3/4”	89	45	48	88	66	110
LG-SS-DF-G450-1-1/8	1-1/8”	3/4”	98	51	51	91	71	120
LG-SS-DF-G450-1-1/4	1-1/4”	7/8”	108	56	59	105	80	170
LG-SS-DF-G450-1-3/8	1-3/8”	7/8”	118	56	60	106	80	200
LG-SS-DF-G450-1-1/2	1-1/2”	7/8”	125	60	66	113	87	220
