fist grip wire rope clips
fist grip wire rope clips

Fist Grip Wire Rope Clips Hot Dip Galvanized

Fist Grip Wire Rope Clips Hot Dip Galvanized, also called Twin Base Saddle Clamp.

fist grip clamp are used in combination with wire rope and a thimble to make a secure wire loop. Clips are galvanized for corrosion resistance. Our range of fist grip wire rope clip is available in standard as well as customized sizes.

Entire clip is galvanized to resist corrosive and rusting action.

Saddle is made from forged steel.

Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation.

Fist Grip Clips are preferable to U-Boltclips. They can not be installed incorrectly (upside down) and they cause less damage to the rope. It is easier to torque the nuts from both sides.

Also, fewer clips are required per splice as compared to U-Bolt Clips. Fist Grip Clips have to be re-torqued after a test load. Installation must be done by a TRAINED and COMPETENT person.

Fist grip cable clamps Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and materialtraceability, not addressed by ASME B30.26.

Wire rope fist grip assembled with standard heavy hex nuts.

Get A Quote
Products
Trawling Gear
Fishing Net Float & Buoy
Trawling Swivel
Trawling Shackle
Grade80 / Grade100
Rope Thimbles
Tools
Hooks / Links / Rope Fittings
Trawling Chain
Synthetic Rope
Lifting Sling
Trawl Block
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Clip DIN741 Galvanized Malleable
Malleable Wire Rope Clip DIN1142 (EN13411-5)
Malleable Wire Rope Clip US Standard
Drop Forged Wire Rope Clips US.Fed.Spec.
Wire Rope & Cable Grip 0.5Ton 1Ton 2Ton 3Ton
Simplex Wire Rope Grips Zinc Plated
Duplex Wire Rope Clips/Grips Zinc plated
Australian Standard Wire Rope Grips AS2076
Closed Spelter Socket G-417 US Type
Open Spelter Wire Rope Socket G-416 US Type
Fist Grip Wire Rope Clips Hot Dip Galvanized
Drop Forged Wire Rope Clips Italy Type
Deka Wire Rope Clips Galvanized Malleable Cast Iron
Drop Forged Wire Rope Clips G450 Stainless Steel US Type for Wire Rope Clips & Grips
American Wire Rope Cable Grip
Japanese Type Wire Rope Cable Grip
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Fist Grip Wire Rope Clips Hot Dip Galvanized

Technical Notes

Fist grip Meets Federal Specification FF-C-450 Type III, Class 1

Processing

Drop Forged

Finish

Electric Galvanized / Hot Dip Galvanized

Size

3/16″-1/4″, 5/16”, 3/8”, 7/16″-1/2″, 9/16″-5/8″, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8″-1-1/2″

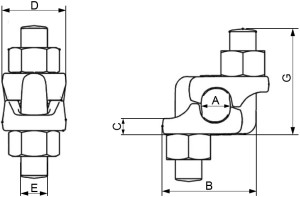

Specifications of Fist Grip Wire Rope Clips Hot Dip Galvanized

Specifications of Fist Grip Wire Rope Clips Hot Dip Galvanized


Part No.

Rope Size

Dimensions (mm)

(inch)

A

B

C

D

E

G

LGWRCF01

3/16-1/4

8

32

6

24

3/8-16UNC

35

LGWRCF02

5/16”

8

35

7

28

3/8-16UNC

40

LGWRCF03

3/8”

11

41

7.5

28

7/16-14UNC

46

LGWRCF04

7/16-1/2

14

48

8.5

32

1/2-13UNC

56

LGWRCF05

9/16-5/8

17

58

9.5

38

5/8-11UNC

68.5

LGWRCF06

3/4”

21

68

11

46

3/4-10UNC

85

LGWRCF07

7/8”

24

75.5

12

54

3/4-10UNC

88

LGWRCF08

1”

27

78

14

57

3/4-10UNC

98

LGWRCF09

1-1/8”

30

88

15

60

7/8-9UNC

106

LGWRCF10

1-1/4”

32

90

16

63.5

7/8-9UNC

110

LGWRCF11

1-3/8 -1-1/2”

38

105

18

76

7/8-9UNC

141


China LG Supply has a large size selection of wire rope clips in forged steel, malleable, and stainless steel materials.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86-0532-66851176
E-mail:
Add:
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
Request a Free Quote
Upload
or drag files here.

Related Wire Ropes Clips & Grips

Australian Standard Wire Rope Grips AS2076
Australian Standard Wire Rope Grips AS2076
Drop Forged Wire Rope Clips US.Fed.Spec.
Drop Forged Wire Rope Clips US.Fed.Spec.
Japanese Type Wire Rope Cable Grip
Japanese Type Wire Rope Cable Grip
Drop Forged Wire Rope Clips G450 Stainless Steel US Type for Wire Rope Clips & Grips
Drop Forged Wire Rope Clips G450 Stainless Steel US Type for Wire Rope Clips & Grips
Malleable Wire Rope Clip US Standard
Malleable Wire Rope Clip US Standard
Simplex Wire Rope Grips Zinc Plated
Simplex Wire Rope Grips Zinc Plated
Open Spelter Wire Rope Socket G-416 US Type
Open Spelter Wire Rope Socket G-416 US Type
American Wire Rope Cable Grip
American Wire Rope Cable Grip
China LG RIGGING's Updates
Exhibition in Chile 2024
29
Oct
2024
Exhibition in Chile 2024 Learn More
Exhibition in Cologne, Germany 2024
28
Oct
2024
Exhibition in Cologne, Germany 2024 Learn More
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble
25
Apr
2024
The Crucial Link Between the Lifespan of Ropes and the Rope Thimble Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware
Resources
FAQs About LG RIGGING® Document Download Blog
About
Company News Industry News
Contact Us
A408, Sungwon Foreign Trade Center, No.187 Heilongjiang Middle Road, Chengyang District, Qingdao, China.
sales@lg-lifting.com
+86-0532-66851176
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86-0532-66851176
