Information of Galvanized Wire Rope Thimble Light Duty US Type

Technical Notes	U.S. Federal Specification (Federal Specification FF-T-276b Type II)
Material	Superior Carbon Steel
Processing	Machining
Finish	Electric Galvanized
Size	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”-1-1/4”
Tips	Color Code: Customized according to customers’ requirements

Specifications of Galvanized Wire Rope Thimble Light Duty US Type

Specifications of G-411 Galvanized Wire Rope Thimble

Part No.	Rope Dia. (in.)	Weight/100 (lbs.)	Dimensions (in.)

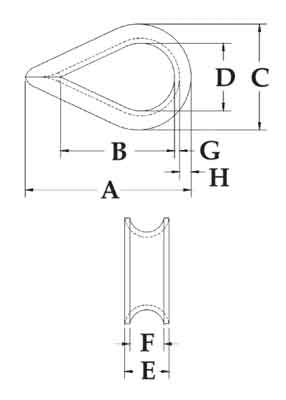

Part No.	Rope Dia. (in.)	Weight/100 (lbs.)	A	B	C	D	E	F	G	H
LG-G411-Tb-1/8	1/8	3.5	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13
LG-G411-Tb-3/16	3/16	3.5	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13
LG-G411-Tb-1/4	1/4	3.5	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13
LG-G411-Tb-5/16	5/16	4	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13
LG-G411-Tb-3/8	3/8	6.7	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16
LG-G411-Tb-1/2	1/2	12.5	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19
LG-G411-Tb-5/8	5/8	34.5	3.5	2.25	2.38	1.38	0.91	0.66	0.13	0.34
LG-G411-Tb-3/4	3/4	47.1	3.75	2.5	2.69	1.63	1.08	0.78	0.14	0.34
LG-G411-Tb-7/8	7/8	84.6	5	3.5	3.19	1.88	1.27	0.94	0.16	0.44
LG-G411-Tb-1/1	1	97.5	5.69	4.25	3.75	2.5	1.39	1.06	0.16	0.41
LG-G411-Tb-1-1/8	1-1/8-1-1/4	175	6.25	4.5	4.31	2.75	1.75	1.31	0.22	0.5
