LGRIG® Grade 80 Connecting Link U.S. Type

LGRIG® Grade 80 Connecting Link U.S. Type, also known as Component Connecting Link, Hammerlocks, and some customers called it Coupling link, or Hammerlocks Coupling Links.

Hammerlocks Connecting Link, engineered from quenched and tempered Grade 80 alloy steel, these connecting links feature a unique spring bush mechanism that secures the pin without specialized tools—enabling rapid assembly with standard hammers while preventing accidental disengagement.

The corrosion-resistant white painted finish ensures durability across demanding applications, including construction lifting, maritime rigging, manufacturing transport, and energy sector operations, with full compliance to ASME B30.26 safety standards for load integrity and environmental resilience.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
G80 Hooks
G80 Lifting Points
G80 Links, Rings
G80 Swivels
G80 Other Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Grade 80 Connecting Link U.S. Type

Brand

LGRIG®

Standard

G80 Connecting Link conform to U.S. Federal Specification

Meets or exceeds ASTM A952 / A952M & ASME B30.26 requirements.

Material

Super Alloy Steel

Δ Note

Ultimate load is 4 times the Working Load Limit

Processing

Drop Forged + Quenched and Tempered

Finish

Powder Coated

Size

1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/4”

Tips

Color Code: Customized according to customers’ requirements

Country of Origin

China


Specifications of LGRIG® Grade 80 Connecting Link U.S. Type


Part No.

WEIGHT

/lbs

WLL

/lbs

B.L.

/lbs

A±1.5

L±2.5

K±2

W±l

H±1

C±0.2

D±0.3

8LGCLUS1/4

0.286

3500

14000

16.5

67

51

8

13

4

4

8LGCLUS5/16

0.32

4500

18000

17

78.5

58.5

10

14.5

6

6.6

8LGCLUS3/8

0.73

7100

28400

22

87.6

63.6

12

17

6.2

8.1

8LGCLUS1/2

1.67

12000

48000

28.5

115.5

85.5

15

21.6

7.8

7.8

8LGCLUS5/8

2.86

18100

72400

33

143

106

18.5

26

9.5

10

8LGCLUS3/4

5

28300

113200

41

162

116

23

32

12

13

8LGCLUS7/8

7.5

34200

136800

50.5

188.5

136.5

26

38

13

15.5

8LGCLUS1

11.03

47700

190800

57

214.5

152.5

31

44

15

16.5

8LGCLUS1/4

20.38

72300

289200

65

265

188.7

38

54

20

20

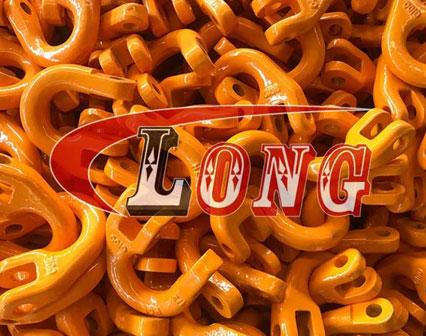

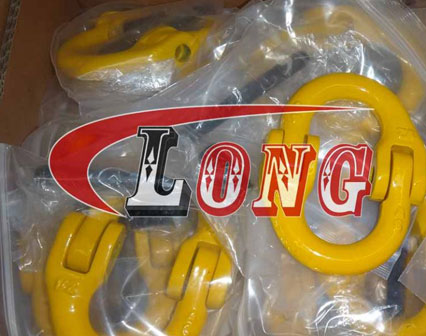

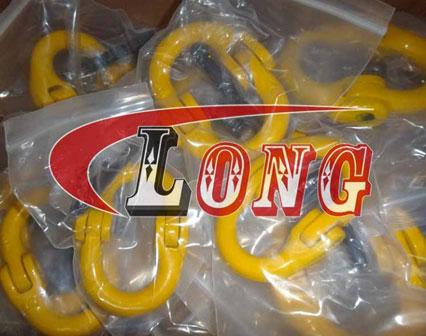

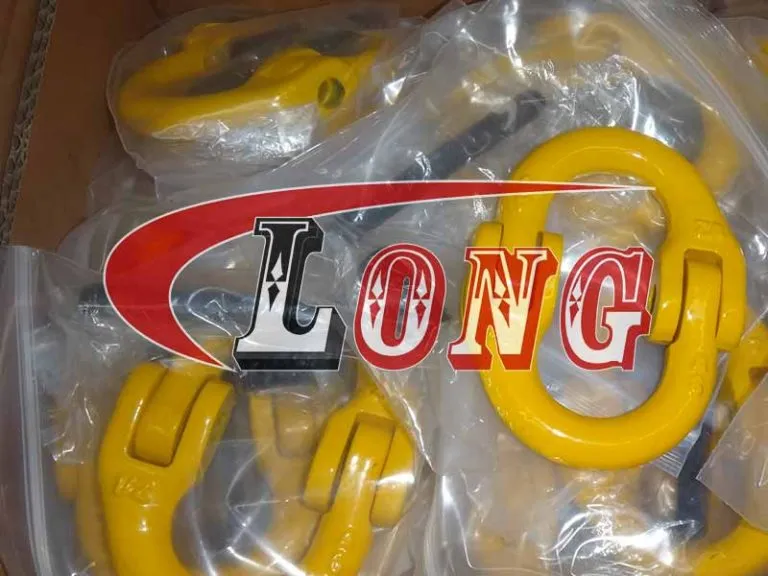

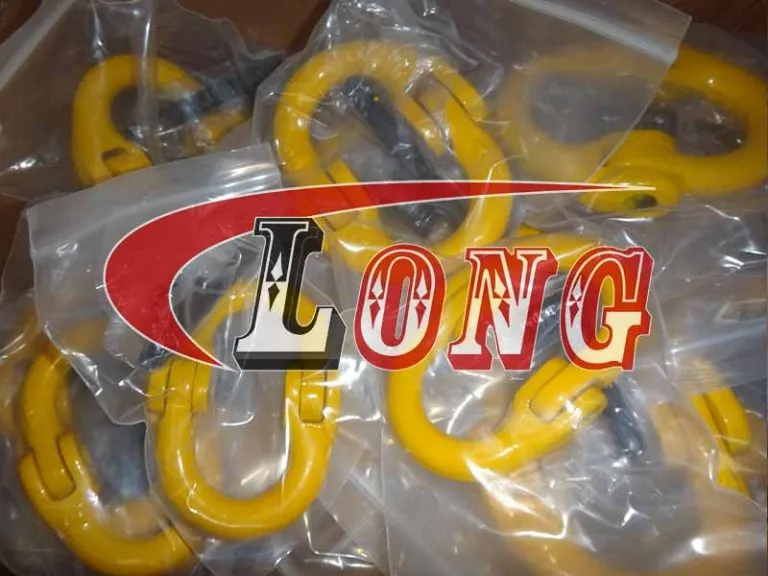

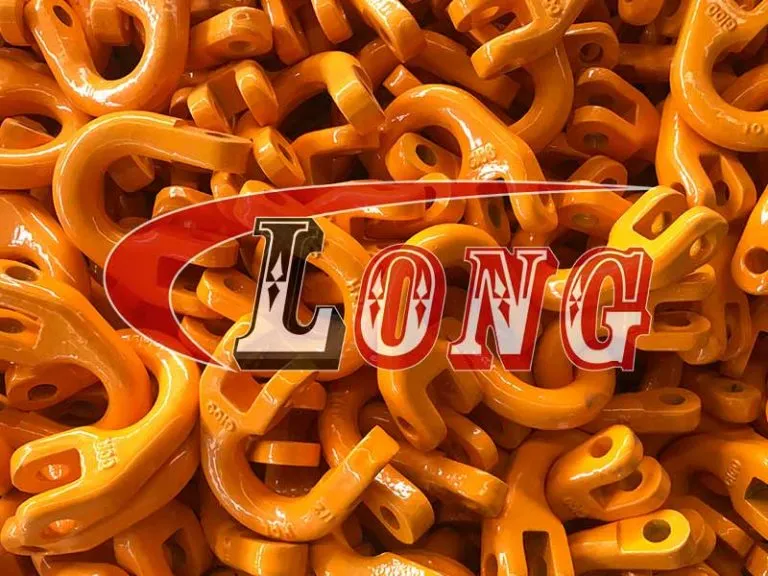

Bulk Photos of LGRIG® Grade 80 Connecting Link U.S. Type

lgrig® grade 80 connecting link u.s
lgrig® grade 80 connecting link u.s
lgrig® grade 80 connecting link u.s
We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related G80 Links, Rings

LGRIG® Grade 80 Omega Link
LGRIG® Grade 80 Omega Link
G80 Master Link Assembly European Type EN1677-4 / DIN5688-3
G80 Master Link Assembly European Type EN1677-4 / DIN5688-3
LGRIG® Grade 80 Enlarged/Wider Master Link Assembly
LGRIG® Grade 80 Enlarged/Wider Master Link Assembly
G80 Master Link European Type EN1677-4/DIN5688-3
G80 Master Link European Type EN1677-4/DIN5688-3
LGRIG® Grade 80 Omega Link Long
LGRIG® Grade 80 Omega Link Long
LGRIG® G80 Chain Rope Connector BZ Type
LGRIG® G80 Chain Rope Connector BZ Type
LGRIG® Grade 80 Chain Connector COG European Type
LGRIG® Grade 80 Chain Connector COG European Type
LGRIG® Grade 80 Master Link Assembly U.S. Standard
LGRIG® Grade 80 Master Link Assembly U.S. Standard
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
