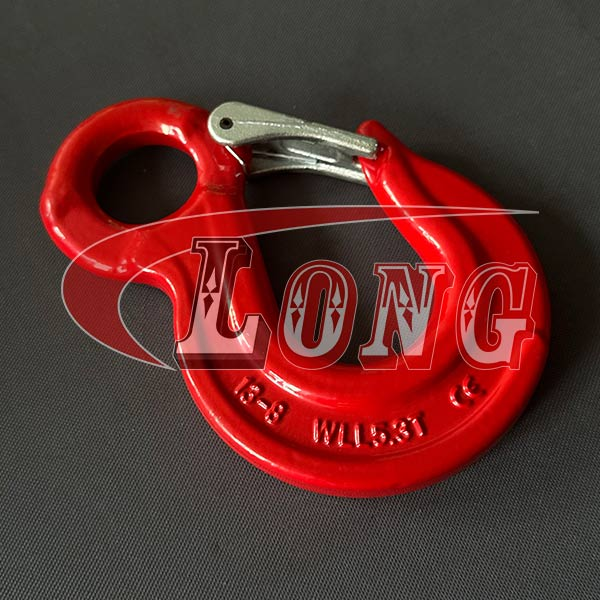

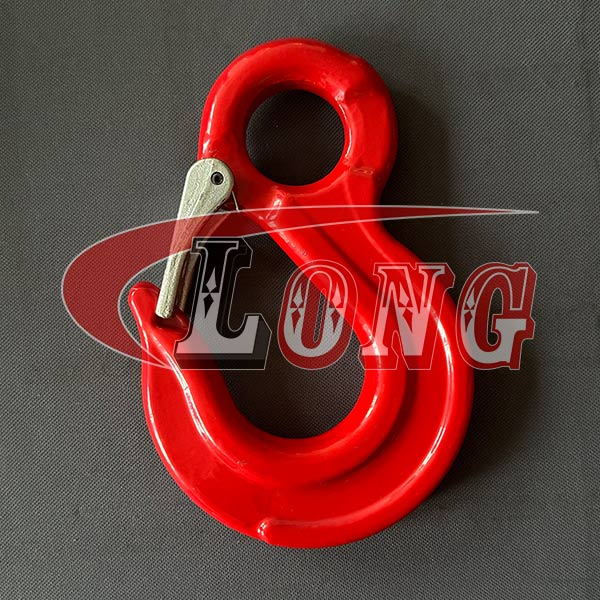

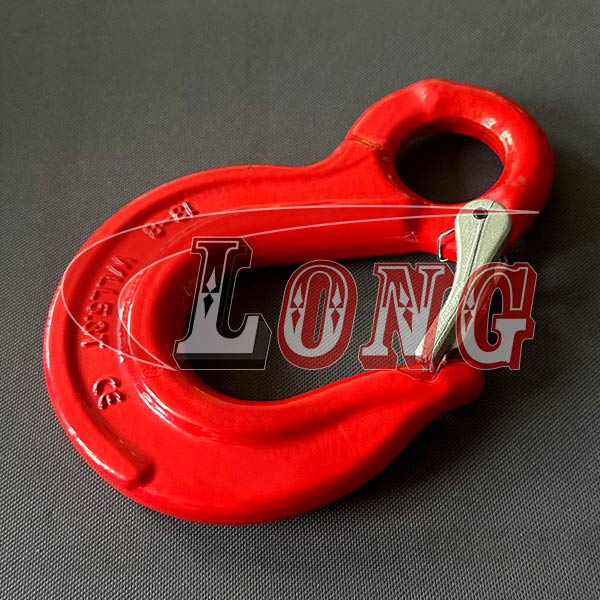

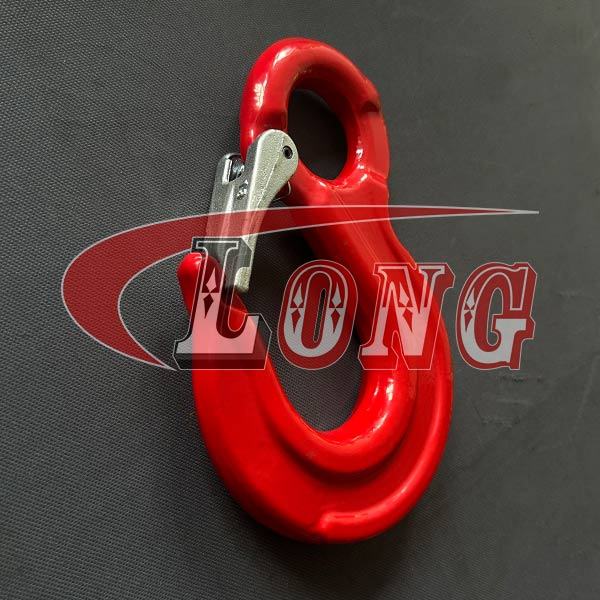

Name: G80 Eye Sling Hook with Safety Latch GH Type LG RIGGING®
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Grade80 / Grade100 

 SAFETY HOOKS BK EYE TYPE G100 WITH RECESSED TRIGGER LG RIGGING®

 G80 Eye Self-locking Hook Dacromet

 G80 Kelly's Eyes 8-Shaped Link for Fishing Alloy Steel LG RIGGING®

 G80 Kelly's Eye

 G80 Forged Recessed Link-LG RIGGING®

 G80 Viking Split Link Alloy Steel

 G80 Viking G Hook Fishing & Trawling Gear

 OFG Hook G80 Alloy Steel

 Alloy Forged G Hook Egg Shaped Fishing & Trawling Gear

 EVR Ring Alloy Forged – 8T/10T

 Alloy Forged EVR Ring–15T/20T

 Connecting Link G80 for Fishing

 G80 Chain Connector European Type

 G80 Connecting Link for Webbing Sling

 Grade 80 Forged Round Ring LG RIGGING®

 G80 Master Link European Type EN1677-4/DIN5688-3

 G80 Master Link Assembly European Type EN1677-4 / DIN5688-3

 G80 Master Link Assembly European Type EN1677-4 DIN5688-3

 G80 Swivel Self-Locking Hook (Improved)

 G80 Swivel Hoist Hook with Latch

 G80 Eye Self-locking Hook (Improved)

 G80 Eye Sling Hook with Latch GS Type China LG RIGGING®

 G80 Eye Sling Hook with Safety Latch GH Type LG RIGGING®

 Alloy G Hook-Made of Cutting Steel Plate

 Eye Grab Hook G80

 G80 Eye Grab Hook US Type

 G80 Clevis Self-Locking Hook (Improved)

 G80 Clevis Sling Hook with Latch

 G80 Shortening Grab Hook Clevis

 G80 Clevis Grab Hooks U.S. Type

 Grade 100 Forged Alloy Master Link

 Master Link Assembly Grade 100

 G100 Connecting Link European Type

 G100 Eye Self Locking Hook

 G100 Clevis Self Locking Hook

 Grade 100 Swivel Self Locking Hook Special Type

 G100 Cradle Eye Grab Hook

 G100 Cradle Clevis Grab Hook

 Large Opening Hook Eye Sling Hook G100

 Grade 80 Alloy Lifting Chains EN818-2

 Grade 100 Alloy Lifting Chain, EN818-2

 G80 Alloy Lifting Chain EN818-7

 Ratchet Chain Load Binder G100 with Safety Hook

 Grade 80 Ratchet Load Binder, EN 12195-3

 Ratchet Load Binders Grade 70 US.Fed.Spec Grade Series

 Ratchet Load Binder with Eyes G70 US.Fed.Spec Grade Series

 Tension Lever with Chain and Hook Marine Lashing Equipment for Grade80 / Grade100

Trawling Swivel 

Trawling Shackle 

Hooks / Links / Rope Fittings 

Rope Thimbles 

Tools 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Fishing Net Float & Buoy 

Lifting Sling 

Trawl Block 

Wire / Chain Toggles 

Anchors & Fittings 

Dock Products 

Safety Appliance 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of G80 Eye Sling Hook with Safety Latch

Brand	LG RIGGING^®
Technical Notes	European Type
Material	Superior Alloy Steel.
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered. Latch : Forged / Casted / Stamped
Finish	Body: Powder coated Latch: Hot dip galvanized / Galvanized / Dacroment / Stainless steel
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm, 32mm
Tips	Color Code: Customized according to customers' requirements
Note	Use Only Grade 80 Attachments For Overhead Lifting

Specifications of G80 Eye Sling Hook with Safety Latch


Part No.	WEIGHT /kg	W.L.L. (T)	B.L. (T)	B±1.5	E±2	D±2	A±3	L±2
8LGESHGH06	0.3	1.12	4.48	9	24	21	20	108
8LGESHGH7/8	0.4	2	8	11	30	26	25	133
8LGESHGH10	0.9	3.15	12.6	15	34	39	38	167
8LGESHGH13	1.7	5.3	21.2	19	39	54	43	213
8LGESHGH16	3.2	8	32	23	46	64	50	255
8LGESHGH20	5.8	12.5	50	24	40	80	62	305
8LGESHGH22	8.5	15	60	32	71	80	62	348
8LGESHGH26	13	21.2	84.8	35	81	82	64	394
8LGESHGH32	17	31.5	126	37	102	112	88	480
