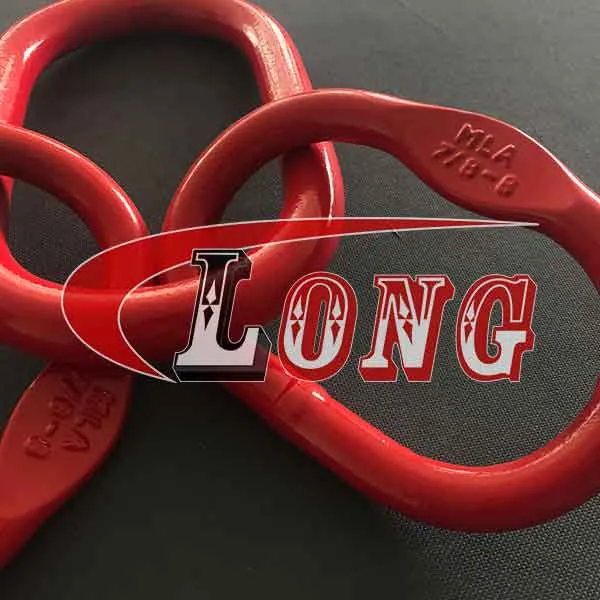

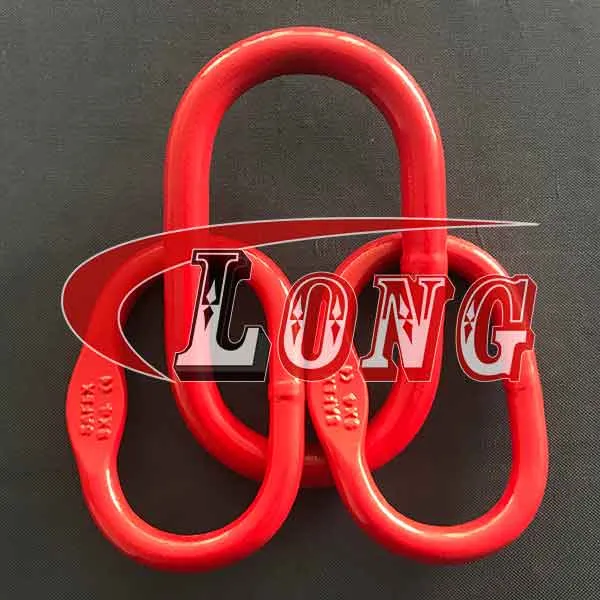

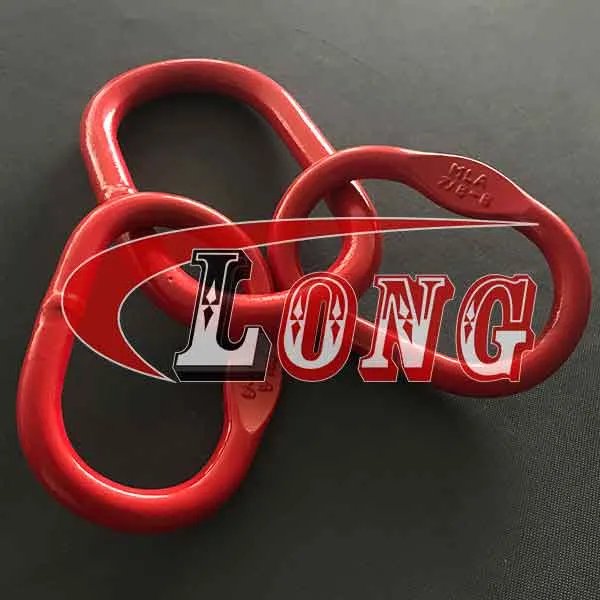

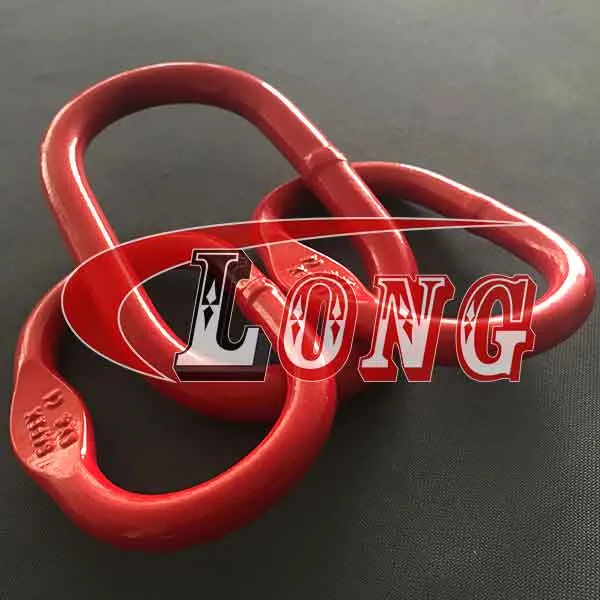

Name: LGRIG® Grade 80 Master Link Assembly U.S. Standard
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

 G80 Hooks

 G80 Lifting Points

 G80 Links, Rings

 G80 Swivels

 G80 Other Products

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Grade 80 Master Link Assembly U.S. Standard

Brand	LGRIG®
Standard	U.S. Type (ASME B30.26)
Material	Superior Alloy Steel
Safety Factor	For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit For steel rope sling: Minimum Ultimate Load is 5 times the Working Load Limit
processing	8LGWMLAUS1/2 to 8LGWMLAUS7/8 ⇒ Main link: WELDED; Sub links: WELDED. 8LGWMLAUS1-1/8 to 8LGWMLAUS1-3/4 ⇒ Main link: WELDED; Sub links: WELDED. 8LGWMLAUS2/1 ⇒ Main link: FORGED; Sub links: WELDED. Quenched and Tempered
Finish	Powder Coated
Size	1/2", 11/16", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 2"
Tips	Color Code: Customized according to customers' requirements
Note	There will be pressing flat only on request. Use Only Grade 80 Attachments For Overhead Lifting
Country of Origin	China

Specifications of LGRIG® Grade 80 Master Link Assembly U.S. Standard

Specifications of G80 Welded Master Link Assembly U.S. Standard

For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit.

For steel rope sling: Minimum Ultimate Load is 5 times the Working Load Limit.

BLUE AREA SIZE: Main link: WELDED Sub links: WELDED

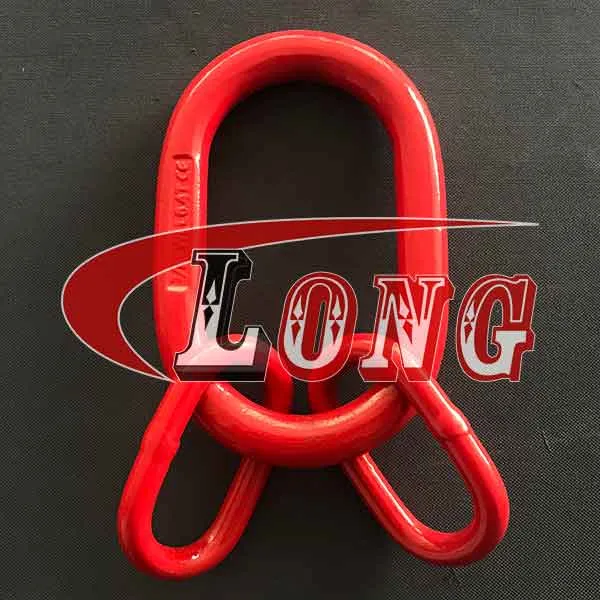

YELLOW AREA SIZE: Main link: FORGED Sub links: WELDED

Part No.

Size
(in)

Weight
(KG)

Chain

WLL
3 or 4
LEG-

45°

(T)

WLL
ROPE

(T)

DIMENSION(MM)

8LGWMLAUS1/2

1/2

0.82

7/32

2.36

2.4

100±5

60±5

14±1

85±5

40±3

12±1

6±0.5

8LGWMLAUS11/16

11/16

1.6

1/4

3.15

3.2

160±6

90±5

18±1

100±5

60±5

14±1

7.6±0.5

8LGWMLAUS5/8

5/8

1.6

1/4

3.15

3.2

160±6

90±5

18±1

100±5

60±5

14±1

7.6±0.5

8LGWMLAUS3/4

3/4

1.95

5/16

4.25

4.2

160±6

90±5

20±1

100±5

60±5

14±1

7.6±0.5

8LGWMLAUS7/8

7/8

3.16

3/8

6.7

180±6

100±5

22±1

150±6

70±5

18±1

8.4±0.5

8LGWMLAUS1

5.28

3/8

270±6

140±5

25±1

155±5

80±4

20±0.5

11±0.5

8LGWMLAUS1-1/8

1-1/8

6.75

1/2

11.2

207±7

140±6

28±1/-2

160±6

90±5

22±1

13.5±0.5

8LGWMLAUS1-1/4

1-1/4

9.31

5/8

207±7

140±6

32±1/-2

180±6

100±5

25±1

16.5±0.5

8LGWMLAUS1-1/2

1-1/2

18.4

3/4

23.6

300±7

160±6

40±1/-2

270±7

140±6

31±1/-2

19±0.5

8LGWMLAUS1-3/4

1-3/4

26.6

7/8

31.5

340±4

180±6

45±1/-2

285±7

155±6

36±1/-2

22±0.5

8LGWMLAUS2

42.91

350±10

190±6

51±1/-2

340±10

180±6

45±1/-2

25±0.5
