Name: LGRIG® Manila Rope Thimble Galvanized
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

 LGRIG® Wire Rope Thimble Commercial European Type

 Heavy Duty Wire Rope Thimble Galvanized US Type LG RIGGING®

 Wire Rope Thimble Light Duty Galvanized US Type LG RIGGING®

 Wire Rope Thimble DIN 6899 A Galvanized LG RIGGING®

 Wire Rope Thimble DIN 6899 B Galvanized LG RIGGING®

 Wire Rope Thimble BS464 Galvanised HDG EN13411-1/DIN3090 LG RIGGING®

 Wire Rope Thimble AS1138

 Tubular Thimble Galvanized without Gusset of Wire Rope Thimbles

 Tubular Thimble G2 Type for Trawling and Fishing of Wire Rope Thimbles

 Tube Thimble with Gusset TG2K LG RIGGING®

 Tubular Thimble SCG Type of Wire Rope Thimbles

 Tube Thimble without Gusset TTG7 Painted/Galvanized LG RIGGING®

 Synthetic Rope Thimble Galvanized LG RIGGING®

 LGRIG® Round Rope Thimble Galvanized

 LGRIG® Manila Rope Thimble Galvanized

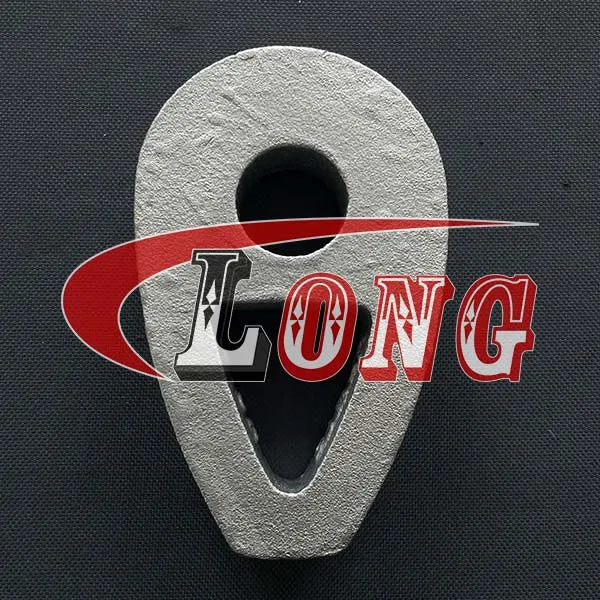

 LGRIG® DIN 3091 Cast Solid Wire Rope Thimble

 LGRIG® JIS Standard Wire Rope Thimble

 LGRIG® K2 Heavy Duty Stub-End Thimble of Wire Rope Thimbles

 LGRIG® Heavy Duty Wire Rope Thimble K2-B

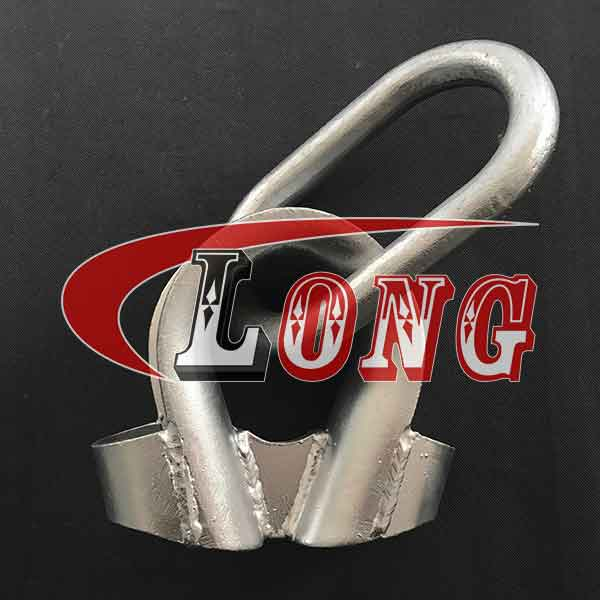

 K3-B Fibre rope thimble reinforced LG RIGGING®

 K3 Fibre Rope Thimble of Wire Rope Thimbles

 Galvanized Superloop Thimble Type K15 of Wire Rope Thimbles

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

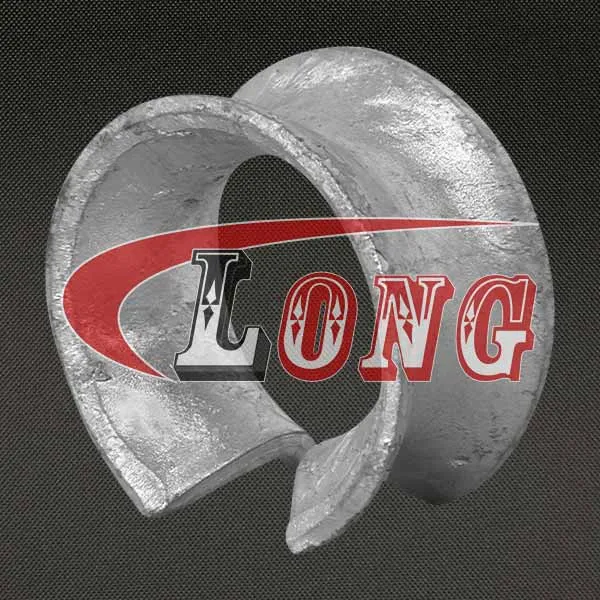

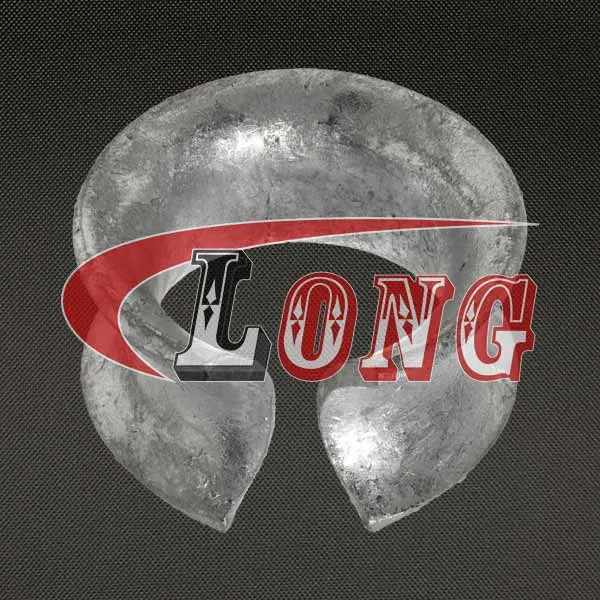

Information of LGRIG® Manila Rope Thimble Galvanized

Brand	LGRIG®
Standard	FF-T-276B, Type 1
Material	Superior Mild Steel
Finish	Galvanized to ASTM A-153 specification
Size	3/8”, 1/2”, 5/8”, 3/4”, 7/8”
Note	NOT FOR LIFTING PURPOSES
Country of Origin	China

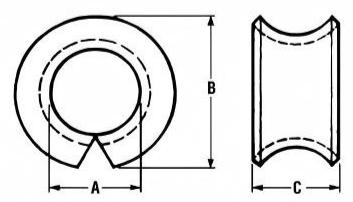

Specifications of LGRIG® Manila Rope Thimble Galvanized

Part No.	For Rope Dia.		Maximum Pin Diameter		A inch		B inch		C inch		Weight/ 100
Part No.	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	lb	kg
LGMRT3/8	3/8	10	7/16	11	1/2	13	1	25	1/2	13	3	1
LGMRT1/2	1/2	13	11/16	17	3/4	19	1-5/16	33	23/32	18	8	4
LGMRT5/8	5/8	16	13/16	21	7/8	22	1-1/2	38	3/4	19	11	5
LGMRT3/4	3/4	19	1-1/16	27	1-1/8	29	1-13/16	46	31/32	25	16	7
LGMRT7/8	7/8	22	1-1/8	29	1-3/16	30	2	51	1-1/32	26	21	10
