Information of LGRIG® Galvanized Hook & Eye Turnbuckle US Fed Spec

Standard	Hook and eye turnbuckle Meets or exceeds all requirements of ASTM F-1145. Conform to US Federal Specification
Material	Super Forged Carbon Steel (1045)
Safety Factor	Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Processing	Drop Forged / Forged + Machining + Quenched and Tempered
Finish	Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4″×4″ , 5/16″×4 1/2″ , 3/8″×6″ , 1/2″×6″ , 1/2″×12″ , 5/8″×6″ , 5/8″×12″ , 3/4″×6″ , 3/4″×12″ , 3/4″×18″ , 7/8″×12″ , 1″×12″
Tips	Color Code: Customized according to customers’ requirements
Country of Origin	China

Specifications of LGRIG® Galvanized Hook & Eye Turnbuckle US Fed Spec

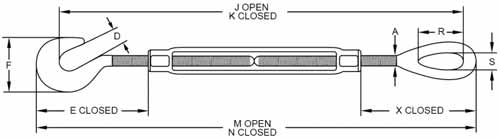

Part No.	Thread Dia & Take Up	WLL	Weight Each	Dimensions(in)
		WLL	Weight Each	A	D	E	F	J	K	M	N	R	S	X	BB
		(lbs)	(lbs)	A	D	Closed	F	Open	Closed	Open	Closed	R	S	Closed	BB
LGTBHEUS01	1/4×4	400	0.31	0.25	0.44	1.67	1.27	11.66	7.66	12.29	8.29	0.81	0.34	1.76	4.07
LGTBHEUS02	5/16×41/2	700	0.5	0.31	0.5	2	1.5	13.5	9	14.28	9.78	0.95	0.44	2.2	4.58
LGTBHEUS03	3/8×6	1000	0.79	0.38	0.56	2.28	1.76	17.09	11.09	18.04	12.04	1.13	0.53	2.48	6.1
LGTBHEUS04	1/2×6	1500	1.8	0.5	0.65	3.53	2.28	19.57	13.57	20.79	14.79	1.41	0.71	3.56	6.03
LGTBHEUS05	1/2×12	1500	2.7	0.5	0.65	3.51	2.28	31.86	19.86	33.08	21.08	1.41	0.71	3.54	12.36
LGTBHEUS06	5/8×6	2250	2.98	0.63	0.9	4.24	2.81	21.11	15.11	22.61	16.61	1.8	0.88	4.35	6.03
LGTBHEUS07	5/8×12	2250	4.35	0.63	0.9	4.23	2.81	33.45	21.45	34.95	22.95	1.8	0.88	4.34	12.39
LGTBHEUS08	3/4×6	3000	4.21	0.75	0.98	5.07	3.33	22.61	16.61	24.45	18.45	2.09	1	5.12	6.13
LGTBHEUS09	3/4×12	3000	6.52	0.75	0.98	5.04	3.33	35.01	23.01	36.85	24.85	2.09	1	5.09	12.59
LGTBHEUS10	3/4×18	3000	8.24	0.75	0.98	5.07	3.33	47.01	29.01	48.85	30.85	2.09	1	5.12	18.53
LGTBHEUS11	7/8×12	4000	9.34	0.88	1.13	5.82	3.78	36.11	24.11	38.23	26.23	2.38	1.25	5.79	12.16
LGTBHEUS12	1×12	5000	13.9	1	1.25	6.56	4.25	37.65	25.65	40.06	28.06	3	1.43	6.5	12.18
