Information of LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec

Standard	Hook and hook turnbuckle meet US Federal Specification FF-T-791b, Type 1 Form 1 – CLASS 5, and ASTM F-1145
Material	Super Carbon Steel (1045)
Safety Factor	Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Processing	Drop Forged + Machining + Quenched and Tempered
Finish	Electric Galvanized / Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4×4, 5/16×4 1/2, 3/8×6, 1/2×6, 1/2×12, 5/8×6, 5/8×12, 3/4×6, 3/4×12, 3/4×18, 7/8×12, 1×12
Tips	Color Code: Customized according to customers' requirements
Country of Origin	China

Specifications of LGRIG® Galvanized Hook & Hook Turnbuckle US Fed Spec

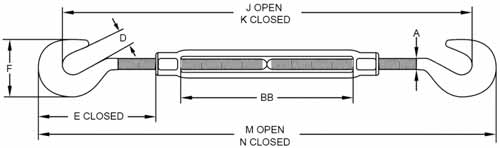

Part No.	Thread Dia & Take Up (in)	W.L.L	U.W.	Dimensions(in)
		W.L.L	U.W.	A	D	E	F	J	K	M	N	BB
		(lbs)	(lbs)	A	D	Closed	F	Open	Closed	Open	Closed	BB
LGTBHHUS01	1/4×4	400	0.33	0.25	0.44	1.67	1.27	9.79	7.38	12.2	8.2	4.07
LGTBHHUS02	5/16×4 1/2	700	0.52	0.31	0.5	2	1.5	11.58	8.58	14.08	9.58	4.58
LGTBHHUS03	3/8×6	1000	0.83	0.38	0.56	2.28	1.77	15.23	10.62	17.84	11.84	6.1
LGTBHHUS04	1/2×6	1500	1.88	0.5	0.65	3.53	2.28	17.98	13.2	20.76	14.76	6.03
LGTBHHUS05	1/2×12	1500	2.77	0.5	0.65	3.51	2.28	30.27	19.49	33.05	21.05	12.36
LGTBHHUS06	5/8×6	2250	3.21	0.63	0.9	4.24	2.81	19.5	14.5	22.5	16.5	6.03
LGTBHHUS07	5/8×12	2250	4.58	0.63	0.9	4.23	2.81	31.84	20.84	34.84	22.84	12.39
LGTBHHUS08	3/4×6	3000	4.2	0.75	0.98	5.07	3.33	21.19	15.98	24.4	18.4	6.13
LGTBHHUS09	3/4×12	3000	6.92	0.75	0.98	5.04	3.33	33.59	22.38	36.8	24.8	12.59
LGTBHHUS10	3/4×18	3000	8.65	0.75	0.98	5.07	3.33	45.59	28.38	48.8	30.8	18.53
LGTBHHUS11	7/8×12	4000	9.85	0.88	1.13	5.82	3.78	34.89	23.52	38.26	26.26	12.16
LGTBHHUS12	1×12	5000	14.8	1	1.25	6.56	4.25	36.59	25.06	40.12	28.12	12.18
