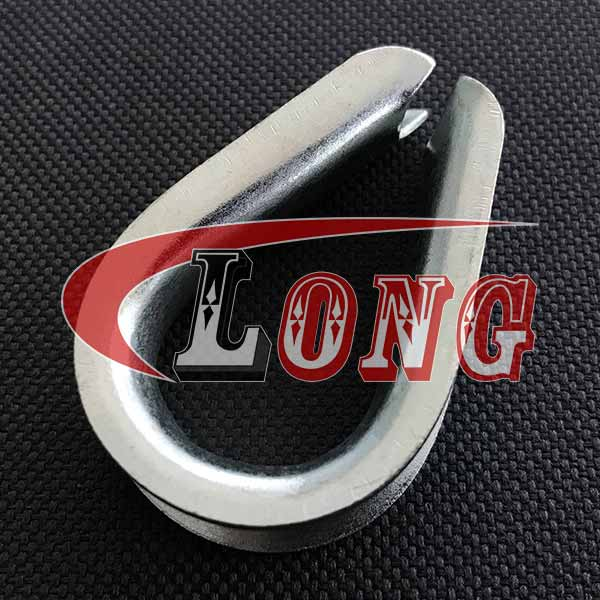

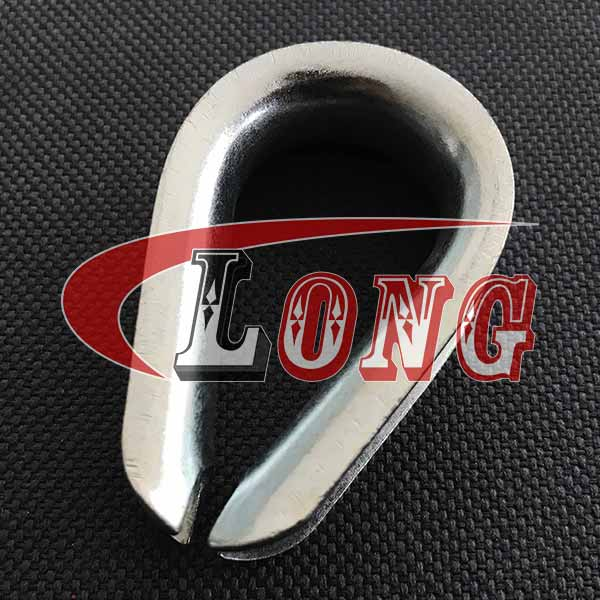

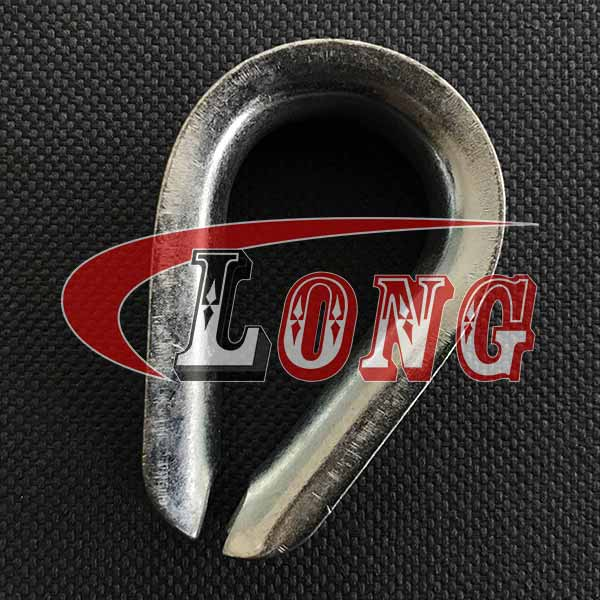

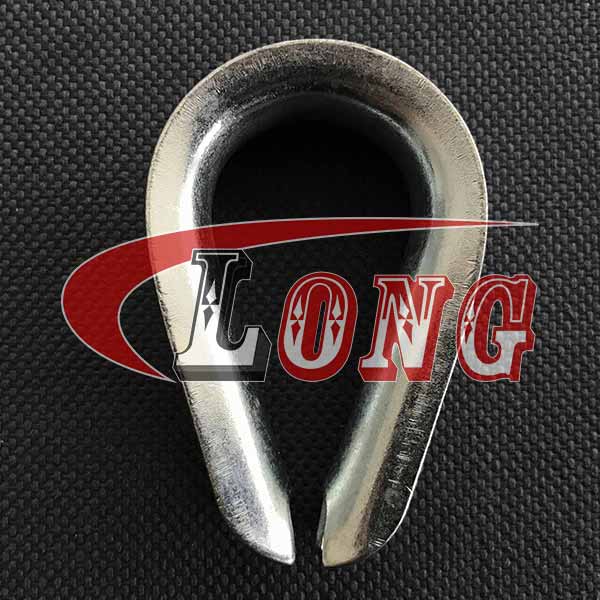

Name: Wire Rope Thimble DIN 6899 A Type Galvanized
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

 Wire Rope Thimble European Commercial Type

 Heavy Duty Thimble fo Wire Rope US Type

 Wire Rope Thimble Light Duty US Type Galvanized

 Wire Rope Thimble DIN 6899 A Type Galvanized

 DIN 6899 B Type Wire Rope Thimble Galvanized

 BS464 Thimble for Wire Rope HDG EN13411-1 DIN3090

 Wire Rope Thimble AS1138

 Tubular Thimble Galvanized without Gusset of Wire Rope Thimbles

 Tubular Thimble G2 Type for Trawling and Fishing of Wire Rope Thimbles

 Tubular-Tube Thimble Galvanized Super Big Size of Wire Rope Thimbles

 Tube Thimble with Gusset Galvanized STG Type -LG RIGGING®

 Tubular Thimble SCG Type of Wire Rope Thimbles

 Tubular Thimble with Gusset Galvanized SCMG Type -LG RIGGING®

 Synthetic Rope Thimble Galvanized

 Round Rope Thimble

 Manila Rope Thimble Galvanized

 DIN 3091 Solid Thimble for Wire Rope Casting

 JIS Standard Wire Rope Thimble

 K2 Heavy Duty Stub-End Thimble of Wire Rope Thimbles

 Heavy Duty Wire Rope Thimble K2-B

 Wire Rope Thimble K3-B with Ear&Master Link

 K3 Fibre Rope Thimble of Wire Rope Thimbles

 Galvanized Superloop Thimble Type K15 of Wire Rope Thimbles

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Galvanized Wire Rope Thimble DIN 6899 A

Technical Notes	DIN6899A
Material	Super carbon Steel
Finish	Electric Galvanized
Size	2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 28mm

Specifications of Galvanized Wire Rope Thimble DIN 6899 A

Part No.	Size	Dimensions (mm)							WT/100Pcs
Part No.	mm	A	B	C	D	E	F	H	kgs
LG-6899A-2.5	2.5	28	21.5	16	10	5	3	1	0.14
LG-6899A-03	3	30	23.5	17	11	5.5	3.5	1	0.35
LG-6899A-04	4	34	26.5	19	12	6	4	1	0.42
LG-6899A-05	5	36	28	20	13	7	5	1	0.8
LG-6899A-06	6	38	30	22	14	8	6	1	0.85
LG-6899A-07	7	43	33	24	15	9	7	1.2	1.1
LG-6899A-08	8	46	35	26	16	10	8	1.2	1.7
LG-6899A-09	9	50	39	29	18	11	9	1.2	2.1
LG-6899A-10	10	56	43	32	20	13	10	1.5	3.5
LG-6899A-11	11	63	47.5	36	22	14	11	1.5	3.7
LG-6899A-12	12	68	51.5	40	24	15	12	1.5	5.25
LG-6899A-13	13	75	56.5	44	26	17	13	2	7.25
LG-6899A-14	14	82	61	48	28	18	14	2	8.33
LG-6899A-16	16	91	69.5	54	32	21	16.5	2.5	12.3
LG-6899A-18	18	102	78	59	35	24	18	3	18.5
LG-6899A-20	20	114	86.5	68	40	28	20	4	31.5
LG-6899A-22	22	126	95	76	44	30	22	4	236.5
LG-6899A-24	24	135	103.5	84	48	32	24	4	41.7
LG-6899A-28	28	162	120.5	100	56	38	28	5	72.1
