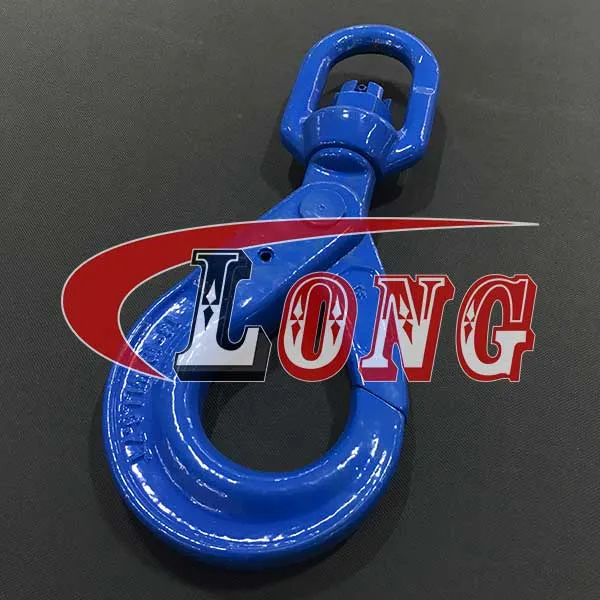

Grade 100 Swivel Self Locking Hook

G100 Swivel Self-locking Hook, also known as Grade 100 eye swivel self locking hook.

Grade 100 swivel self locking hook have a plain bearing swivel to allow the hook to swivel thus reducing the twist of a sling.

Its positive locking latch ensures safety and security during lifts and while under load.

Swivels on a bushing to position hook before loading.The swivel eye rotates 360 degrees. Latch closes automatically under load. Swivel Self Locking Hook to suit G100 Chain.

Get A Quote
Products
Trawling Gear
Grade80 / Grade100
Trawling Swivel
Trawling Shackle
Hooks / Links / Rope Fittings
Rope Thimbles
Trawling Chain
Tools
Synthetic Rope
Lifting Sling
Trawl Block
Fishing Net Float & Buoy
Wire / Chain Toggles
Anchors & Fittings
Dock Products
Safety Appliance
Lifting & Rigging
G100 Products
G100 Hooks
G100 Links, Rings
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture

Information of Grade 100 Swivel Self Locking Hook

Technical Notes

European Type

Material

Superior Alloy Steel

Safety Factor

4: 1

Processing

Forged / Quenched and Tempered

Finish

Powder Coated

Size

6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm

Tips

Color Code: Customized according to customers’ requirements

Note

Use Only Grade 100 Attachments For Overhead Lifting

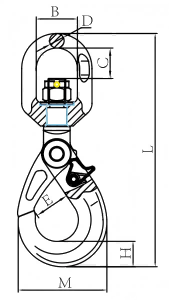

Specifications of Grade 100 Swivel Self Locking Hook

Specifications of Grade 100 Swivel Self Locking Hook


Part No.

Weight (kg)

WLL(t)

Breaking load (t)

B±1 (mm)

C±1 (mm)

D±0.5 (mm)

E±1 (mm)

H±1 (mm)

M±2 (mm)

L±3 (mm)

10-LG-SSLH-06

0.6

1.4

5.6

32.5

23

11.5

28

20

70

184

10-LG-SSLH-08

1.1

2.5

10

36

28

13

35.5

26

90

229

10-LG-SSLH-10

2

4

16

42

35

15.5

45

30

108

269

10-LG-SSLH-13

4

6.7

26.8

50

40

17

53.5

40.5

138.5

330

10-LG-SSLH-16

6.8

10

40

61

56

21.5

62

50.5

170.5

413

10-LG-SSLH-20

12.5

16

64

72

62

26

76.5

62

192.5

463

10-LG-SSLH-22

17.1

19

76

97

94

33

80

66

205

572

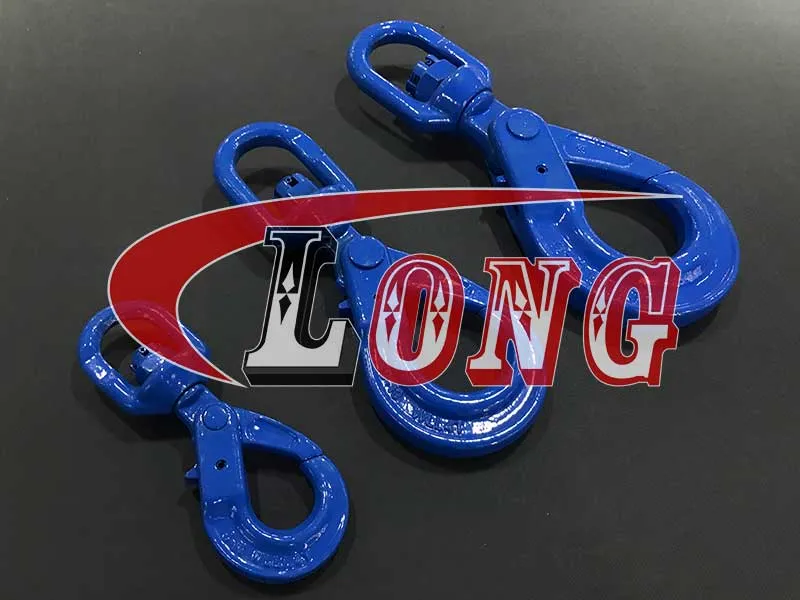

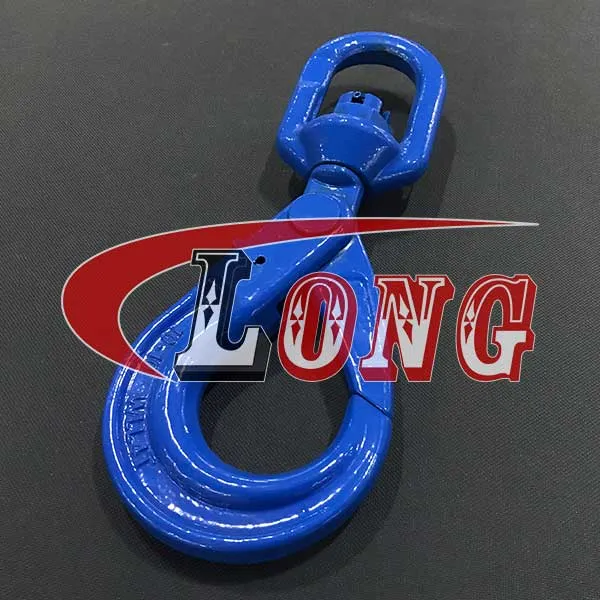

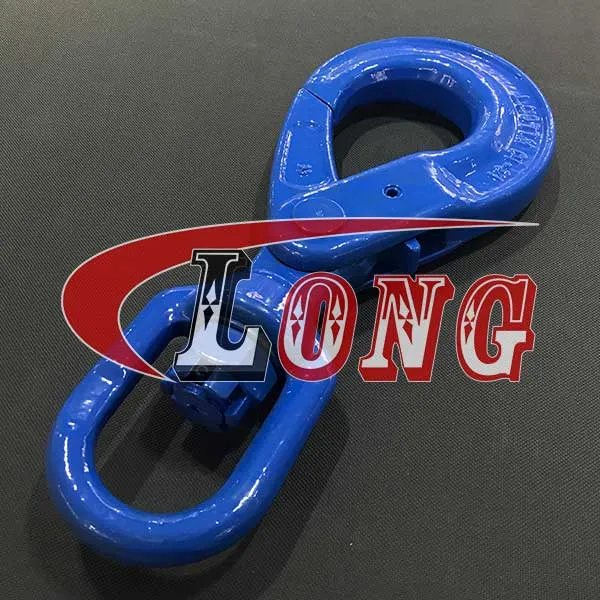

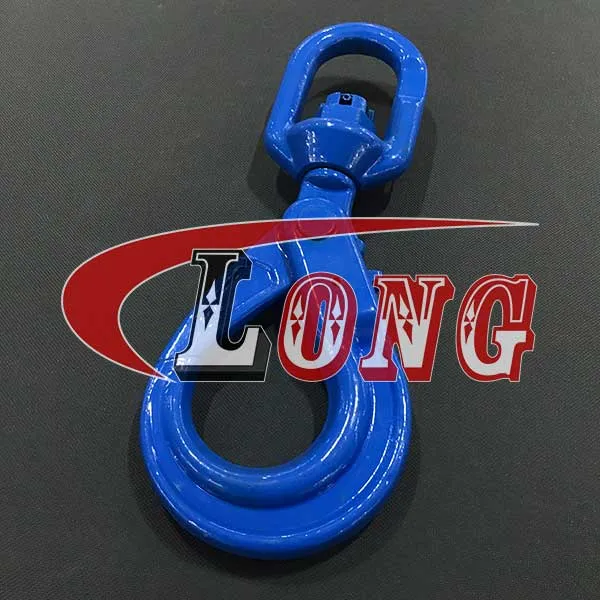

Bulk Photos of Grade 100 Swivel Self Locking Hook

bulk photos of grade 100 swivel self locking hook
