Information of LGRIG® Grade 80 Alloy Bolt Type Anchor Shackle

Brand	LGRIG®
Grade	Grade 80
Technical Notes	Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Model	G-2130A
Shackle Type	Anchor Shackle / Bow Shackle
Pin Type	Bolt Type Pin / Safety Pin
Safety Factor	5: 1
Material	Superior Alloy Steel
Processing	Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized Pin: Powder Coating
Size	5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”
WLL	1.2Ton, 1.6Ton, 2.5Ton, 3.3Ton, 5Ton, 7Ton, 9.5Ton, 12.5Ton, 15Ton, 18Ton, 21Ton, 30Ton, 40Ton, 55Ton
Tips	Special specification and marks can be made according to customers’ requirements

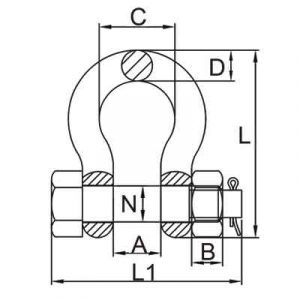

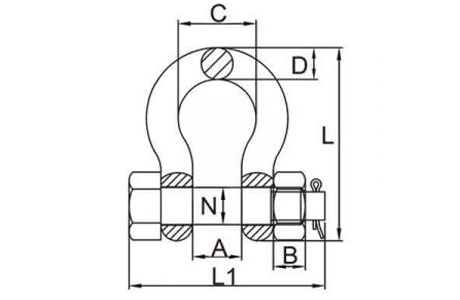

Specifications of LGRIG® Grade 80 Alloy Bolt Type Anchor Shackle


Part No.	Size	WLL/T	B.L/T	A±1.5	C±1.5	D±1	L±3	N	L1±3	B	N.W./LBS
8LGASBP5/16	5/16″	1.2	6	13.5	21.3	8	53	9.5	50.5	8.4	0.22
8LGASBP3/8	3/8″	1.6	8	16.8	25.9	9.7	63.2	11	62	10.8	0.33
8LGASBP7/16	7/16″	2.5	12.5	19	29.5	11.2	74	13	70	12.8	0.49
8LGASBP1/2	1/2″	3.3	16.5	20.6	33.3	12.7	83.3	16	79.5	14.8	1.01
8LGASBP5/8	5/8″	5	25	27	42.9	17.5	106.4	19	101.5	18	1.6
8LGASBP3/4	3/4″	7	35	32	50.8	20.6	126.2	22	117.5	19.4	2.42
8LGASBP7/8	7/8″	9.5	47.5	36.6	57.9	24.6	148	25	136	21.5	3.95
8LGASBP1/1	1″	12.5	62.5	43	68.3	27	166.6	28	153.5	23.8	5.66
8LGASBP1-1/8	1-1/8″	15	75	46	74	31.75	190	32	171.5	25.6	8.27
8LGASBP1-1/4	1-1/4″	18	90	51.6	82.5	35	210	35	192	31	11.71
8LGASBP1-3/8	1-3/8″	21	105	57	92	36	232.7	38	202	33.4	15.83
8LGASBP1-1/2	1-1/2″	30	150	60.5	98	41	254	42	222	34	20.8
8LGASBP1-3/4	1-3/4″	40	200	73.2	126	57.2	313.7	51	278	38	33.91
8LGASBP2/1	2″	55	275	82.5	146	61	347.5	57	307	45	52.25
