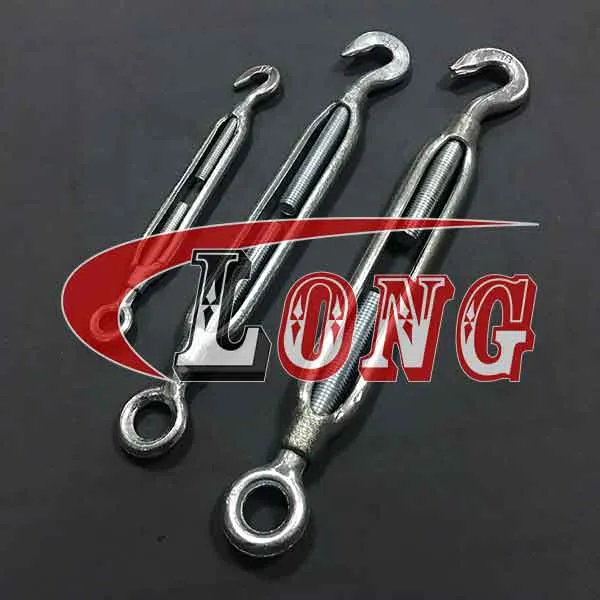

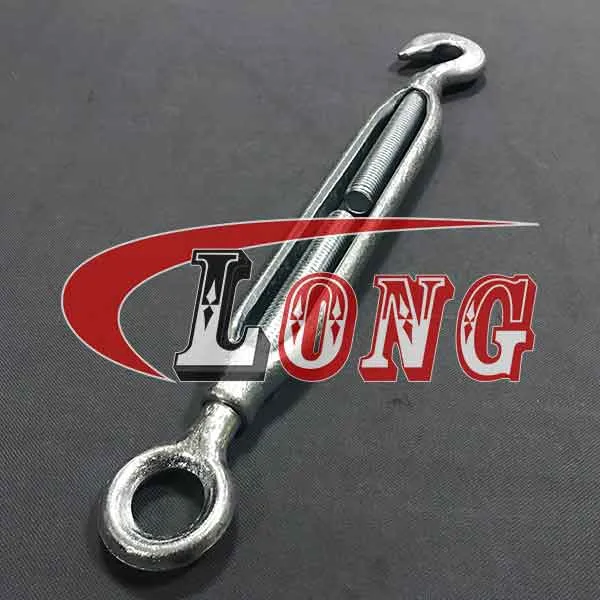

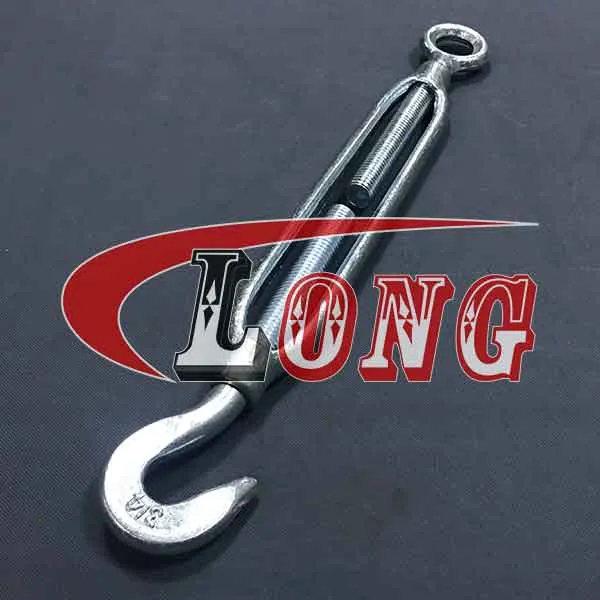

Information of LGRIG® JIS Frame Type Turnbuckle Forged Steel

Brand	LGRIG®
Standard	Frame type turnbuckle conform to JIS Type
Material	Superior Mild Steel
Processing	Drop Forged
Finish	Hot Dipped Galvanized / Electro-Galvanized
Thread Dia & Take Up	6mm, 8mm, 9mm, 12mm, 16mm, 19mm, 22mm, 25mm, 32mm, 38mm, 44mm, 50mm JIS type turnbuckle
Country of Origin	China


Specifications of LGRIG® JIS Frame Type Turnbuckle Forged Steel


Dia. X Outside Length of frame mm	Inside Dia. Of Eye mm	Weight Per pc KGS
19X510	37	2.9
22X520	31X50	3.8
25X520	33X70	5.2
25X900	33X70	8.0
32X575	36X70	9.8
32X900	36X70	–
32X900	40X80	–

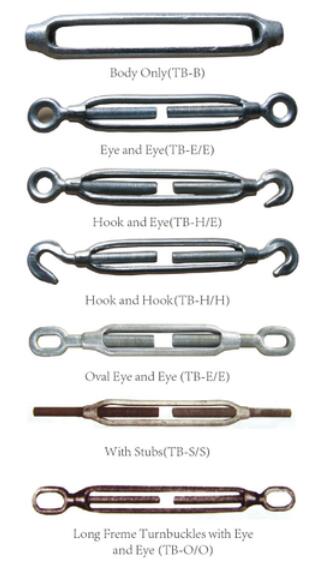

Part No.	Nominal Size(D)		1 Body Only					2 Eye&Eye			3 Hook&Eye		4 Hook&Hook			6 With Stubs
	Nominal Size(D)		A	B	C	T.L	W/Pce	F	T.L	W/Pce	T.L	W/Pce	E	T.L	W/Pce	H	I(A/2)	G	W/Pce
	m/m	in	m/m	m/m	m/m	Ton	kg	m/m	Ton	kg	Ton	kg	m/m	Ton	kg	m/m	m/m	m/m	kg
LGJISTB06	6	1/4	100	78	11	1	0.08	10	0.1	0.116	0.04	0.114	9	0.04	0.112	80	50	5.3	0.112
LGJISTB08	8	5/16	125	100	12.5	1.2	0.15	12	0.2	0.22	0.08	0.218	9	0.08	0.215	100	63	6.9	0.22
LGJISTB09	9	3/8	150	120	12.5	1.5	0.17	16	0.5	0.295	0.15	0.293	11	0.15	0.29	130	75	8.3	0.273
LGJISTB12	12	1/2	200	164	18	2	0.29	20	2	0.6	0.35	0.585	16	0.35	0.57	150	100	11.2	0.51
LGJISTB16	16	5/8	250	202	21.5	3	0.52	22	3	1.07	0.7	1.05	19	0.7	1.03	180	125	14.2	0.95
LGJISTB19	19	3/4	300	250	25	4	0.85	28	4	1.79	1	1.78	20	1	1.77	220	150	17.2	1.62
LGJISTB22	22	7/8	325	269	28	5	1.17	33	5	2.55	1.5	2.58	21	1.5	2.6	250	165	20.3	2.34
LGJISTB25	25	1	350	285	32.5	6	1.69	35	6	3.8	2	3.77	26	2	3.73	270	175	23.3	3.27
LGJISTB32	32	1-1/4	400	310	45	8	3.51	36×70	10	7.6	3	7.52	34	3	7.44	300	200	29	6.52
LGJISTB38	38	1-1/2	450	350	55	10	5.08	40×80	15	13.5	4	12.8	35	4	22	330	225	38	13
LGJISTB44	44	1-3/4	500	386	57	–	9	–	–	–	–	–	–	–	22	–	250	44	–
LGJISTB50	50	2	550	420	65	–	11.5	–	–	–	–	–	–	–	29	–	275	50	–
