LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)

LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)

LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5), also called wire rope grips and wire rope clamps, Stainless steel DIN1142 wire rope clips are also available.

Galvanized malleable Wire rope clips are comform to DIN1142, also known as EN13411-5, the body is cast from Malleable iron and the U bolt is stamped from round steel.

Malleable Wire rope clips are fittings used to make an eye or join two cable or wire rope ends together.

Our range of wire rope clip en13411 is available in standard as well as customized sizes.

Get A Quote
Products
Trawling Gear
Trawling Swivel
Hooks
Trawling Shackle
Rope Thimbles
Rings & Links
Kelly's Eye & Stoppers
G-Hooks & Recessed Links
Connectors
Tools
Rockhopper Spare Parts
Trawling Chain
Synthetic Rope
Trawl Wire
Anchors & Fittings
Wire Rope Clips
Ferrules & Terminals
Rigging Screws
Fishing Net Float
Fenders & Buoys
Lashing/Slings/Load Binders
Trawl Blocks & Pulley
Toggles & Spacers
Safety Appliance
Lifting & Rigging
G100 Products
G80 Products
Turnbuckles
Shackles
Eye Bolts & Nuts
Rigging Hooks
Swivels
Forged Rings & Connector
Quick Links
Snap Hooks
Wire Rope
Wire Rope Thimbles
Wire Ropes Clips & Grips
LGRIG® Wire Rope Clip DIN741 Galvanized Malleable
LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)
LGRIG® Malleable Wire Rope Clip LG-450 US Standard
LGRIG® Drop Forged Wire Rope Clips LG450 US.Fed.Spec.
LGRIG® Wire Rope & Cable Grip 0.5Ton 1Ton 2Ton 3Ton
LGRIG® Simplex Wire Rope Grips Zinc Plated
LGRIG® Duplex Wire Rope Clips/Grips Zinc plated
LGRIG® Australian Standard Wire Rope Grips AS2076
LGRIG® Closed Spelter Socket G-417 US Type
LGRIG® Open Spelter Wire Rope Socket G-416 US Type
LGRIG® Fist Grip Wire Rope Clips Hot Dip Galvanized
LGRIG® Drop Forged Wire Rope Clips Italy Type
LGRIG® Deka Wire Rope Clips Galvanized Malleable Cast Iron
LGRIG® Drop Forged Wire Rope Clips G450 Stainless Steel US Type
LGRIG® American Wire Rope Cable Grip
LGRIG® Japanese Type Wire Rope Cable Grip
Wire Rope Sleeves/Ferrules
Chains & Accessories
Chain Binders
Ratchet Straps
Lifting Sling of Lifting & Rigging
Lever Hoist
Pulley & Blocks
Lifting & Rigging Pins
Forestry Logging Supplies
Eye Plate
Stainless Steel Products
Shade Sail Hardware
Stainless Shackles
Stainless Turnbuckle
Stainless Eye Bolts & Nuts
Stainless Thimbles
Stainless Rings
Stainless Swivels
Stainless Quick Link
Stainless Wire Clips
Stainless Hooks & Clips
Stainless Terminals
Stainless U Bolts
Stainless Hinge
Stainless Pulleys
Drop Forged Stainless Products
Stainless Chains
Eye Plate, Eye Straps, Angles
Boat Fittings
Stainless Marine Hinges
Bimini Top Fittings
Cleats & Fairleads
Angle Bracket
Rail Fittings
Thru-Hull & Deck Fittings
Stainless Latches
Mooring Compensators / Springs
Brake Lining
Pole Line Hardware
A-Cable Suspension Bolt-China LG Manufacture
Adjusting Plate for Power Line-China LG Manufacture
Angle Eye Bolt Pole Line Hardware-China LG Supply
Cable Span Clamps Pole Line Hardware-China LG Manufacture
Carriage Bolts For Overhead Line Construction-China LG Supply
Crossover Clamp-China LG Manufacture
Electric Power Bow/Dee Shackle for Power Line-China LG Supply
Electric Power Eye Shaft Screw Anchor-China LG Supply
Electric Power Socket Clevis WSY-China LG Manufacture
Electric Power Socket Clevis-Double Type-Line Hardware-LG RIGGING®
Electric Power Socket Clevis-Single Type-Line Hardware-China LG Supply
Electric Power Thimble Eye Nut-China LG Manufacture
Electric Power U Ball Clevis-China LG Manufacture
Electrical Wire Cable Thimble Clevis-China LG Supply
Forged Eye Bolt For Anchor Assemble-China LG Supply
Forged Oval Eye Nut for Pole Line Fitting-China LG Supply
Forged Steel Ball Eye for Electric Fitting-China LG Supply
Forged Steel Galvanized Joint Hung Plate-LG RIGGING®
Galvanized Insulator Clevis D Iron Bracket-China LG Supply
Galvanized Steel Ball Eye Pole Line Hardware-China LG Supply
Galvanized Thimble Eye Anchor Rod-China LG Supply
Guy Clamp for Pole Line Hardware-China LG Manufacture
High Strength Carbon Steel Galvanized U-Bolts-LG RIGGING®
High Strength Helical Spring Lock Washer-LG RIGGING®
Hot Dip Galvanized Square Curved Cast Washer-LG RIGGING®
Hot Dip Galvanized Steel Clevis Power Fitting-LG RIGGING®
Hot Dip Galvanized Steel Yoke Plate-China LG Supply
Hot-Dip Galvanized Guy Clips-China LG Manufacture
Hot-Dip Galvanized Steel Yoke Plate for Power Line-LG RIGGING®
MF Curved Locknut Square Type-China LG Manufacture
Pole Line Forged Single Thimble Eye Nut-China LG Supply
Pole Line Hardware Forged Ball Eye-China LG Manufacture
Pole Line Hardware Forged Y Type Ball Clevis and Eye-LG RIGGING®
Pole Line Hardware Oval PH Type Chain Link-China LG Supply
Pole Line Hardware Y Type Ball Clevis-China LG Manufacture
Pole Line Hardware ZH Type Chain Link-China LG Supply
Spring Clip Washer Pole Line Fastener-China LG Supply
Square Curved Washer Pole Line Hardware-LG RIGGING®
Square Nut Hot Dip Galvanized-China LG Manufacture
Stainless Steel Round Flat Washer-China LG Manufacture
Steel PT Type Adjustment Plate-China LG Manufacture
Steel Round Pole Band Pole Clamp for Electric Power-LG RIGGING®
Straight Thimble Eye Bolt Pole Line Hardware-LG RIGGING®
Suspension Clamp for Overhead Line-China LG Supply
Tension Clamp for Aluminium Conductor-LG RIGGING®
Tower Pole Step Bolt with Nut-China LG Manufacture
Transformer Bracket Steel Single-Band Component-LG RIGGING®
Triple Eye Anchor Pole Line Hardware-China LG Supply
U Shape Anchor Shackle Pole Line Hardware-LG RIGGING®
U Type Yoke Plate for Line Fitting-China LG Manufacture
Building Components
LGRIG® Lifting Clutch - Concrete Precast Element Lifting

Information of LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)

Brand

LGRIG®

Standard

Wire rope clips comform to DIN1142 (EN13411-5)

Material

Malleable Iron Body / Steel U Bolt

Processing

Cast / Stamping

Finish

Zinc Plated / Hot Dip Galvanized

Size

5mm, 6,5mm, 8mm, 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm, 30mm, 34mm, 40mm

Country of Origin

China

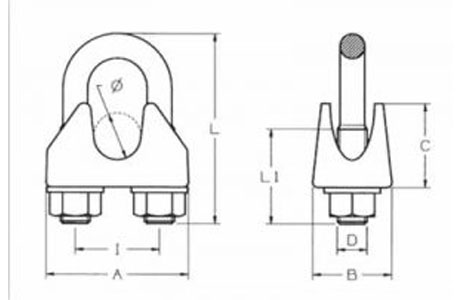

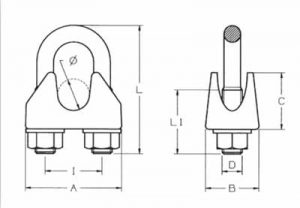

Specifications of LGRIG® Malleable Wire Rope Clip DIN1142(EN13411-5)


Part No.

Size

A

B

C

D

I

L

L1

Unit

Weight

mm

mm

Kg

LG1142G05

5

25

13

13

M 5

12

25

13

0,020

LG1142G6.5

6,5

30

16

14

M 6

14

32

17

0,040

LG1142G8

8

39

20

18

M 8

18

41

20

0,082

LG1142G10

10

40

20

21

M 8

20

46

24

0,092

LG1142G12

12

50

24

25

M 10

24

50

28

0,250

LG1142G14

14

59

28

30

M 12

28

66

31

0,300

LG1142G16

16

64

32

35

M 14

32

76

35

0,430

LG1142G19

19

68

32

40

M 14

36

83

36

0,490

LG1142G22

22

74

34

44

M 16

40

96

40

0,680

LG1142G26

26

84

38

51

M 20

46

111

50

1,170

LG1142G30

30

95

41

59

M 20

54

127

55

1,400

LG1142G34

34

105

45

67

M 22

60

141

60

2,130

LG1142G40

40

117

49

77

M 24

68

159

65

2,680


CAUTION: NOT DESIGNED FOR OVERHEAD LIFTING.


LGRIG® has a large size selection of wire rope clips in forged steel, malleable, and stainless steel materials.

We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
Contact LG RIGGING NOW
Contact LG RIGGING
Tel:
+86 19524345486
E-mail:
Add:
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
Request a Free Quote
Upload
or drag files here.

Related Wire Ropes Clips & Grips

LGRIG® Drop Forged Wire Rope Clips G450 Stainless Steel US Type
LGRIG® Drop Forged Wire Rope Clips G450 Stainless Steel US Type
LGRIG® Fist Grip Wire Rope Clips Hot Dip Galvanized
LGRIG® Fist Grip Wire Rope Clips Hot Dip Galvanized
LGRIG® Duplex Wire Rope Clips/Grips Zinc plated
LGRIG® Duplex Wire Rope Clips/Grips Zinc plated
LGRIG® Japanese Type Wire Rope Cable Grip
LGRIG® Japanese Type Wire Rope Cable Grip
LGRIG® Drop Forged Wire Rope Clips Italy Type
LGRIG® Drop Forged Wire Rope Clips Italy Type
LGRIG® Drop Forged Wire Rope Clips LG450 US.Fed.Spec.
LGRIG® Drop Forged Wire Rope Clips LG450 US.Fed.Spec.
LGRIG® American Wire Rope Cable Grip
LGRIG® American Wire Rope Cable Grip
LGRIG® Wire Rope Clip DIN741 Galvanized Malleable
LGRIG® Wire Rope Clip DIN741 Galvanized Malleable
China LG RIGGING's Updates
Exhibition in Norway 2024 LG RIGGING®
31
Jul
2025
Exhibition in Norway 2024 LG RIGGING® Learn More
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles
27
Jan
2025
In-depth Discussion on Quality Inspection and Maintenance of Lifting Gear Shackles Learn More
Introduction to Rigging Turnbuckles: Advantages and Applications
13
Jan
2025
Introduction to Rigging Turnbuckles: Advantages and Applications Learn More
Products
Trawling Gear Lifting & Rigging Stainless Steel Products Boat Fittings Pole Line Hardware Building Components
Resources
Video Blog FAQs About LG RIGGING® Document Download
About
Company News Industry News
Contact Us
Room 808, Dexin Building, No.788 Lanao Road, Jimo District, Qingdao, 266200, China.
sales@lg-lifting.com
+86 19524345486
Copyright © QINGDAO LG RIGGING CO.,LTD. All Rights Reserved.
Sitemap | Privacy Policy
sales@lg-lifting.com
+86 19524345486
