Name: Malleable Wire Rope Clip US Standard
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

 Wire Rope Clip DIN741 Galvanized Malleable

 Malleable Wire Rope Clip DIN1142 (EN13411-5)

 Malleable Wire Rope Clip US Standard

 Drop Forged Wire Rope Clips US.Fed.Spec.

 Wire Rope & Cable Grip 0.5Ton 1Ton 2Ton 3Ton

 Simplex Wire Rope Grips Zinc Plated

 Duplex Wire Rope Clips/Grips Zinc plated

 Australian Standard Wire Rope Grips AS2076

 Closed Spelter Socket G-417 US Type

 Open Spelter Wire Rope Socket G-416 US Type

 Fist Grip Wire Rope Clips Hot Dip Galvanized

 Drop Forged Wire Rope Clips Italy Type

 Deka Wire Rope Clips Galvanized Malleable Cast Iron

 Drop Forged Wire Rope Clips G450 Stainless Steel US Type for Wire Rope Clips & Grips

 American Wire Rope Cable Grip

 Japanese Type Wire Rope Cable Grip

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Information of Malleable Wire Rope Clip US Standard

Technical Notes	According to Federal Specification FF-C-450 D, Type 1, Class 2.
Material	Superior Mild Steel
Processing	Malleable Cast Body, Steel U Bolt
Finish	Zinc Plated
Size	1/16”, 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16” 1/2”, 9/16”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”
Safety Factor	5:1
Packing	Cartons or Gunny bags, then pack on pallets

Specifications of Malleable Wire Rope Clip US Standard

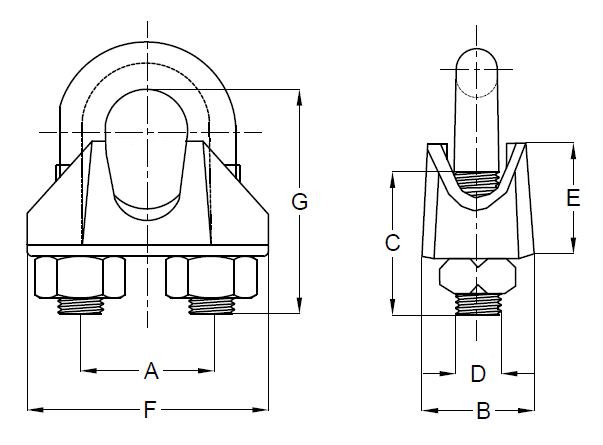

Part No.	Size (in)	Weight Per	Dimensions (in.)
Part No.	Size (in)	Piece in LBS.	A	B	C	D	E	F	G
LGWRCUS101	1/16	0.03	1/16	0.45	0.45	0.15	0.38	0.69	0.65
LGWRCUS102	1/8	0.04	1/8	0.55	0.55	0.18	0.42	0.87	0.79
LGWRCUS103	3/16	0.063	3/16	0.59	0.63	0.25	0.51	1.02	0.94
LGWRCUS104	1/4	0.13	1/4	0.73	0.79	0.31	0.59	1.25	1.24
LGWRCUS105	5/16	0.15	5/16	0.79	0.87	0.31	0.63	1.38	1.34
LGWRCUS106	3/8	0.21	3/8	0.87	1.06	0.38	0.87	1.59	1.65
LGWRCUS107	7/16	0.37	7/16	0.91	1.18	0.44	0.87	1.7	1.69
LGWRCUS108	1/2	0.37	1/2	1.02	1.38	0.44	0.92	1.93	2.12
LGWRCUS109	9/16	0.59	9/16	1.04	1.58	0.5	1.06	2.07	2.15
LGWRCUS110	5/8	0.59	5/8	1.12	1.58	0.5	1.1	2.26	2.33
LGWRCUS111	3/4	0.84	3/4	1.26	1.65	0.56	1.33	2.4	2.7
LGWRCUS112	7/8	1.25	7/8	1.46	1.81	0.63	1.5	2.8	3.08
LGWRCUS113	1	1.66	1	1.65	2.2	0.63	1.69	3.05	3.44
LGWRCUS114	1-1/8	2.43	1-1/8	2.06	2.75	0.75	2.19	3.38	4
