Information of AS/NZS4344 Ratchet Load Binder

Technical Notes

AS/NZ4344 – 2001

Material

Super Alloy Steel

Safety Factor

BF = 2 LC

Processing

Drop Forged / Machining + Quenched and Tempered

Finish

Powder Coated

Size

6mm, 8mm, 10mm, 13mm

Tips

Color Code: Customized according to customers’ requirements

Note

NOT FOR LIFTING, ONLY FOR LASHING.

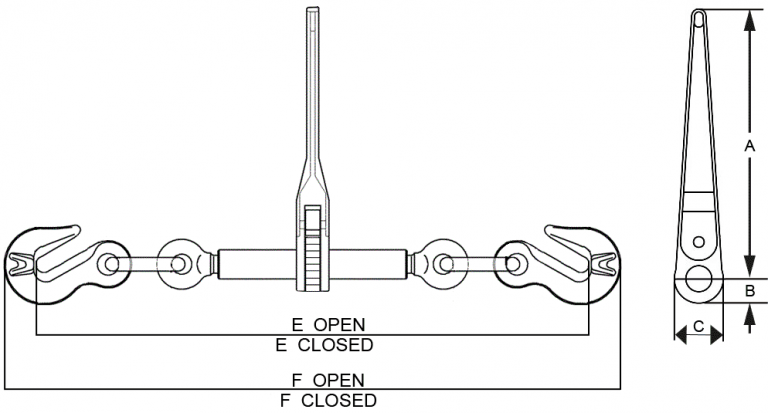

Specifications of AS/NZS4344 Ratchet Load Binder

Specifications of AS/NZS4344 Ratchet Load Binder


Part No.

CHAIN SIZE

L.C.

MBF

Wt.

DIMENSIONS

A

C

E-Open

E-Closed

G

mm

chain

Kn

kg

mm

mm

mm

mm

mm

LG-AS-RLB-01

6

2300kg

46

1.69

210

42

528

415

10

LG-AS-RLB-02

8

4100kg

74

4.9

355

65

754

590

11

LG-AS-RLB-03

10

6400kg

118

5.4

355

65

775

610

12

LG-AS-RLB-04

13

10500kg

176

7.5

355

65

870

700

15


We are a professional manufacturer and supplier of Trawling / Rigging / Stainless / Yacht Equipments in China
