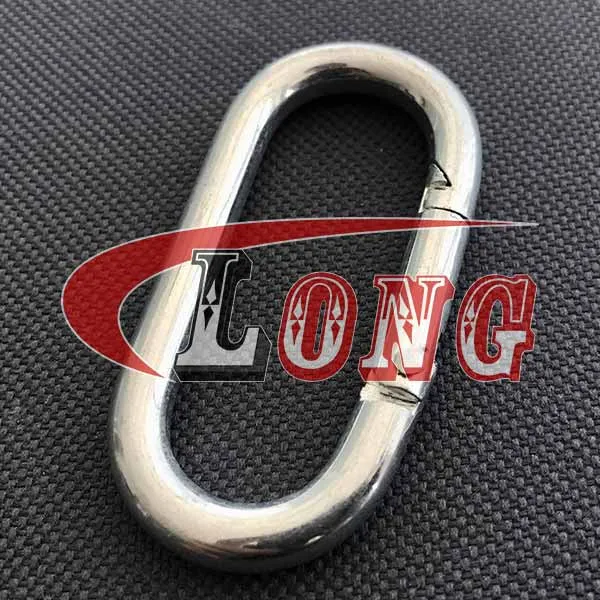

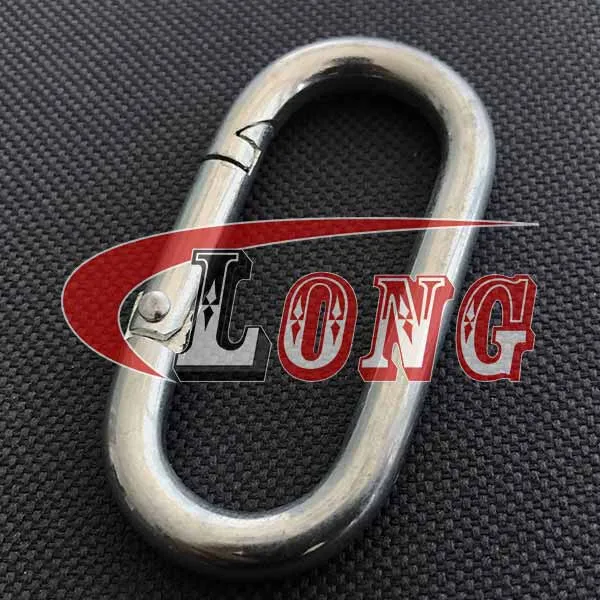

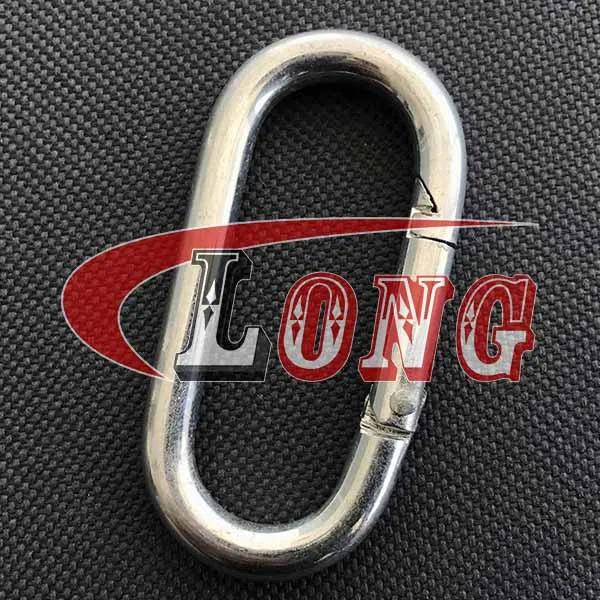

Information of LGRIG® Oval Snap Hooks Carbine Hooks

Brand	LGRIG®
Material	Carbon Steel Snap Hook
Processing	Stamping / Machining
Finish	Electric Galvanized (Zinc Plated)
Size	5×50mm, 6×60mm, 8×80mm, 10×100mm, 11×120mm
Tips	Not for overhead lifting
Country of Origin	China

Specifications of LGRIG® Oval Snap Hooks Carbine Hooks

Part No.	Size	B	F	A	C	W.L.L	N.W.
Carbon Steel	mm					lbs	kgs/100pcs
LGOSHZP01	5×50	25	9	5	50	100	1.75
LGOSHZP02	6×60	30	11	6	60	140	2.55
LGOSHZP03	8×80	40	13	8	80	250	5.7
LGOSHZP04	10×100	50	16	10	100	400	13.6
LGOSHZP05	11×120	58	21	11	120	500	18.5

LGRIG® offers a wide variety of Regular Wire Hooks.

Oval Snap Hooks are also available in Stainless Steel Material, this type of finish is normally required for use by the food and beverage industry. It is also an excellent finish for use in applications with extreme exposure to dust, chemicals or environment (such as salt water).
