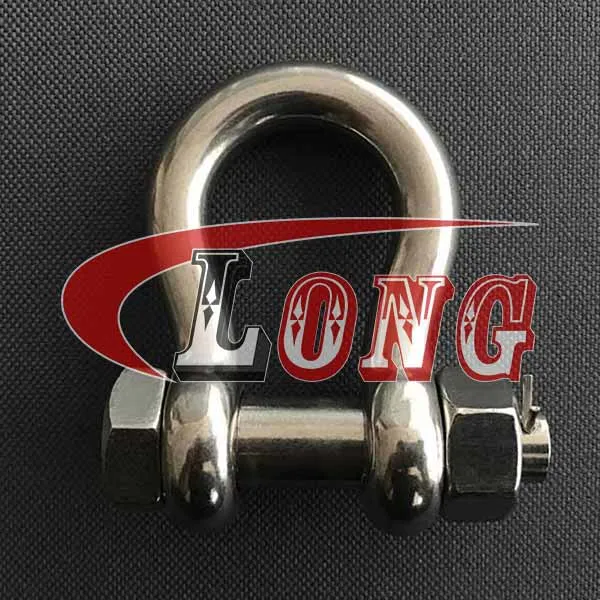

Name: Oversized Bolt Type Pin Bow Shackle Precision Cast US Type Stainless Steel
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

Stainless Steel Products

 

Shade Sail Hardware 

Stainless Shackles 

 Bow Shackle Stainless Steel Screw Pin European Type for Stainless Shackles

 Stainless Steel D Shackle Screw Pin European Type

 Stainless Steel Anchor Shackle Oversized Screw Pin

 Stainless Steel Chain Shackle Oversized Screw Pin

 Stainless Steel Bow Shackle Oversized Bolt Type Pin

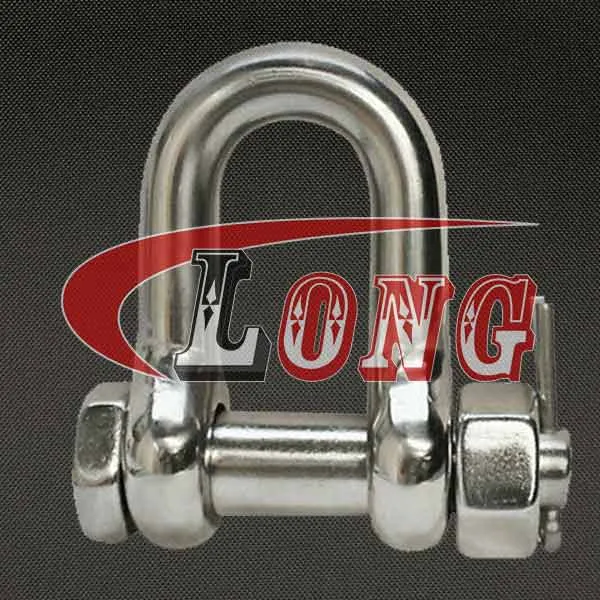

 D Shackle Oversized Bolt Type Pin Stainless Steel

 Bow Shackle Stainless Steel Square Head Pin for Stainless Shackles

 D Shackle Stainless Steel Square Head Pin

 Stainless Steel D Shackle Captive Pin

 Captive Pin Bow Shackle Stainless Steel

 Captive Pin Long D Shackle Stainless Steel

 Screw Pin Long D Shackle Stainless Steel

 Hexagon Socket Pin Bow Shackle Stainless Steel

 Twist Shackle Screw Pin Stainless Steel

 Wide D Shackle Captive Pin Stainless Steel

 Screw Pin Wide D Shackle Stainless Steel

 Stainelss Steel D Shackle, JIS Type

 Bow Shackle Screw Pin JIS Type Stainless Steel

 Stainless Steel Fixed Bail Snap Shackle

 Stainless Steel Eye Swivel Snap Shackle for Sailboat

 Stainless Steel Jaw Swivel Snap Shackle for Sailboat

 Key Pin Shackle Long D Shackle Stainless Steel

 Key Pin D Shackle with Bar Stainless Steel

 Oversized Bolt Type Pin Bow Shackle Precision Cast US Type Stainless Steel

 Oversized Screw Pin Anchor Shackle Precision Cast US Type Stainless Steel

 Strip D Shackle with Flat Pin Stainless Steel

Stainless Turnbuckle 

Stainless Eye Bolts & Nuts 

Stainless Thimbles 

Stainless Rings 

Stainless Swivels 

Stainless Quick Link 

Stainless Wire Clips 

Stainless Hooks & Clips 

Stainless Terminals 

Stainless U Bolts 

Stainless Hinge 

Stainless Pulleys 

Drop Forged Stainless Products 

Stainless Chains 

Eye Plate, Eye Straps, Angles 

Boat Fittings

 

Pole Line Hardware

 

Specifications of Oversized Bolt Type Pin Bow Shackle Precision Cast US Type Stainless Steel


Part No.	D (size:)	A	L	R	D1 (Pin Dia.	Min.BL (Lbs)
LGSSBSBTPUSC05	3/16"	3/8"	1,00"	0,60"	1/4"	2600
LGSSBSBTPUSC06	1/4"	15/32"	1,22"	0,78"	5/16"	3520
LGSSBSBTPUSC08	5/16"	1/2"	1,44"	0,84"	3/8"	5200
LGSSBSBTPUSC10	3/8"	5/8"	1,66"	1,03"	7/16"	6000
LGSSBSBTPUSC11	7/16"	3/4"	1,88"	1,16"	1/2"	8000
LGSSBSBTPUSC13	1/2"	7/8"	2,19"	131	5/8"	12000
LGSSBSBTPUSC16	5/8"	1.1/16"	2,69"	1,69"	3/4"	16000
LGSSBSBTPUSC20	3/4"	1.3/16"	3,31"	2,00"	7/8"	24000
LGSSBSBTPUSC22	7/8"	1.1/2"	3,94"	2,28"	1"	32000
LGSSBSBTPUSC25	1"	1.5/8"	4,31"	2,69"	1.1/8"	40000
LGSSBSBTPUSC32	1-1/4"	2.1/8"	5,28"	3,25"	1.5/16"	56000

Informations of Oversized Bolt Type Pin Bow Shackle Precision Cast US Type Stainless Steel


Brand	LG RIGGING®
Material	Stainless steel 304 or 316 Anchor shackle
Technical Notes	Stainless steel Bow shackle conform to US Type
Pin	Safety Pin, aka Bolt Type Pin
Processing	Precision Cast
Finish	Highly Polishing / Electrophoretic Coating
Size	3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/8", 1", 1.1/4"
