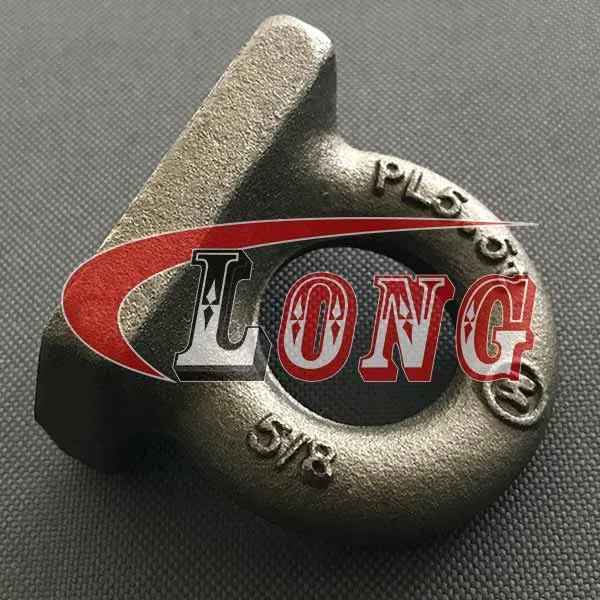

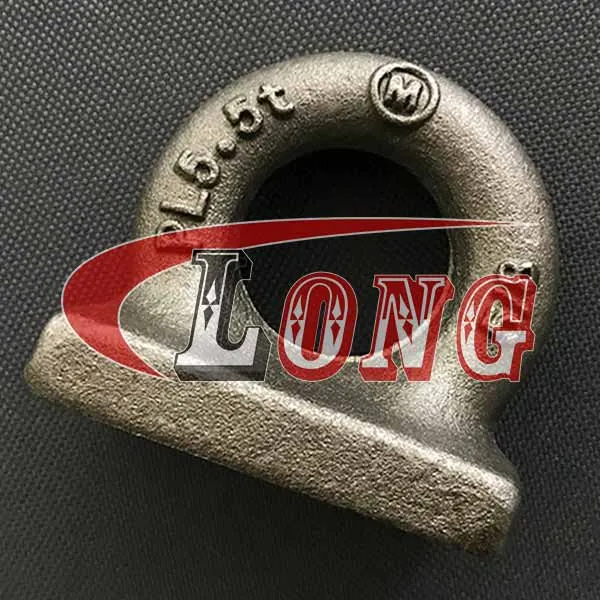

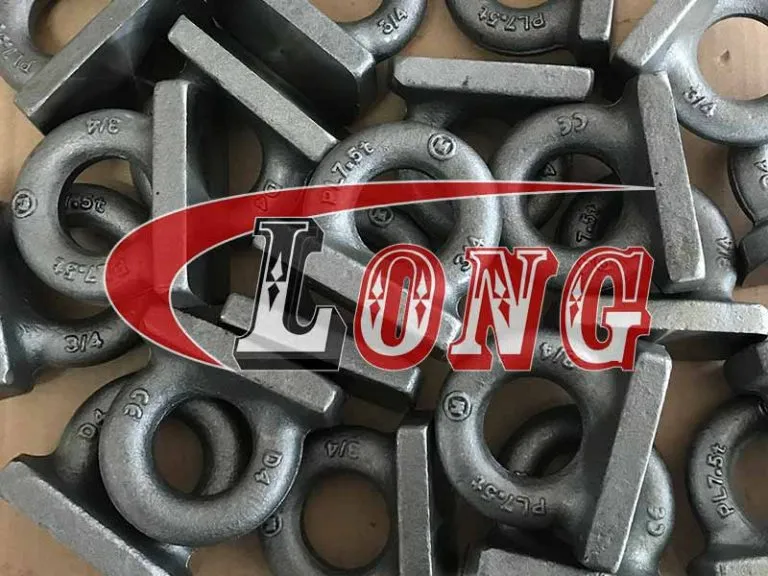

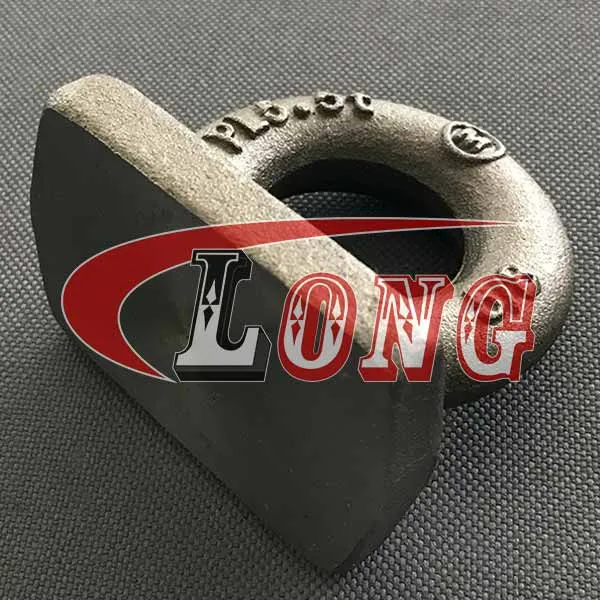

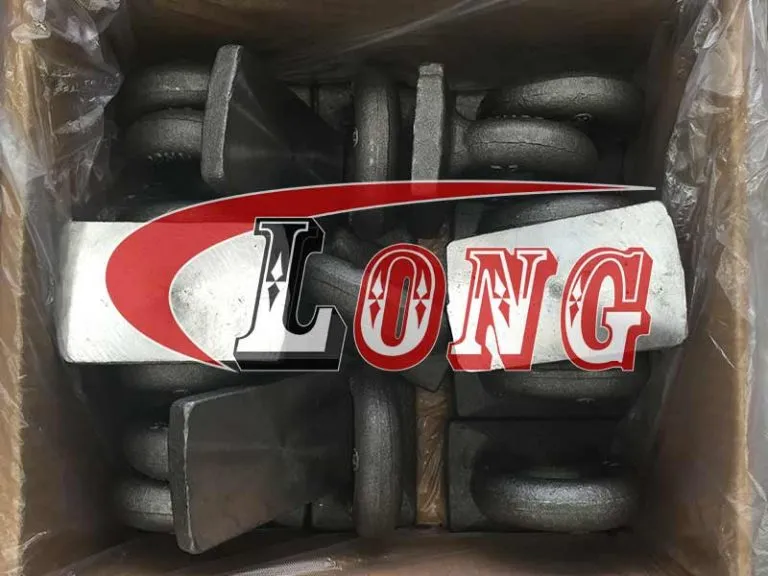

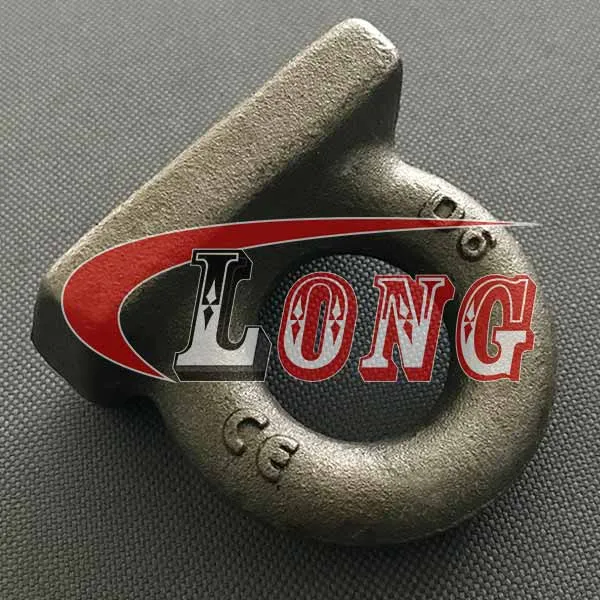

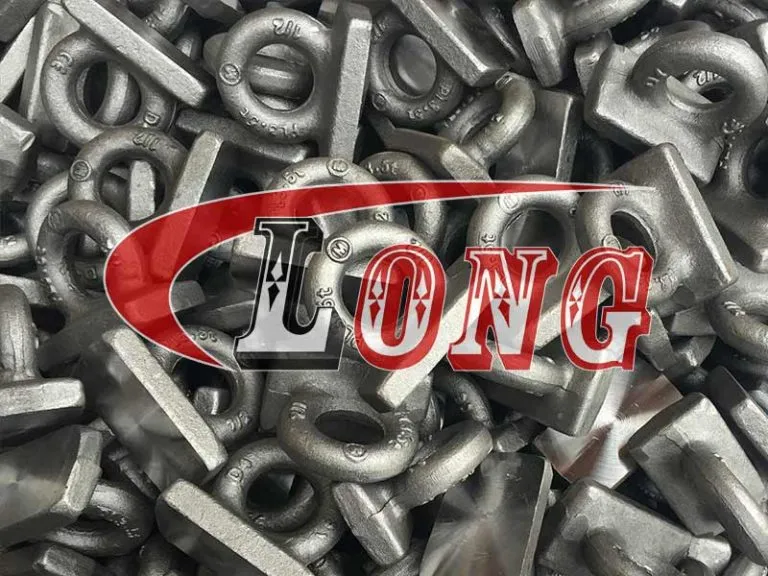

Name: LGRIG® Rectangular Base Deck Eye Plates
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Lifting & Rigging

 

G100 Products 

G80 Products 

Turnbuckles 

Shackles 

Eye Bolts & Nuts 

 LGRIG® Collared Eyebolt BS 4278 Table 1 Metric

 LGRIG® Fork Head Clevis Joint DIN71752

 LGRIG® DIN580 Eye Bolt Galvanized

 LGRIG® DIN 582 Lifting Eye Nut

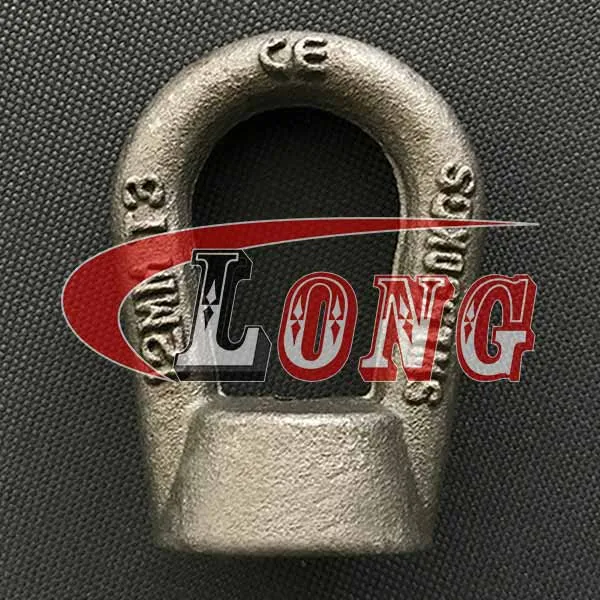

 LGRIG® Bow Nuts B.S. 3974 Metric Coarse & BSW Thread

 LGRIG® Long Shank Metric Collared Eye bolt BS4278 Table-1

 LGRIG® Collared Eyebolt With Oval Link Metric BS 4278 Table 2

 LGRIG® Dynamo Eyebolt with Enlarged Eye BS 4278 Table 3 Metric

 LGRIG® Long Shank Metric Dynamo Eyebolts to BS 4278 Table 3

 LGRIG® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

 LGRIG® JIS B 1169 Forged Eye Nut

 LGRIG® Forged Shoulder Machinery Eye Bolt LGS-279/LGM-279

 LGRIG® Forged Screw Eye Bolts LG-275

 LGRIG® Forged Shoulder Nut Eye Bolts LG-277

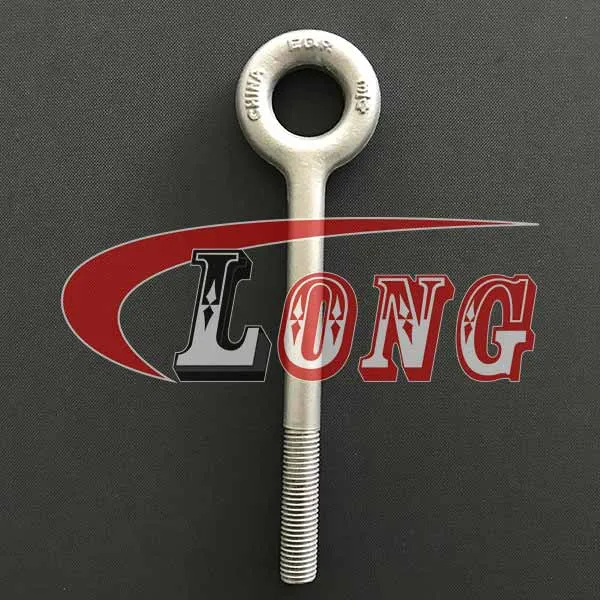

 LGRIG® Regular Nut Eye Bolts LG-291

 LGRIG® G-400 Eye Nut Galvanized UNC Threaded

 LGRIG® Rectangular Base Deck Eye Plates

 LGRIG® DIN 444 Swing Eye Bolt

 LGRIG® Wood Lag Screw w/Ring Thread Ring Bolt

 LGRIG® Welded Eye Bolt Wire Turned with Lock nut

 LGRIG® Unwelded Eye Bolt Wire Turned

 LGRIG® Lag Screw Eye Bolts Welded

Rigging Hooks 

Swivels 

Forged Rings & Connector 

Quick Links 

Snap Hooks 

Wire Rope 

Wire Rope Thimbles 

Wire Ropes Clips & Grips 

Wire Rope Sleeves/Ferrules 

Chains & Accessories 

Chain Binders 

Ratchet Straps 

Lifting Sling of Lifting & Rigging 

Lever Hoist 

Pulley & Blocks 

Lifting & Rigging Pins 

Forestry Logging Supplies 

Eye Plate 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

Information of LGRIG® Rectangular Base Deck Eye Plates

Brand	LGRIG®
Standard	BS Standard
Material	High Tensile Steel C1045
Processing	Forged / Quenched and Tempered.
Finish	Self-colour finish
Size	3/8″ (10mm) , 1/2″ (12.5mm) , 5/8″ (16mm) , 3/4″ (19mm) , 7/8″ (22mm) , 1″ (25mm) 1.1/8″ (28mm) , 1.1/4″ (32mm) , 1.1/2″ (38mm) , 1.3/4″ (44mm) , 2″ (50mm)
Note	Marked with CE, size, and proof load. This product has a proof load applied, however the working load limit is subject to the correct welding procedure being carried out.
Country of Origin	China

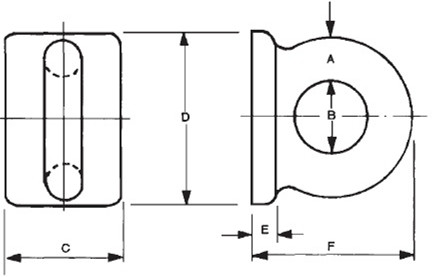

Specifications of LGRIG® Rectangular Base Deck Eye Plates

Part No.	A	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Proof Load	Weight
Part No.	A	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	(tonnes)	(kgs)
LGRBDP10	3/8″ (10mm)	20	25	45	6	38	2	0.14
LGRBDP12.5	1/2″ (12.5mm)	25	35	60	8	50	3.5	0.31
LGRBDP16	5/8″ (16mm)	32	45	70	10	64	5.5	0.45
LGRBDP19	3/4″ (19mm)	338	50	85	12	76	7.5	0.79
LGRBDP22	7/8″ (22mm)	44	61	102	12	88	9.6	1.36
LGRBDP25	1″ (25mm)	50	70	115	16	100	13	1.82
LGRBDP28	1.1/8″ (28mm)	56	76	130	18	114	15.75	2.95
LGRBDP32	1.1/4″ (32mm)	64	85	145	19	128	20	3.86
LGRBDP38	1.1/2″ (38mm)	76	100	170	22	152	29	6.58
LGRBDP44	1.3/4″ (44mm)	89	121	200	27	178	39	18
LGRBDP50	2″ (50mm)	102	137	229	30	203	50	25
