Information of Regular Link Proof Coil Chain Australian Standard

Technical Notes	Chain Conform to Australian Standard
Material	Low grade carbon steel
Processing	Welded
Finish	Hot Dipped Galvanised, Electro Galvanised and Self Colored
Size	3mm,4mm,5mm,6mm,8mm,10mm,12mm,13mm,16mm,20mm,24mm
Tips	Proof tested to at least twice the maximum static load indicated.

Specifications of Regular Link Proof Coil Chain Australian Standard

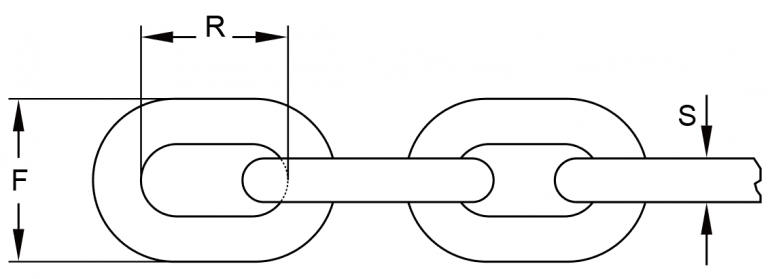

Part No.	CHAIN SIZE	WORKING LOAD	LINK DIMENSION			LINKS PER M	LENGTH PER 100KG
	CHAIN SIZE	WORKING LOAD	S	R	F	LINKS PER M	B.F.	H.D.G.
	MM	MT	MM	MM	MM	PC	M	M
LGCASR03	3	0.06	3.15	15.7	13.1	63.8	511	498
LGCASR04	4	0.11	4	18.6	16	53.9	320	305
LGCASR05	5	0.19	5	22	19.4	45.4	203	193
LGCASR06	6	0.32	6.3	26.1	23.5	37.8	129	120
LGCASR08	8	0.53	8	32.2	29.5	31	77.8	74.1
LGCASR10	10	0.83	10	39.1	36.2	25	48.5	47.1
LGCASR12	12	1.35	12	46	44	21.7	34	33.3
LGCASR13	13	1.5	13	49.1	46.1	20.3	29.7	27.7
LGCASR16	16	2.31	16	59.6	56.5	16.8	20.2	18.2
LGCASR20	20	3.67	20	73.3	70	13.6	12.3	11.6
LGCASR24	24	5.31	24	87	83.6	11.5	8.5	8.04
